CES700M2N2S5 DOOR

CES700M2N2S5 DOOR

Written by

in

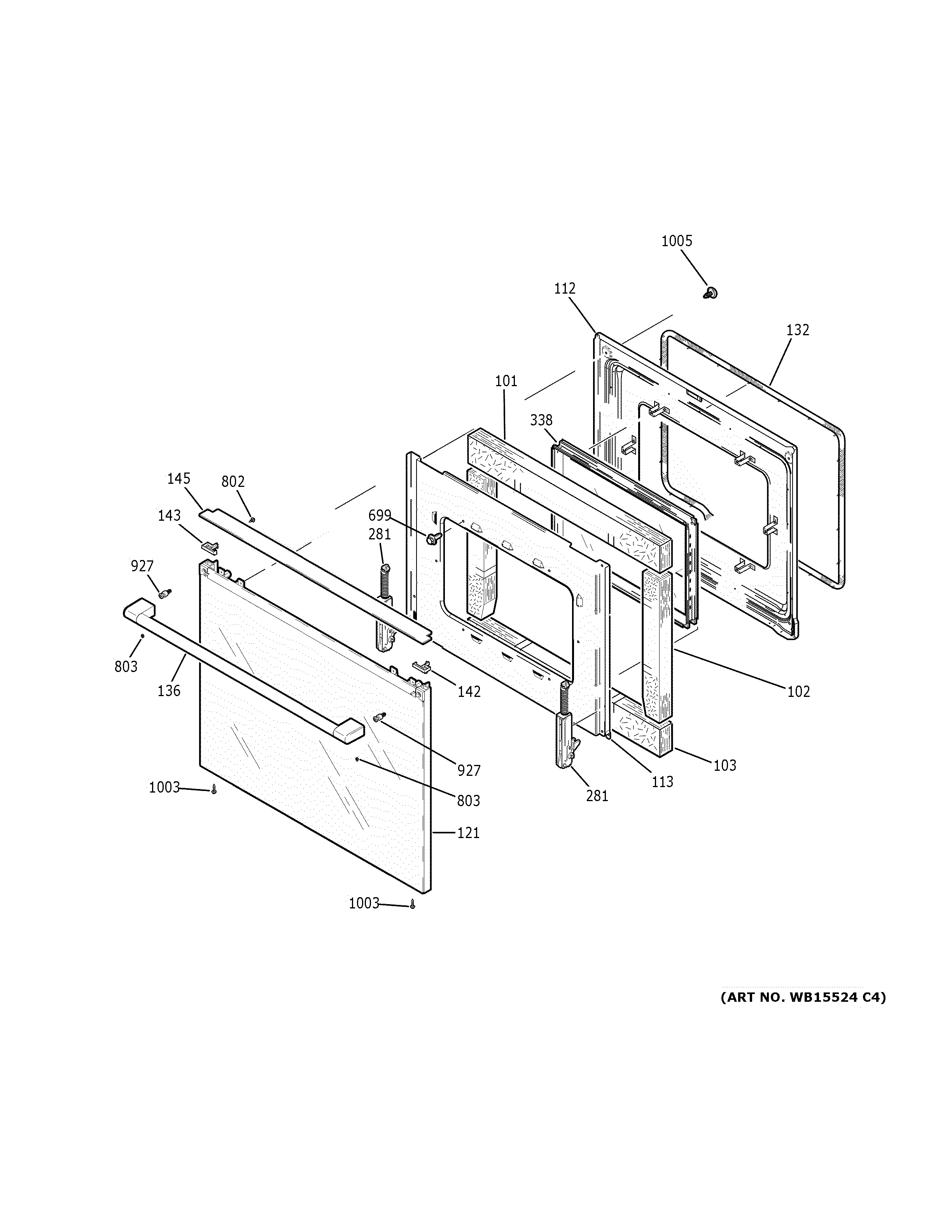

CES700M2N2S5 DOOR

Products

PositionProduct
101WB35T10134 GE Oven Door Insulation
102WB35T10135 GE Oven Door Insulation
103WB35T10255 GE Oven Insulation Door
112WB55T10203 GE Oven Door Liner Assembly (Black)
113WB56T10178 GE Oven Door Insulation Retainer
121STAINLESS STEEL OUTER DOOR ASM
132WB35X30048 GE Oven Door Gasket
136WB15X32948 GE Oven Stainless Steel Handle
142DOOR SPACER
143DOOR SPACER
145DOOR TRIM
281GEN WB10T10072
338WB56X22160 GE Stove Inner Door Glass Assembly
699WB1M1 GE Oven Screw
802SCREW 8-32 TT HXW 1/2 S BK
803WR01X11014 GE Refrigerator Set Screw
927MOUNTING STUD
1003WZ4X245D GE Screw Package
1005WB01T10008 GE Oven Screw 10-32
