CES700P3M4D1 CONTROL PANEL & COOKTOP

CES700P3M4D1 CONTROL PANEL & COOKTOP

Written by

in

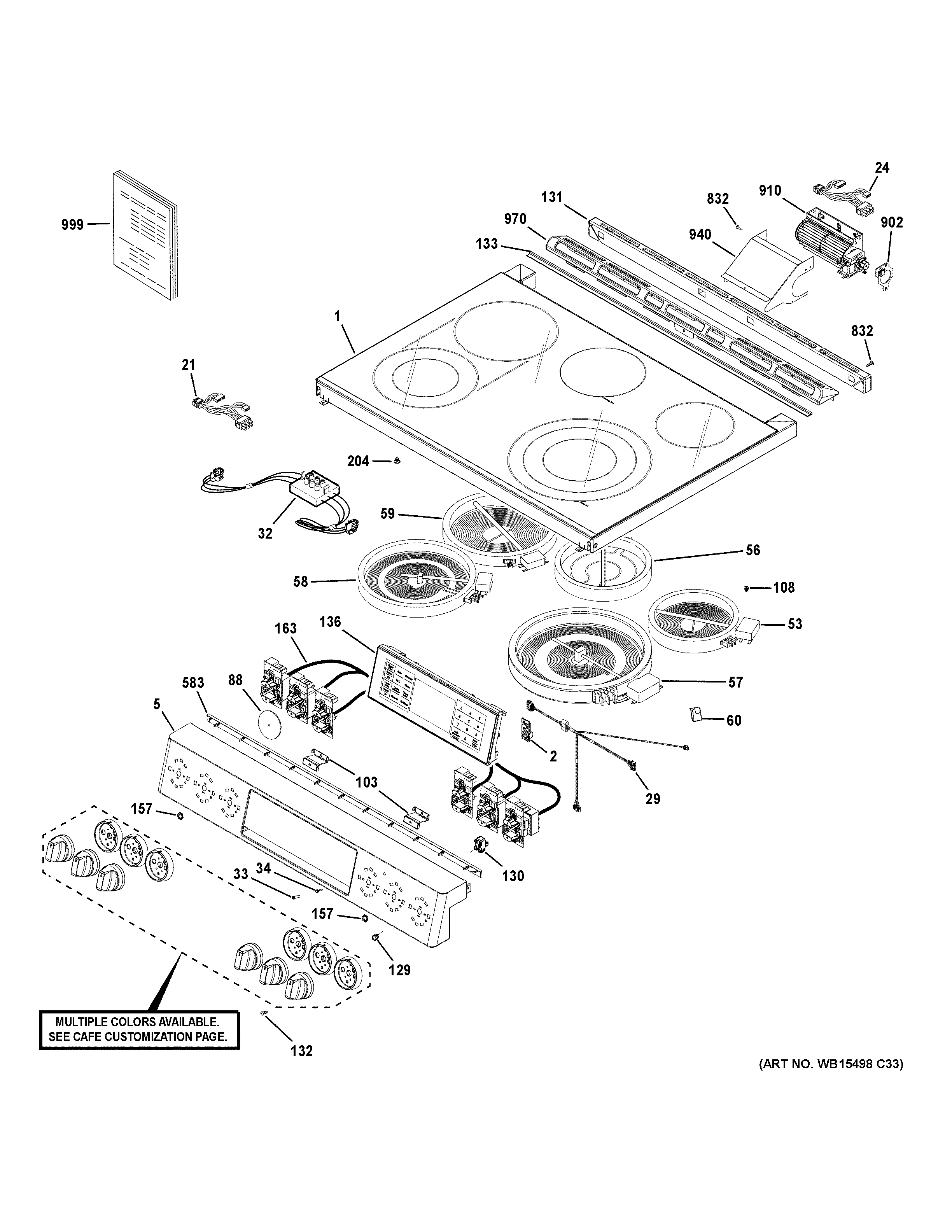

CES700P3M4D1 CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62X31946 GE Range Top Glass Assembly
2WB27X46666 GE Oven Wi-Fi/Bluetooth Board with Instructions
5WB36X31625 GE Manifold Panel Dark Slate
21HARNESS INTERFACE
24WB18X31604 GE Oven Blower Harness
29WB18X41891 GE Wire Jumper Harness
32WB18X31603 GE Cooktop Harness
33WB02X28779 GE Hot Surface Indicator
34WB25X28917 GE Indicator Sleeve Assembly
53WB30T10145 GE Oven Radiant Surface Element
56WB30X20871 GE Oven Radiant 6" Warmer Element
57WB30T10155 GE Oven Halogen Burner Assembly
58WB30T10135 GE Oven Dual Halogen Element
59WB30X26465 GE Oven 8" Halogen Element
60WB09X40389 GE Radiant Element Spring
88SEAL VALVE
103WB34X28908 GE Oven Bracket
108SCREW
129WB02X31747 GE Lens
130WB25K10010 GE Oven Light Indicator Pilot
131WB07X28825 GE Oven Trim Kit
132WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
133WB35X41087 GE Spill Gasket
136GLASS & TOUCH BOARD ASM
157WB02X28860 GE Nut
163WB24X31698 GE Oven Switch Assembly
204WB01X26995 GE Oven Screw 8-18 AB X 5/16
583WB35X28743 GE Oven Range Front Gasket Assembly
832WB1K5062 GE Oven Screw
902WB27X28659 GE Oven Sensor Board
910WB26X35086 GE Blower Tangential
940WB34X28735 GE Oven Fan Support
970WB07X31938 GE Vent Trim
999PM INSTALL INSTRUCTIONS
999PM WI FI INSTRUCTIONS
999PM MINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PM QUICK OWNERS MANUAL
