CES750M2N2S5 UPPER DOOR

CES750M2N2S5 UPPER DOOR

Written by

in

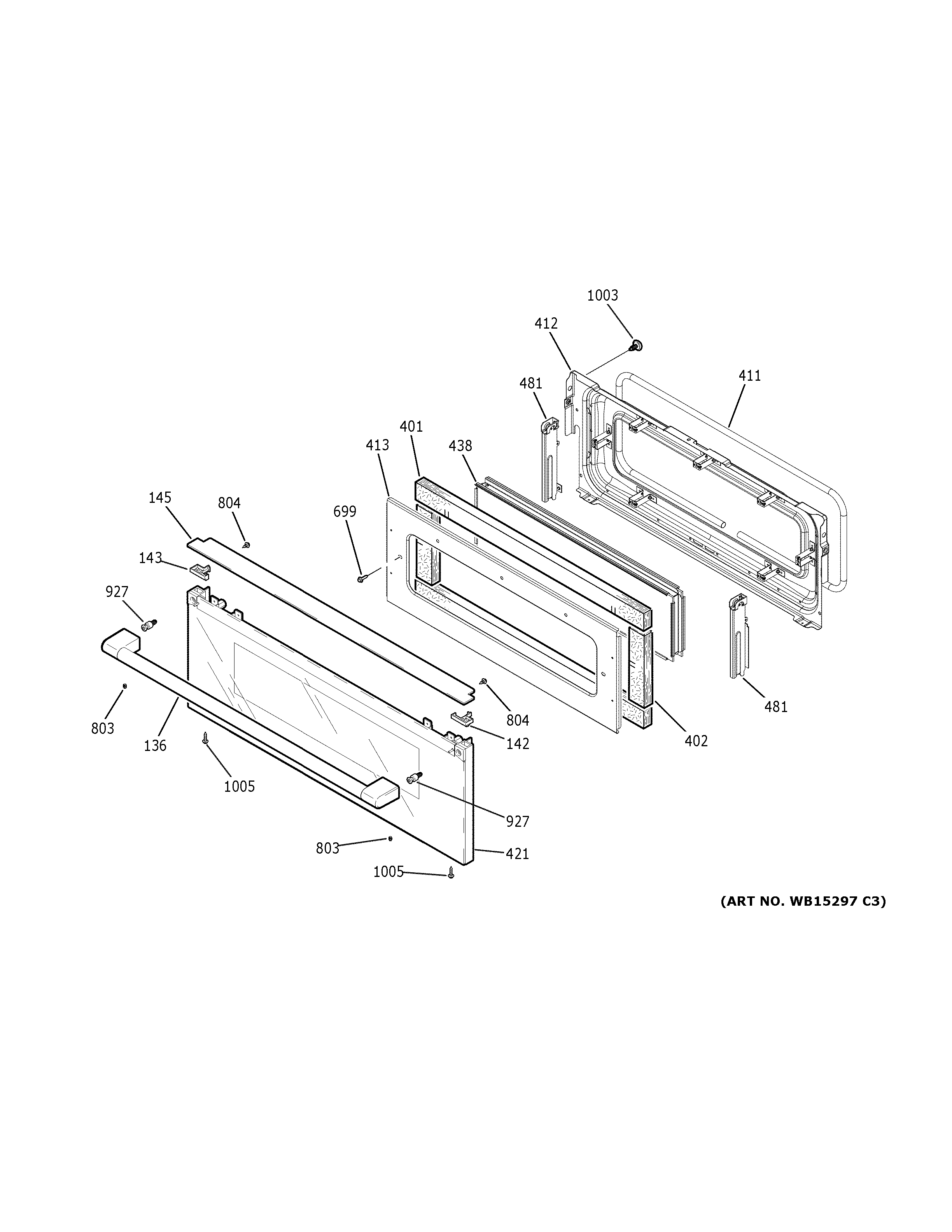

CES750M2N2S5 UPPER DOOR

Products

PositionProduct
136WB15X32948 GE Oven Stainless Steel Handle
142DOOR SPACER
143DOOR SPACER
145DOOR TRIM
401WB35X30050 GE Oven Door Insulation
402OVEN DOOR INSULATION SIDE
411WB04T10077 GE Range Oven Door Gasket
412WB63X20854 GE Oven Door Liner Assembly
413WB56T10318 GE Oven Insulation Retainer
421WB56X33034 GE Stainless Steel Upper Outer Door
438WB56T10244 GE Oven Upper Window Pack Assembly
481WB10T10101 GE Oven Upper Receiver Hinge
481WB10T10100 GE Oven Right-Hand Hinge Receiver
699WB1M1 GE Oven Screw
803GEN WB01T10125
804SCREW 8-32 TT HXW 1/2 S BK
927MOUNTING STUD
1003WB01T10008 GE Oven Screw 10-32
1005WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
