CES750M2N2S5 UPPER OVEN

CES750M2N2S5 UPPER OVEN

Written by

in

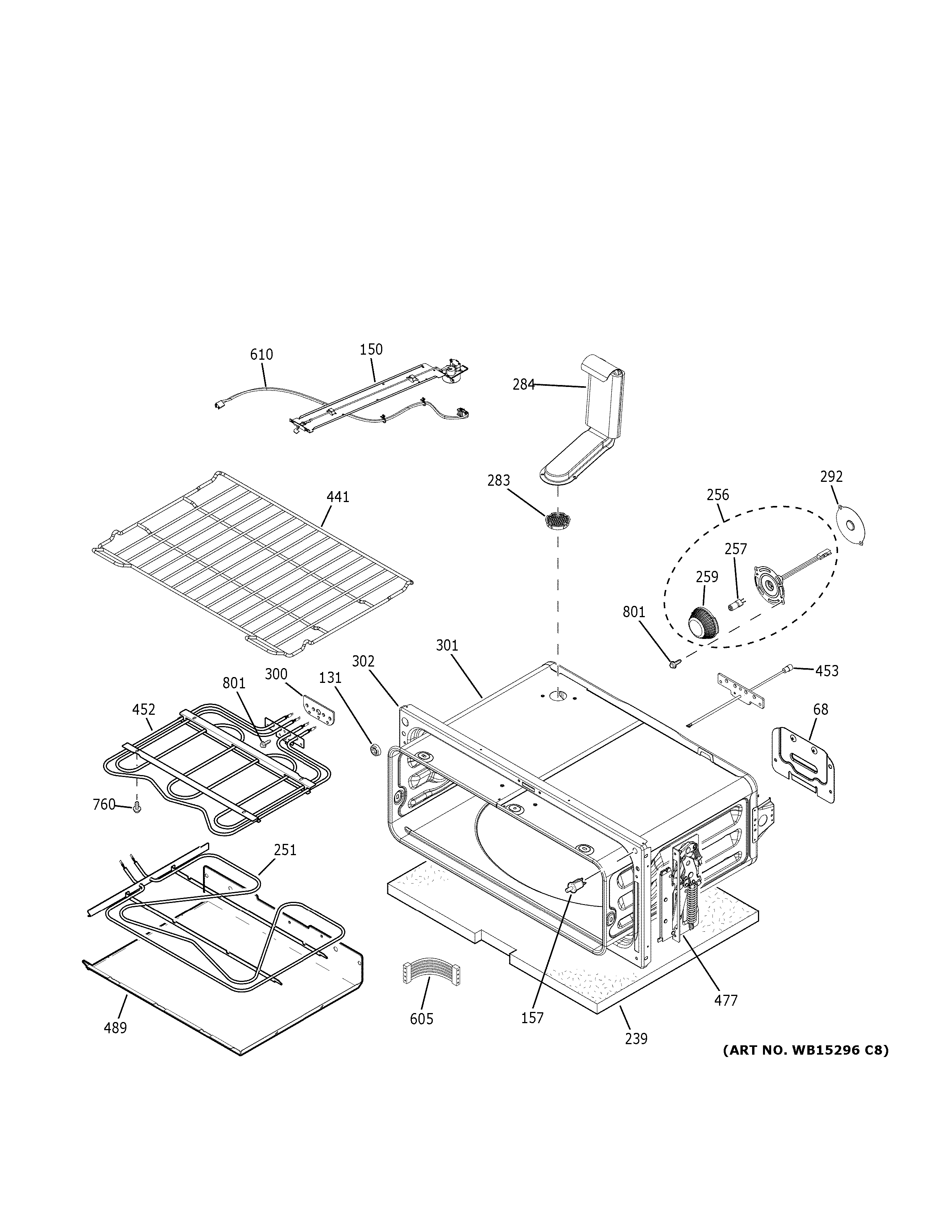

CES750M2N2S5 UPPER OVEN

Products

PositionProduct
68WB34X20970 GE Plate Cover Assembly (Black)
131WB01T10022 GE Oven Door Bumper
150WB10X29243 GE Oven Latch Assembly
157WB24T10147 GE Oven SPDT Light Switch
239WB35T10235 GE Middle Insulation
251WB44T10082 GE Oven Bake Element
256WB25X40248 GE Assembly Halogen Lamp
257WB08T10045 GE Oven G9 Halogen Lamp
259OV LAMP LENS LWR
283WB38T10033 GE Oven Smoke Eliminator
284UPPER VENT TUBE ASM
292WB34X20009 GE Cover Hole Assembly (Black)
300BROIL ELEMENT GASKET
301WRAPPER OVN CAV ASM
302WB63X20010 GE Front Upper Frame (Black)
441WB48T10042 GE Oven Rack
452WB44X45488 GE Broil Shield
453WB23T10015 GE Oven Sensor Probe
477WB10K10030 GE Hinge Assembly
477WB10K10031 GE Oven Hinge Assembly
489PAN REFLECTOR
605WB18X47026 GE Hidden Bake Wire Harness
610WB18X29526 GE Plunger Switch Wire Harness
760WB1X536 GE Oven Screw
801WB01M10002 GE Oven Screw
