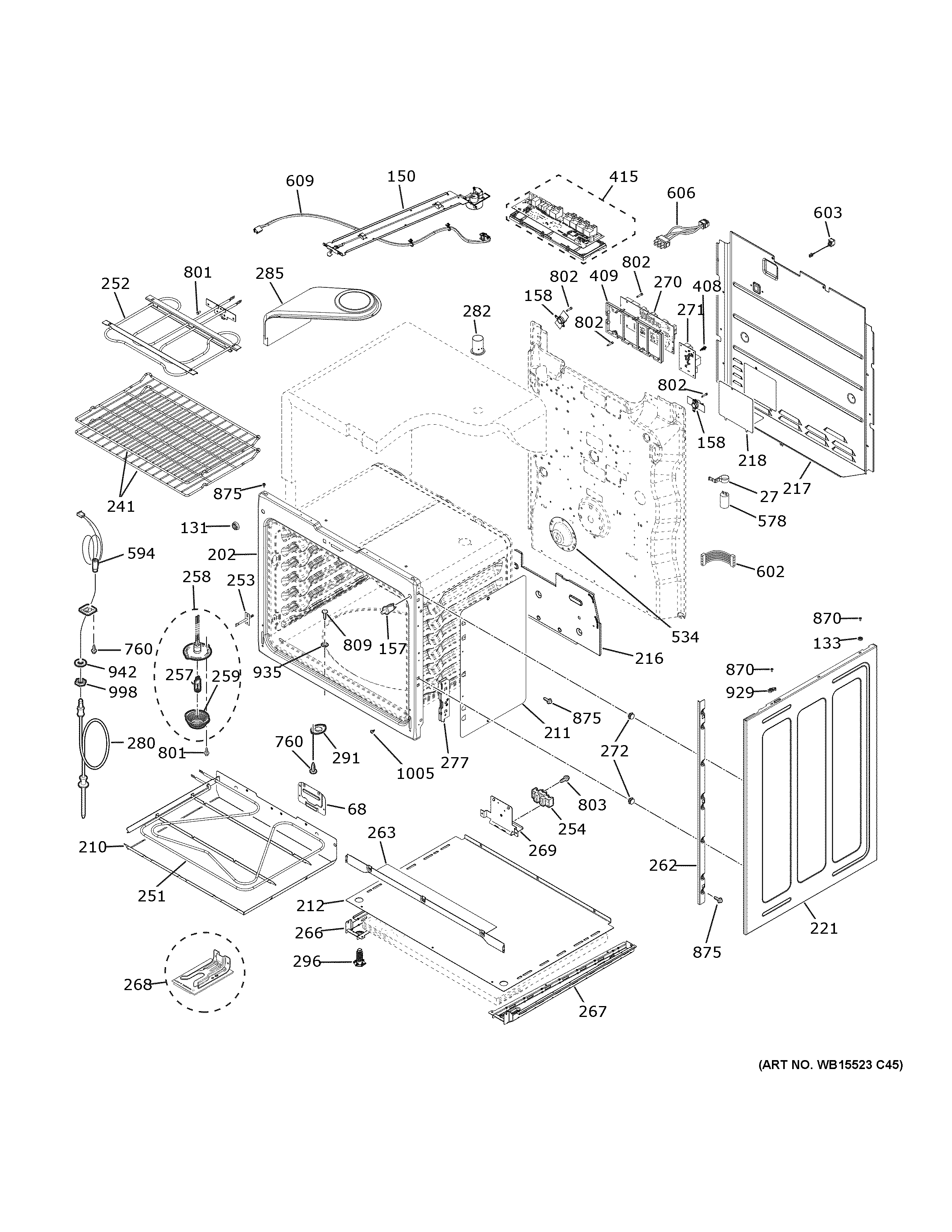

CES750M2N3S5 LOWER OVEN

CES750M2N3S5 LOWER OVEN

Written by

in

CES750M2N3S5 LOWER OVEN

Products

PositionProduct
27BRACKET CAPACITIOR
68WB34X20970 GE Plate Cover Assembly (Black)
131WB01T10022 GE Oven Door Bumper
133WB02X29562 GE Range Top Bumper
150WB10X29243 GE Oven Latch Assembly
157WB24T10147 GE Oven SPDT Light Switch
158WB21K10127 GE Oven High Limit Switch
202FRAME FRONT LWR (BK)
210WB49T10071 GE Oven Reflector Pan
211WB34X29158 GE Side Insulation Retainer
212BASE DUAL CAVITY
216WB02X20855 GE Washer Rear Heat Shield
217MAIN WIRE COVER
218WB02T10564 GE Oven Terminal Block Cover
221WB63X28679 GE Oven Side Panel
241WB48T10059 GE Oven Rack
251WB44T10082 GE Oven Bake Element
252WB44X29240 GE Broil Element Assembly
253WB21X22134 GE Oven Sensor Assembly
254WB17X38438 GE Terminal Block Assembly
257WB08T10045 GE Oven G9 Halogen Lamp
258WB25X24909 GE Oven Halogen Lamp Assembly
259OV LAMP LENS LWR
262GEN WB07T10621
263COVER FRONT
266WB02T10353 GE Oven Base Rail
267WB02T10352 GE Oven Base Rail
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
269WB02T10542 GE Strain Relief Bracket
270WB27X29202 GE Oven Control Relay Board
271WB27X29201 GE Oven Relay Board Daughter
272WB02T10034 GE Oven Body Side Support
277HINGE RECEIVER
280WB20T10024 GE Oven Thermistor Probe
282WB38X33648 GE Vent Tube
285LOWER VENT TUBE ASM
291WB02T10487 GE Hole Cover
296WB02X10521 GE Oven Leveling Leg
408WB02T10477 GE Standoff PCB
409WB02X30450 GE Machine Control Frame
415CONTROL BOARD RC17 (FLASHED)
534WB02X20947 GE Oven Cavity Support
578WB27T10662 GE Oven Capacitor
594WB18X25985 GE Meat Probe with Harness Receiver
602WB18X32741 GE Jumper Harness for Wire
603WB18X29523 GE RJ45 Connector Harness
606WB18X32742 GE Temperature Sensor Harness
609WB18X29530 GE Plunger Switch Harness Wire
760WB1X536 GE Oven Screw
801WB01M10002 GE Oven Screw
802SCREW 8-18 AB SKT25 7/8
803GEN WB01T10125
809SCR 10-16 AB TRT20 1/2 N
870WB1X5904 GE Oven Screw 8-18 BA
875WH2X930 GE Screw
929WB02T10026 GE Oven Strike Maintop
935WB1K5046 GE Oven Washer
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
1005WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
