CES750P3M1D1 LOWER OVEN

CES750P3M1D1 LOWER OVEN

Written by

in

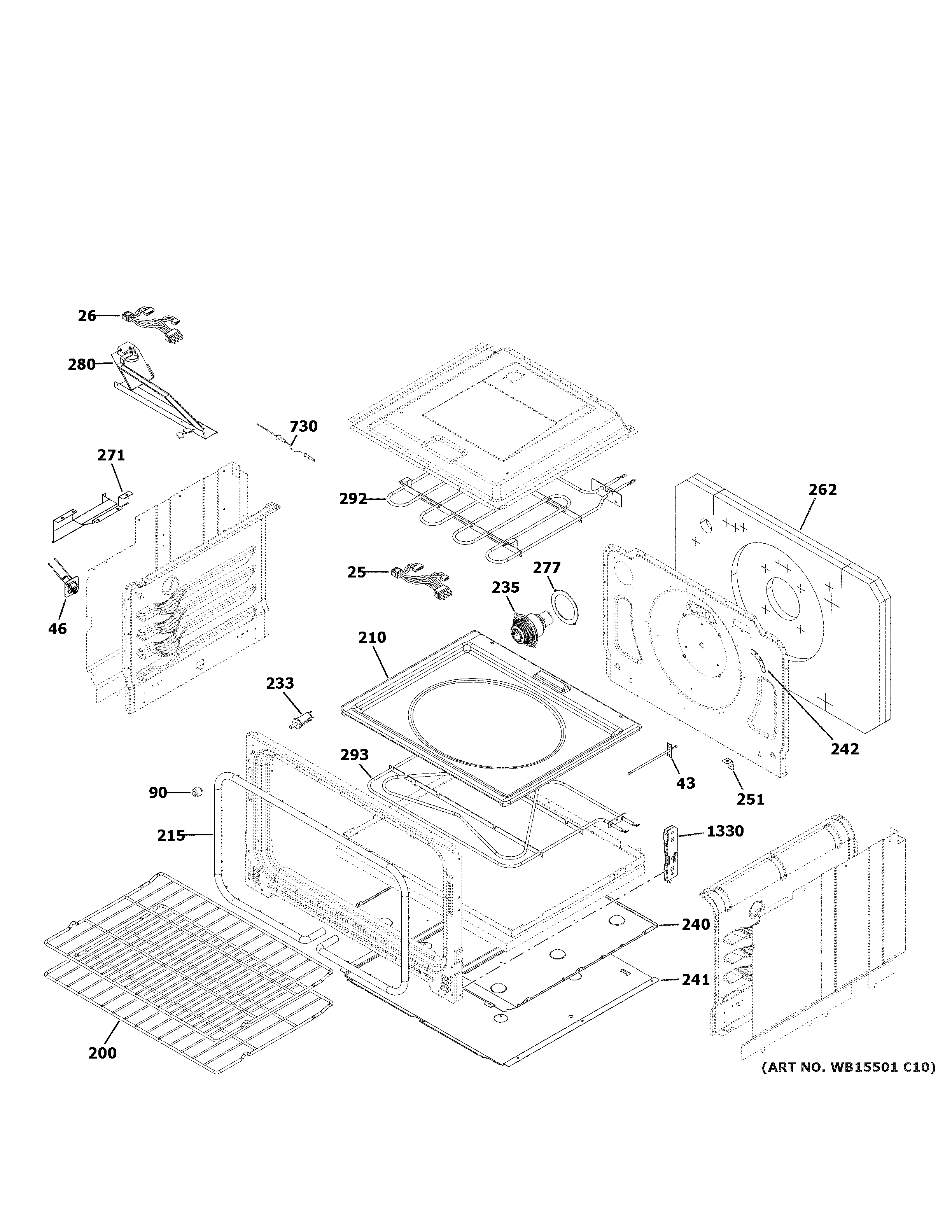

CES750P3M1D1 LOWER OVEN

Products

PositionProduct
25HARNESS BAKE
26WB18X31621 GE Harness Latch
43SENSOR ASM
46WB34K10134 GE Oven Receptacle Assembly
90WB02X28738 GE Oven Front Frame Bumper
200WB48X21508 GE Oven Rack
210WB63X28661 GE Bottom Oven
215WB32X29538 GE Oven Gasket Assembly
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
240WB63X28975 GE Bottom Panel
241BOTTOM RANGE DEFLECTOR
242BRACKET OVEN
251WB2K3 GE Angle Support
262WB35X28789 GE Oven Back Insulation
271WB34X21619 GE Latch Cover
277WB32K10044 GE Oven Light Gasket
280WB10X28795 GE Automatic Latch
292WB44X28668 GE Broil Element
293WB30X28763 GE Oven Hidden Bake Element
730WB20T10024 GE Oven Thermistor Probe
1330WB10X28563 GE Oven Receiver Hinge
