CES750P3M1D1 UPPER DOOR

CES750P3M1D1 UPPER DOOR

Written by

in

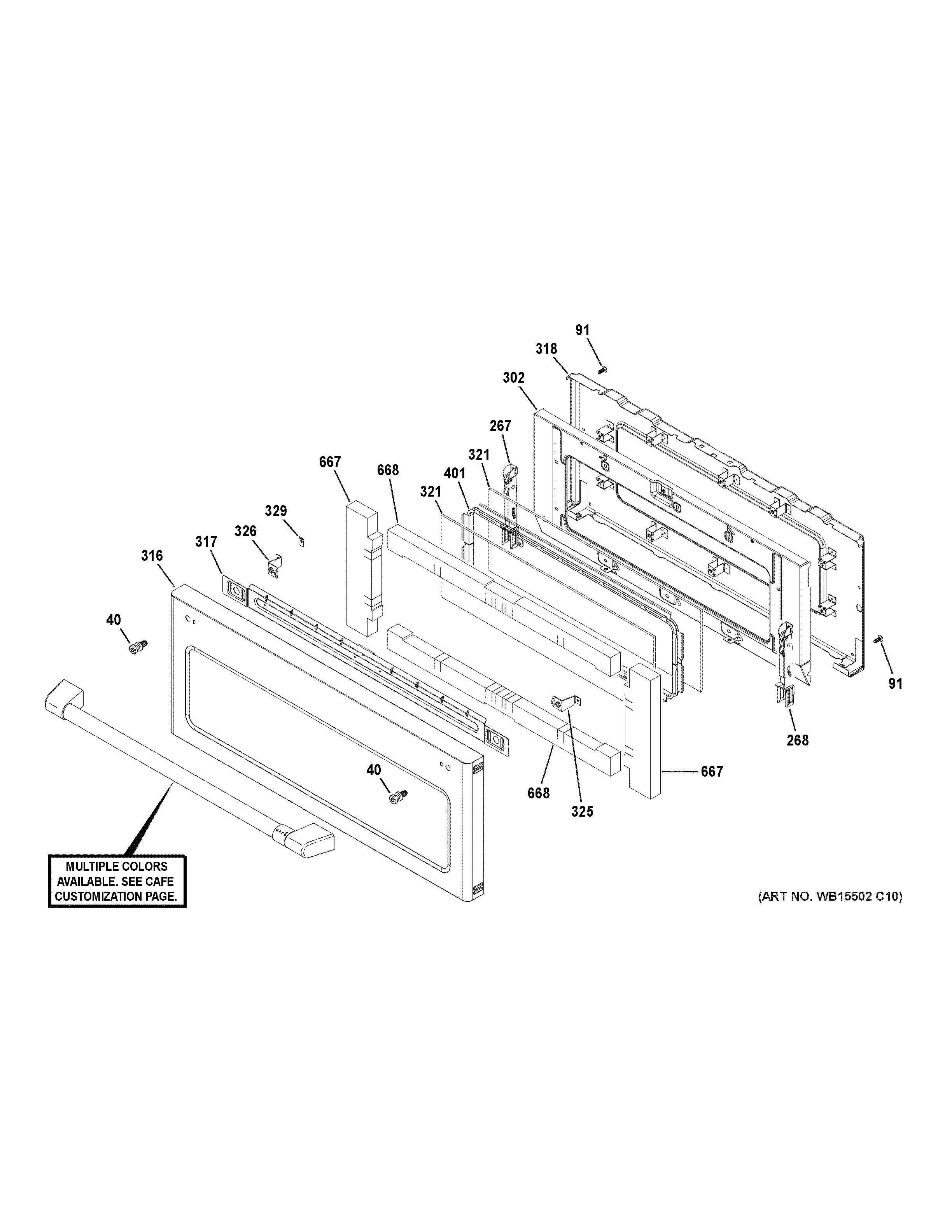

CES750P3M1D1 UPPER DOOR

Products

PositionProduct
40WR01X11007 GE Refrigerator Fastener Door Handle
91WB01T10008 GE Oven Screw 10-32
267WB10X29636 GE Oven Left Hand Hinge Receiver
268WB10X29635 GE Oven Right Hand Receiver Hinge
302WB35X21704 GE Insulation Guard
316WB56X31648 GE Door Panel Glass Dark Slate
317WB34X31702 GE Panel Backer Vent
318WB34X28839 GE Oven Door Liner Assembly
321WB57K10156 GE Oven Crystal Window
325WB34X31734 GE Bracket Fastener UC
326FASTENER BRACKET UC
329WB1K2 GE Oven Speednut
401WB34X28740 GE Window Frame Assembly
667WB34X21729 GE Insulation Door
668WB34X21730 GE Door Insulation
