CES750P4M1W2 CONTROL PANEL & COOKTOP

CES750P4M1W2 CONTROL PANEL & COOKTOP

Written by

in

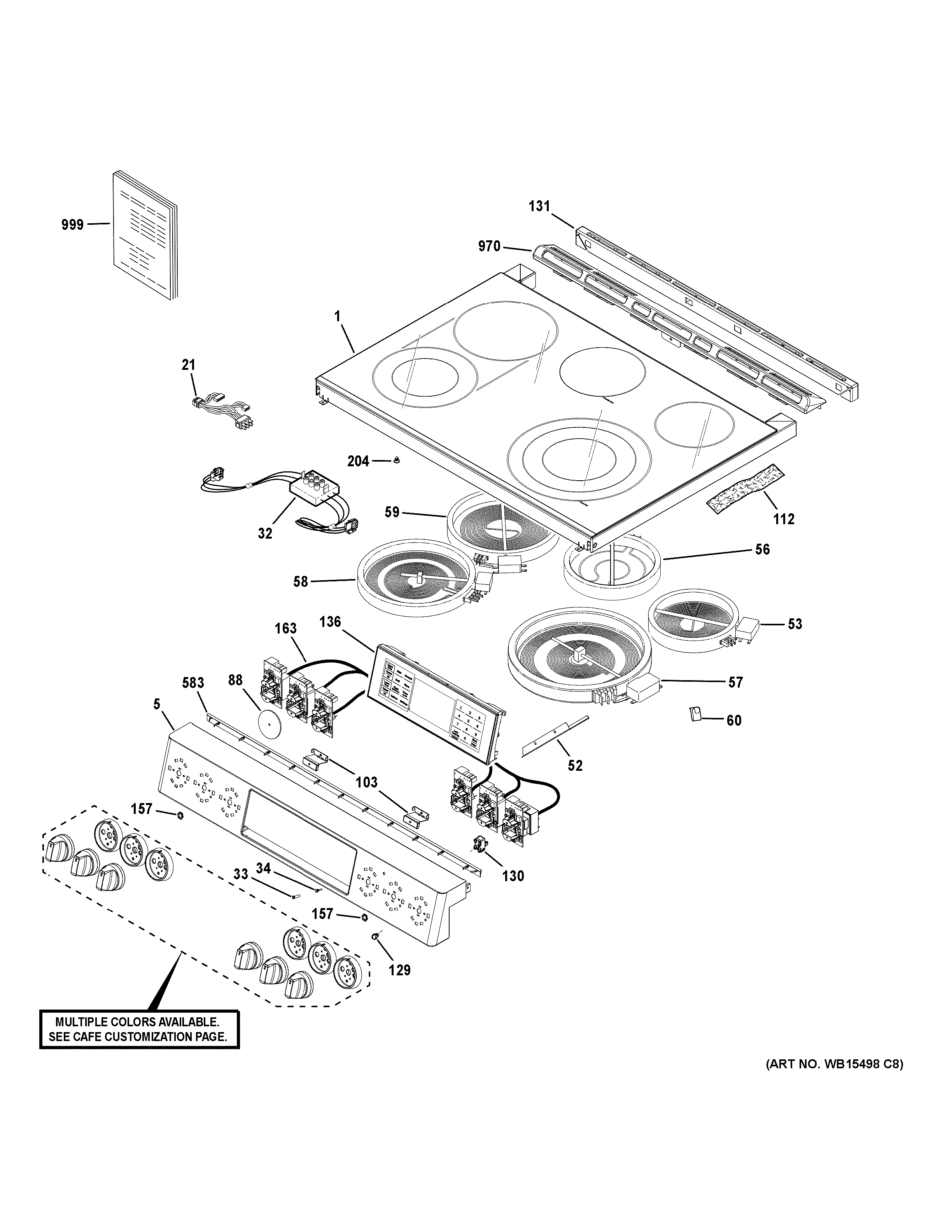

CES750P4M1W2 CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62X31946 GE Range Top Glass Assembly
5WB36X31628 GE Slate White Manifold Panel
21WB18X31619 GE Oven Interface Harness
32WB18X31603 GE Cooktop Harness
33WB02X28779 GE Hot Surface Indicator
34WB25X28917 GE Indicator Sleeve Assembly
52SPILL COVER LAMP
53WB30T10145 GE Oven Radiant Surface Element
56WB30X20871 GE Oven Radiant 6" Warmer Element
57WB30T10155 GE Oven Halogen Burner Assembly
58WB30T10135 GE Oven Dual Halogen Element
59WB30X26465 GE Oven 8" Halogen Element
60WB09X40389 GE Radiant Element Spring
88SEAL VALVE
103WB34X28908 GE Oven Bracket
112FOIL COOKTOP
129WB02X31747 GE Lens
130WB25K10010 GE Oven Light Indicator Pilot
131WB07X28825 GE Oven Trim Kit
136WB27X31709 GE Touch Control Board Assembly
157WB02X28860 GE Nut
163WB24X31698 GE Oven Switch Assembly
204WB01X26995 GE Oven Screw 8-18 AB X 5/16
583WB35X28743 GE Oven Range Front Gasket Assembly
970WB07X31938 GE Vent Trim
999PM INSTALL INSTRUCTIONS
999PM QUICK GUIDE
999PM MANUAL MINI & WD ASM
999PM WI FI INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
