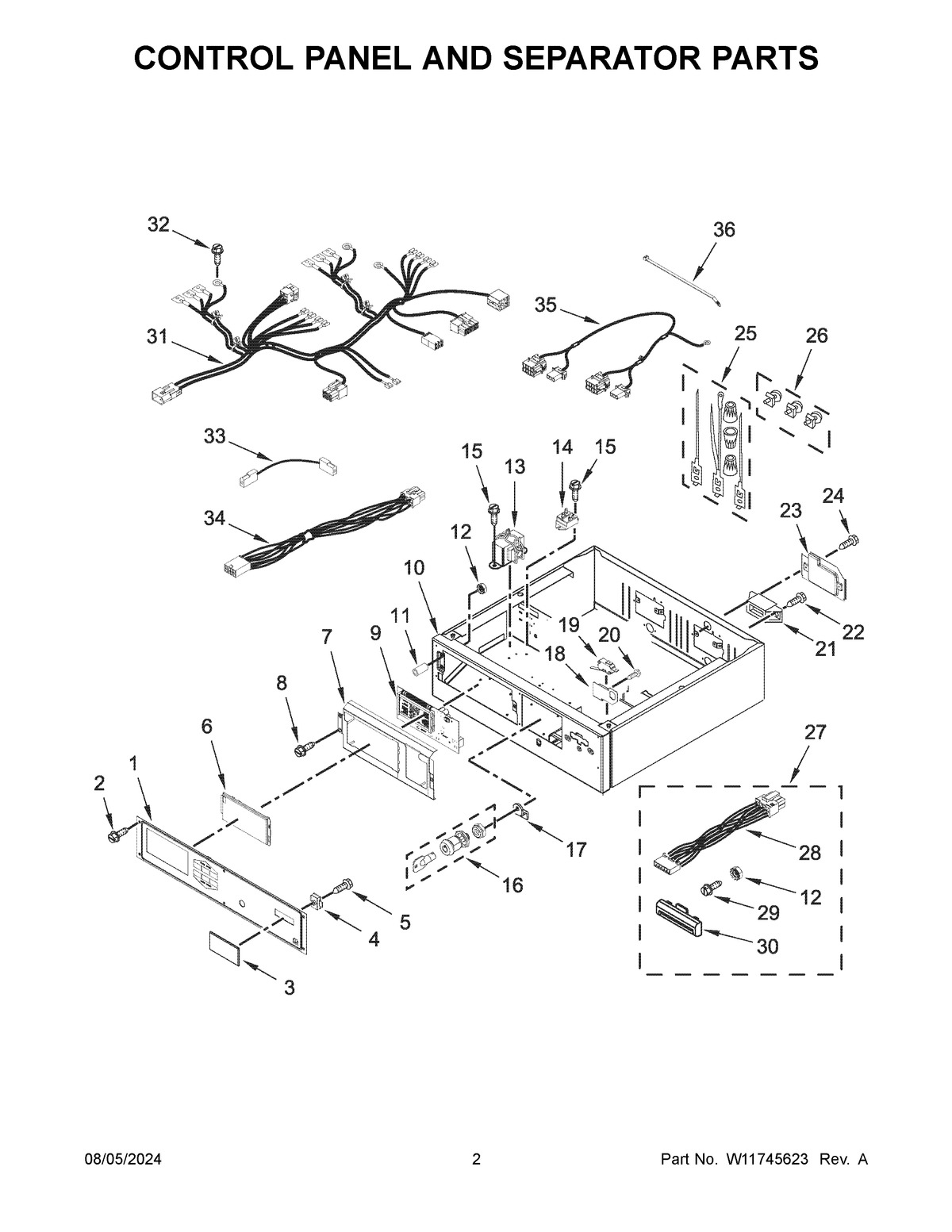

CESP2978JQ0 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

PositionProduct
1FACIA
2WPW10131119 Whirlpool Screw
4W10145157 Whirlpool Clip
53400618 Whirlpool Screw
6WPW10133268 Whirlpool Cover
7PLATE, CONTROL MOUNTING
8W10756178 Whirlpool Screw
9CNTRL-ELEC
10AWP33001882 Whirlpool Screw
10COLLAR NOT ILLUSTRATED
10B3400500 Whirlpool Screw
12WPW10139046 Whirlpool Nut
13WPW10133285 Whirlpool Transformer
14W10827406 Whirlpool Relay Parts
16W11231586 Whirlpool Lock
17W11165684 Whirlpool Cam
18W10160652 Whirlpool Bracket
19WPW10447152 Whirlpool VLT Switch
203400408 Whirlpool Screw
21WP3397659 Whirlpool Terminal Block
22W11676450 Whirlpool Screw
23COVER, TERMINAL BLOCK
24WP90767 Whirlpool Screw
25279318 Whirlpool Terminal
26279393 Whirlpool Terminal Block Screw and Nut Kit
27INSTRUCTIONS, INSTALLATION (CARD READER)
28WPW10239515 Whirlpool Wire Harness
29WPW10143462 Whirlpool Screw
30W10163036 Whirlpool Bezel Assembly
31W10807485 Whirlpool Wire Harness
32W10850756 Whirlpool Screw
33W10769481 Whirlpool Wire
34W10111027 Whirlpool Wire
35JUMPER, LOWER TO COLLAR
36WPW10155270 Whirlpool Wire Tie
