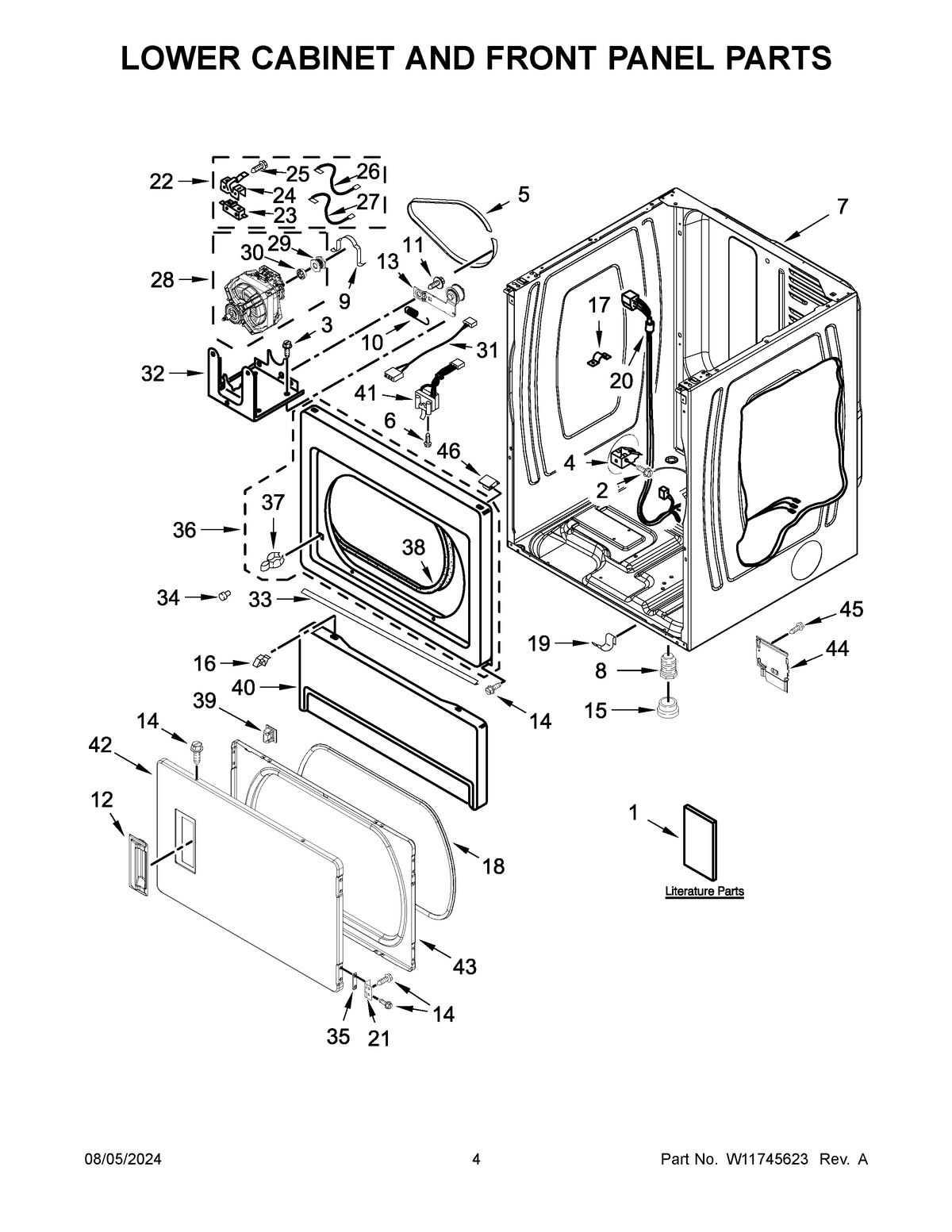

CESP2978JQ0 03 – LOWER CABINET AND FRONT PANEL PARTS

Products

Position	Product
NI	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
1A	TECH SHEET
1B	INSTALLATION INSTRUCTIONS, CARD READER
1	INSTALLATION INSTRUCTIONS
2	681615 Whirlpool Screw
3	SCREW
4	3391846 Whirlpool Clip
5	WPW10131172 Whirlpool Belt
6	WP3395530 Whirlpool Screw
7	W11417441 Whirlpool Cabinet
8	49621 Whirlpool Leveling Feet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	W11209427 Whirlpool Handle
13	WPW10344193 Whirlpool Idler Pulley
14	WP488627 Whirlpool Refrigerator Screw
15	BOOT, FOOT
16	WP3388229 Whirlpool Dryer Spring Clip
17	8528351 Whirlpool Clip
18	WP3390735 Whirlpool Door Seal
19	WPW10291934 Whirlpool Clip
20	W10807486 Whirlpool Wire Harness
21	WPW10279703 Whirlpool Hinge Assembly
23	279782 Whirlpool Lid Switch
24	WP8066120 Whirlpool Lever Assembly
25	WP98129 Whirlpool Screw
26	W10167612 Whirlpool Wire
27	3398948 Whirlpool Wire
28	W10841144 Whirlpool Drive Motor
29	WP8066184 Whirlpool Dryer Motor Pulley
30	WP3393657 Whirlpool Belt Retainer
31	8283298 Whirlpool Wire Harness
32	WP3387118 Whirlpool Base Assembly
33	SEAL, DEFLECTOR
34	693152 Whirlpool Bumper
35	W10191265 Whirlpool Plug
36	W10242810 Whirlpool Panel
38	WP3387242 Whirlpool Seal
39	279570 Whirlpool Dryer Door Latch Kit
40	WP3406797 Whirlpool Toe Panel
41	SWITCH-DOOR DRYER
42	W11663440 Whirlpool Door
43	280083 Whirlpool Rear Door
45	303776 Whirlpool Dishwasher Screw
46	WP345670 Whirlpool Lock
