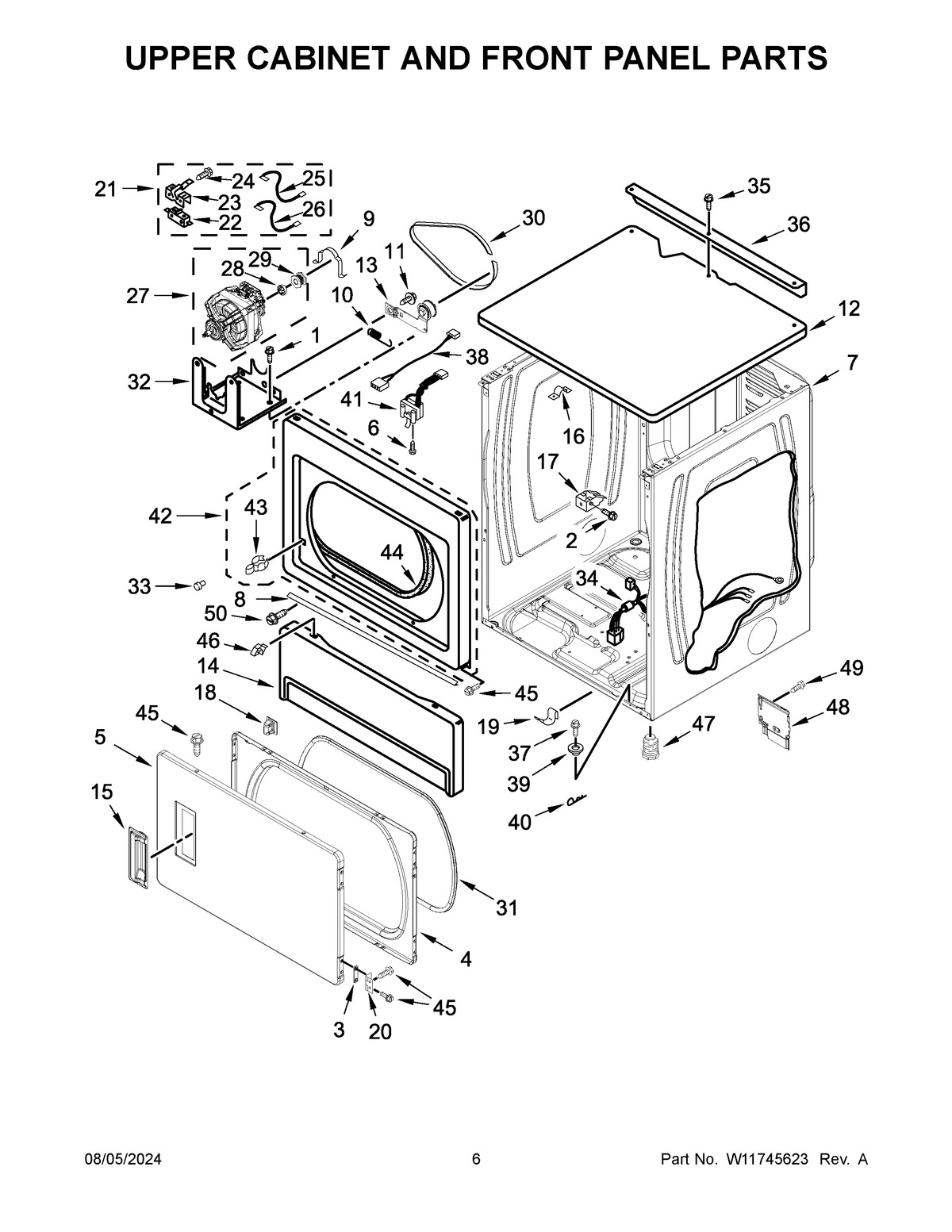

CESP2978JQ0 04 – UPPER CABINET AND FRONT PANEL PARTS

CESP2978JQ0 04 – UPPER CABINET AND FRONT PANEL PARTS

Written by

in

CESP2978JQ0 04 – UPPER CABINET AND FRONT PANEL PARTS

Products

PositionProduct
NIW10470674 Whirlpool Dryer Side Vent Exhaust Kit
1SCREW
2681615 Whirlpool Screw
3W10191265 Whirlpool Plug
4280083 Whirlpool Rear Door
5W11663440 Whirlpool Door
6WP3395530 Whirlpool Screw
7W11417441 Whirlpool Cabinet
8SEAL, DEFLECTOR
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
123389351 Whirlpool Top
13WPW10344193 Whirlpool Idler Pulley
14WP3406797 Whirlpool Toe Panel
15W11209427 Whirlpool Handle
168528351 Whirlpool Clip
173391846 Whirlpool Clip
18279570 Whirlpool Dryer Door Latch Kit
19WPW10291934 Whirlpool Clip
20WPW10279703 Whirlpool Hinge Assembly
22279782 Whirlpool Lid Switch
23WP8066120 Whirlpool Lever Assembly
24WP98129 Whirlpool Screw
25W10167612 Whirlpool Wire
263398948 Whirlpool Wire
27W10841144 Whirlpool Drive Motor
28WP3393657 Whirlpool Belt Retainer
29WP8066184 Whirlpool Dryer Motor Pulley
30WPW10131172 Whirlpool Belt
31WP3390735 Whirlpool Door Seal
32WP3387118 Whirlpool Base Assembly
33693152 Whirlpool Bumper
34W10807486 Whirlpool Wire Harness
35WP488729 Whirlpool Refrigerator Door Screw
363979115 Whirlpool Bracket
37285875 Whirlpool Security Kit
388283298 Whirlpool Wire Harness
39BUSHING
40COTTER PIN
41SWITCH-DOOR DRYER
42W10242810 Whirlpool Panel
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
4749621 Whirlpool Leveling Feet
49303776 Whirlpool Dishwasher Screw
50SCREW
