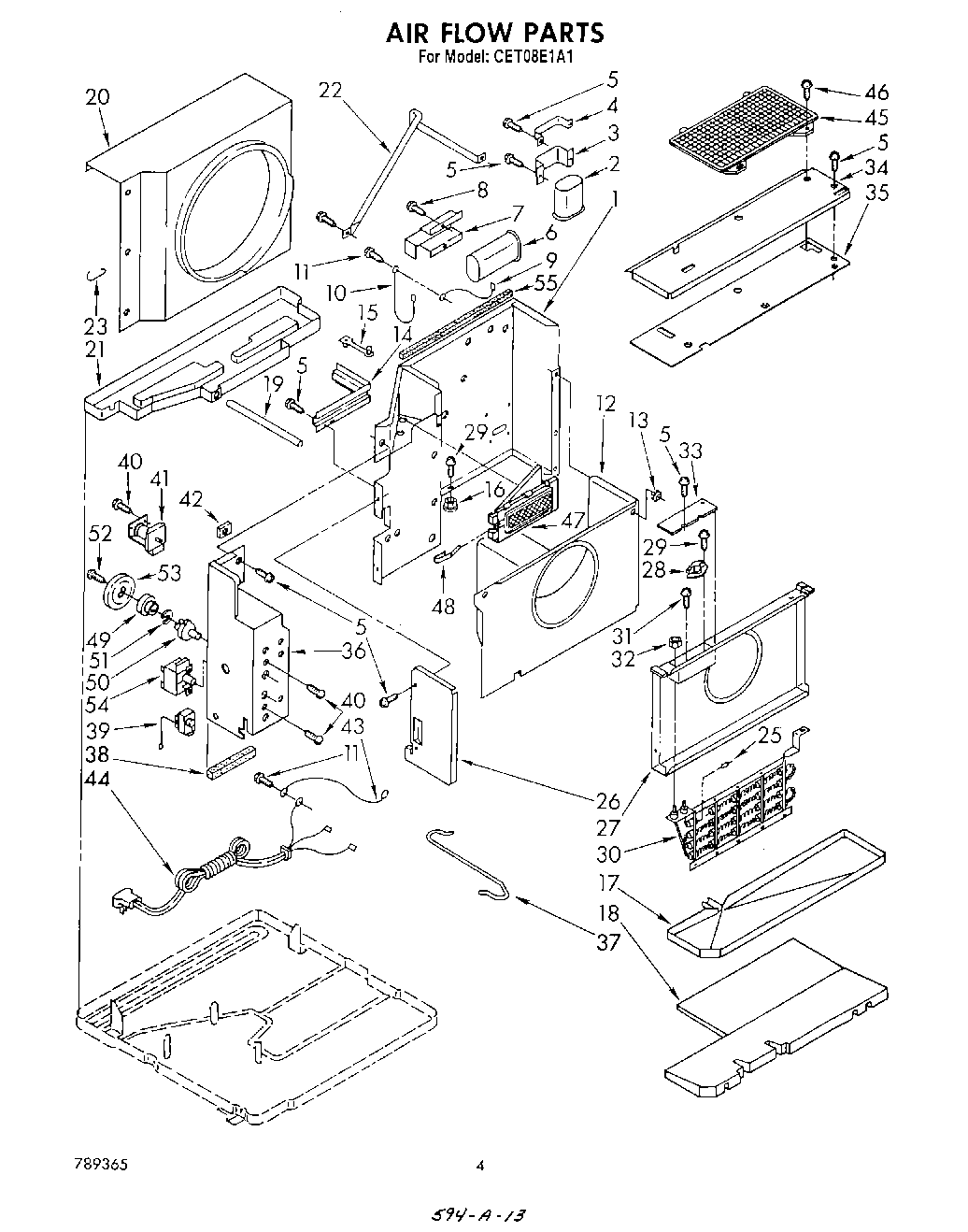

CET08E1A1 03 – AIR FLOW , LIT/OPTIONAL
Written by
in
CET08E1A1 03 – AIR FLOW , LIT/OPTIONAL
Products
Position
Product
WPL LIT951509
WPL LIT953093
WPL LIT89365
WPL LIT953077
1
Wall, Dividing
2
Capacitor, Running
3
Bracket (Lower)
4
Bracket (Upper)
5
WP489069 Whirlpool Compactor Screw
6
capacitor, fan
7
Bracket, Fan Motor Capacitor
9
Ground Wire
10
Wire, Ground
11
WPW10141604 Whirlpool Screw
12
Housing, Blower Wheel
13
Fastener, snap (2)
14
Channel, Wiring
15
Clamp, Cable
16
Clip, Speed
17
Pan, Evaporator Condensate
18
Insulation, Condensate Pan
19
Tube, Condensate
20
Shroud, Condenser
21
Pan, Condenser Condensate
22
Support, Unit
23
Clip, Shroud (3)
25
Fuse, Heater
26
Dividing Wall Assembly, L.S.
27
Deflector, Heat Assembly
28
Switch, Limit
29
Screw, 8 x 3/8
30
Heater, Air
31
WP488234 Whirlpool Air Conditioner Screw
32
WP488826 Whirlpool Nut
33
Cover, Wire Enclosure
34
Cover, Evaporator
35
Insulation, Evaporator Cover
36
Box, Control Assembly
37
Wire, C
38
WP854334 Whirlpool Air Conditioner Sealing Strip
39
Control, Temperature
40
Screw, 6-32 x .175
41
Contactor
42
Grommet
43
Wire, Ground
44
Cable, Appliance
45
Guard, Evaporator Impeller
46
WP488729 Whirlpool Refrigerator Door Screw
47
Door, Exhaust
48
Spring, Door
49
Bushing, Shaft
50
Shaft, Control
51
Washer
52
WP98165 Whirlpool Screw
53
Cam, Exhaust
54
Switch, Rotary
55
WPL 647848
55
WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
55
212643 Whirlpool Refrigerator Permagum Sealer
55
Wire, 25“ Roll (Black 12 GA.)
55
WPL 647847
55
Wire, 25“ Roll (White 12 GA.)
55
Wire, Red, (25 Ft.)
55
Lacquer, Starlight Gray (1/2 Pt. Uncut)
55
Cover, Winter (27 x 19 x 6 to 27“)
55
Insulation, Cabinet (Top)
55
Insulation, Base
←
