CET08E1A1 04 – ACCESSORY KIT

CET08E1A1 04 – ACCESSORY KIT

Written by

in

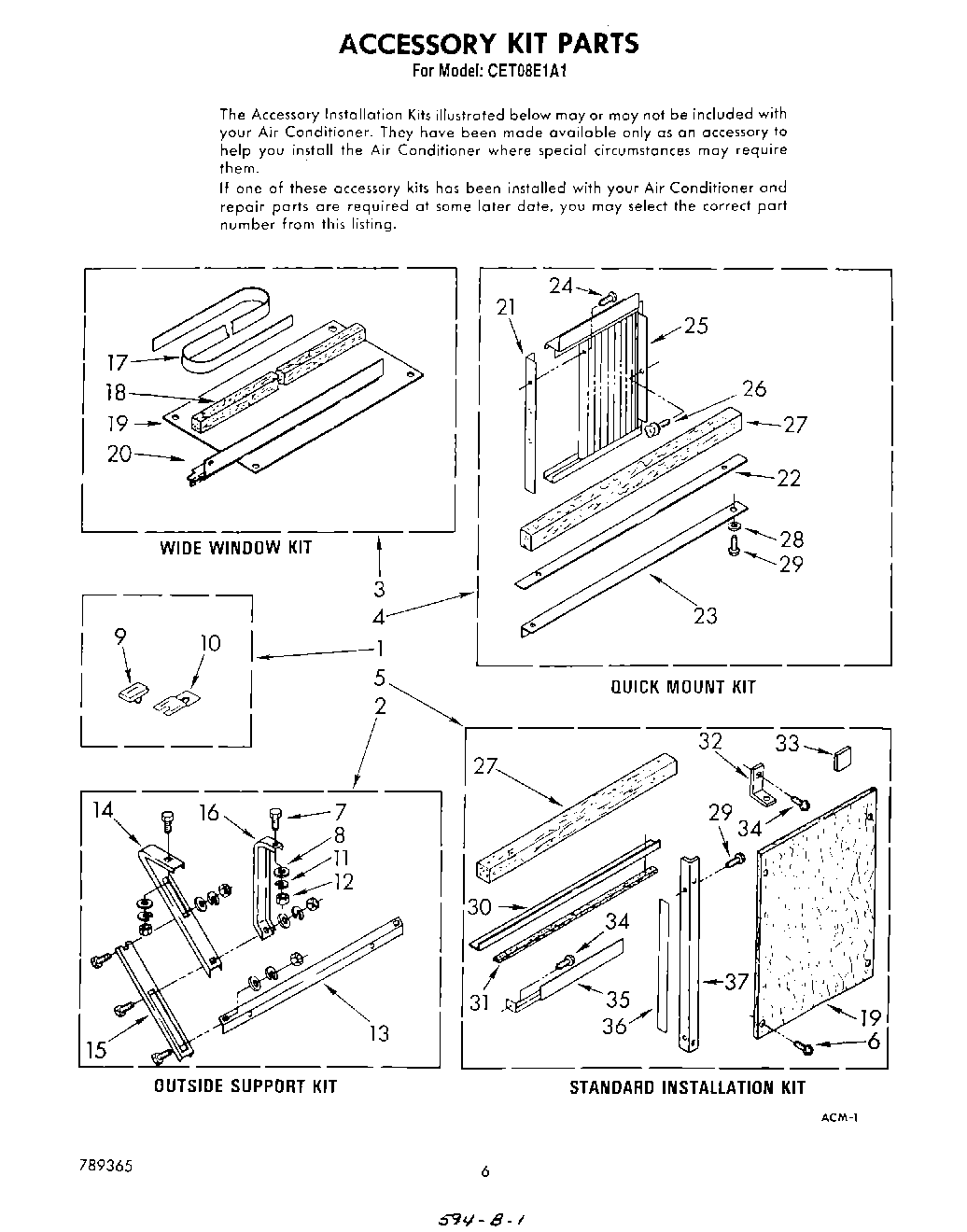

CET08E1A1 04 – ACCESSORY KIT

Products

PositionProduct
1Kit, Condensate Cup
2Kit, Outside Support
3Kit, Wide Window
4Kit, Quick Mount
5Kit, Standard Installation
6WP965173 Whirlpool Dishwasher Screw
7Bolt, 1/4 x 3/4 (6)
8WP120393 Whirlpool Washer Assembly
9WPL 647850
10Support, Cup
11Lockwasher (6)
12Nut, Hex (6)
13Bracket, Support
14Support, Cabinet (2)
15Extension, Support (2)
16Retainer, Cabinet (2)
18Gasket, Meeting Rail
19Bracket, R.S.
20Bracket, Mounting (L.S.)
20Bracket, Mounting (R.S.)
21Retainer, Curtain (2)
22Strip, Seal
23Channel, Bottom
24Screw, 8 x 7/16
25Curtain Housing Assembly, L.S.
25Curtain Housing Assembly, R.S.
26Thumbscrew (2)
27Gasket, Meeting Rail
28Washer (2)
29WP308685 Whirlpool Microwave Screw
30Angle, Top
31Strip, Seal
32Bracket
33Spacer, Block (4)
34Screw, Wood 8-15 x .750
35Bracket, R.S.
35Bracket, L.S.
36Strip, Seal
37Instructions, Installation (Kit, Condensate Cup)
37Instructions, Installation (Kit, Outside Support)
37Instructions, Installation (Outside Sill Kit)
37Instructions, Installation (Kit, Wide Window)
37Instructions, Installation (Kit, Quick Mount)
37Angle (2)
37Instructions, Installation (Kit, Standard Installation)
