CET14D2A1 02 – UNIT

CET14D2A1 02 – UNIT

Written by

in

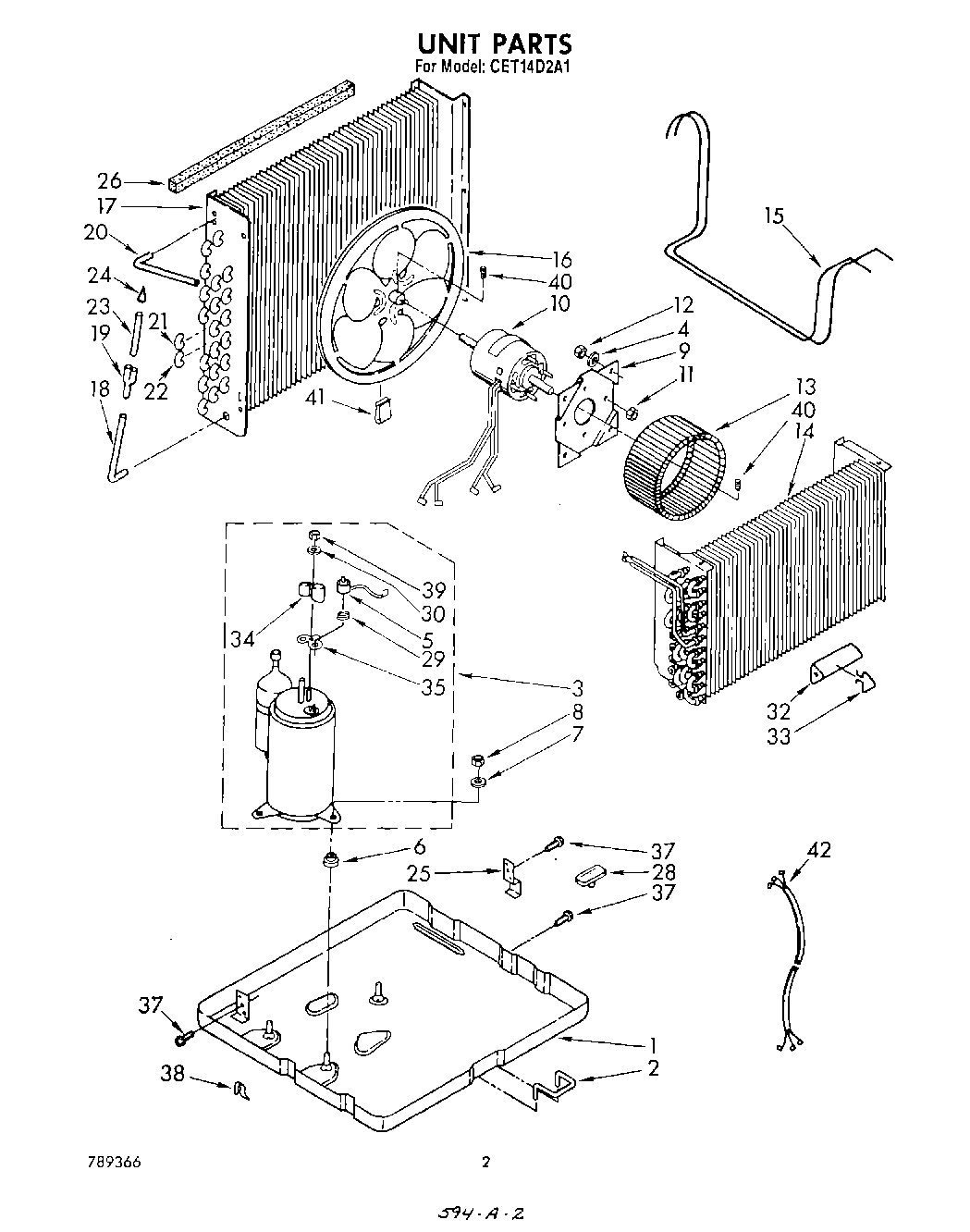

CET14D2A1 02 – UNIT

Products

PositionProduct
1Base
2WPL 647971
3Compressor
4Washer, Repair (4)
5Overload
6WP950021 Whirlpool Grommet
7WP120393 Whirlpool Washer Assembly
9WPL 998024
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12Nut, Hex (4)
13Wheel, Blower
14Evaporator
15Tube, Restrictor (2) (33.0“ Length)
16Fan, Blade
17Condenser
18Tube, Outlet
19Tube, Flow Divider
20Tube Inlet
21Bend, Return Evaporator (11)
22Bend, Return Evaporator (4)
23Tube & Strainer (Includes Item 23)
24Strainer
25WPL 647824
26WP854334 Whirlpool Air Conditioner Sealing Strip
28WPL 647850
29Spring, Overload
32Anticipator
33Clip, Anticipator
34WP950036 Whirlpool Cover Assembly
35WP950035 Whirlpool Cover Gasket
37WP489069 Whirlpool Compactor Screw
38Clamp, Restrictor Tube
39WP950027 Whirlpool Mounting Nut
40Setscrew, 5/16 x 1/4
41Clip, Fan Balancing
42Oil, Turbine 1 Fl. Oz.
42No Drip Tape (For Sweating Tubes)
42978026 Whirlpool Refrigerator Primary Valve
42Kit, Evaporator Repair (Aluminum Epoxy)
42978027 Whirlpool Refrigerator Primary Valve
42978030 Whirlpool Refrigerator Valve
42WP978025 Whirlpool Refrigerator Valve
42VALVE, ACCESS (1/2“)
42VALVE, ACCESS (5/8“)
42Harness, Wiring
