CET14D2A1 03 – AIR FLOW , LIT/OPTIONAL

CET14D2A1 03 – AIR FLOW , LIT/OPTIONAL

Written by

in

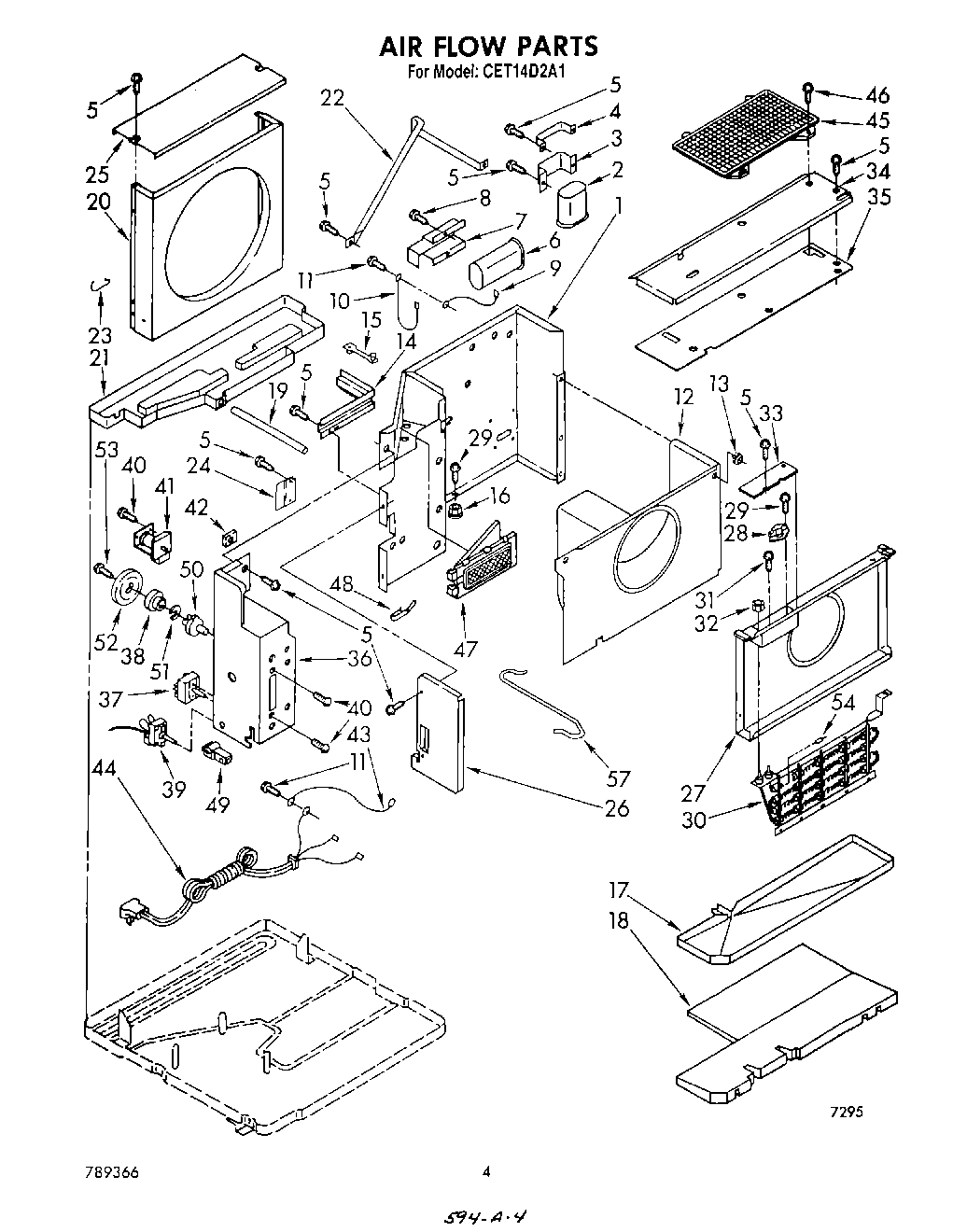

CET14D2A1 03 – AIR FLOW , LIT/OPTIONAL

Products

PositionProduct
WPL LIT953077
WPL LIT951407
WPL LIT951405
WPL LIT789366
1Wall, Dividing (Requires 649939 Insulation)
2Capacitor, Running
3Bracket (Lower)
4Bracket (Upper)
5WP489069 Whirlpool Compactor Screw
6Capacitor, Fan Motor
7Bracket, Fan Motor Capacitor
9Ground Wire
10Wire, Ground
11WPW10141604 Whirlpool Screw
12Housing, Blower Wheel
13Fastener, snap (2)
14Channel, Wiring
15Clip, Wiring
16Clip, Speed
17Pan, Evaporator Condensate
18Insulation, Condensate Pan
19Tube, Condensate
20Shroud, Condenser
21Pan, Condenser Condensate
22Support, Unit
23Clip, Shroud (3)
24Cover, Wall
25Cover, Shroud (Condenser)
26Dividing Wall Assembly, L.S.
27Deflector, Heat Assembly
28Switch, Limit
29Screw, 8 x 3/8
30Heater, Air
31WP488234 Whirlpool Air Conditioner Screw
32WP488826 Whirlpool Nut
33Cover, Wire Enclosure
34Cover, Evaporator
35Insulation, Evaporator Cover
36Box, Control Assembly
37Switch, Rotary
38Bushing, Shaft
39Control, Temperature
40Screw, 6-32 x .175
41Contactor
42Grommet
43Wire, Ground
44Cable, Appliance
45Guard, Evaporator Impeller
46WP488729 Whirlpool Refrigerator Door Screw
47Door, Exhaust
48Spring, Door
49Insulator, Terminal
50Shaft, Control
51Washer
52Cam, Exhaust
53WP98165 Whirlpool Screw
54Fuse, Heater
57WPL 647848
57WPL 647847
57Insulation, Cabinet (Top)
57Cover, Winter (27 x 19 x 6 to 27“)
57Lacquer, Starlight Gray (1/2 Pt. Uncut)
57212643 Whirlpool Refrigerator Permagum Sealer
57Wire, C
57Wire, 25“ Roll (Black 12 GA.)
57Wire, 25“ Roll (White 12 GA.)
57Wire, Red, (25 Ft.)
57WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
