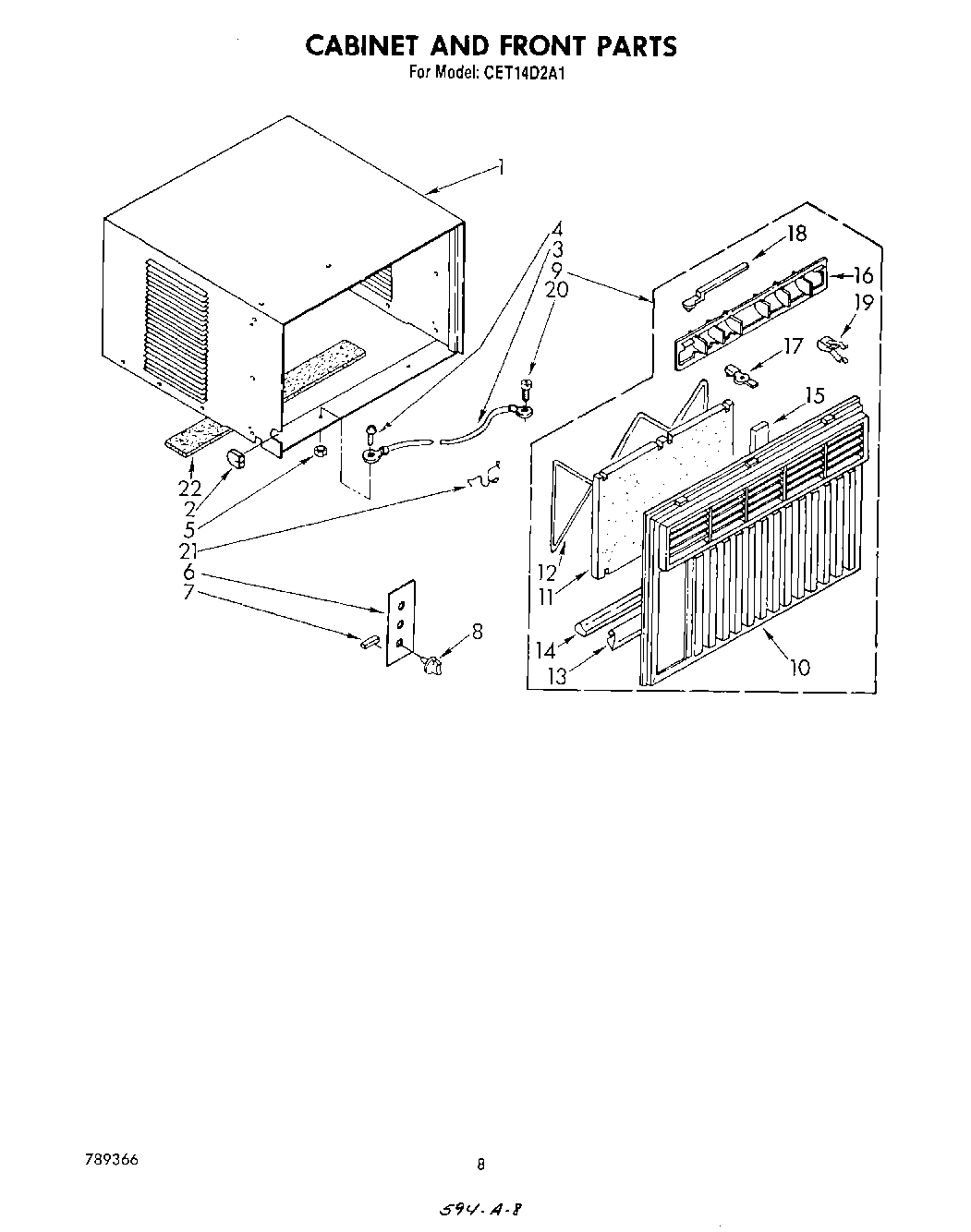

CET14D2A1 05 – CABINET AND FRONT

CET14D2A1 05 – CABINET AND FRONT

Written by

in

CET14D2A1 05 – CABINET AND FRONT

Products

PositionProduct
1Cabinet
2Grommet, Appliance Cable
3Wire, Ground
4Screw, 8 x 3/8
6Plate, Escutcheon
7Spacer, Escutcheon Plate (3)
8Knob, Control (3)
9Front, Cabinet (Complete Assembly)
10front, cabinet
11Filter
12Retainer, Filter
13WP854334 Whirlpool Air Conditioner Sealing Strip
14Seal
15Seal
16Louver, Vertical
18Link, Vert. Louver (2)
19Detent Spring (2)
20Screw, 8 x 3/8
21Clip, Mtg. (2) (Base to Front)
22Seal
