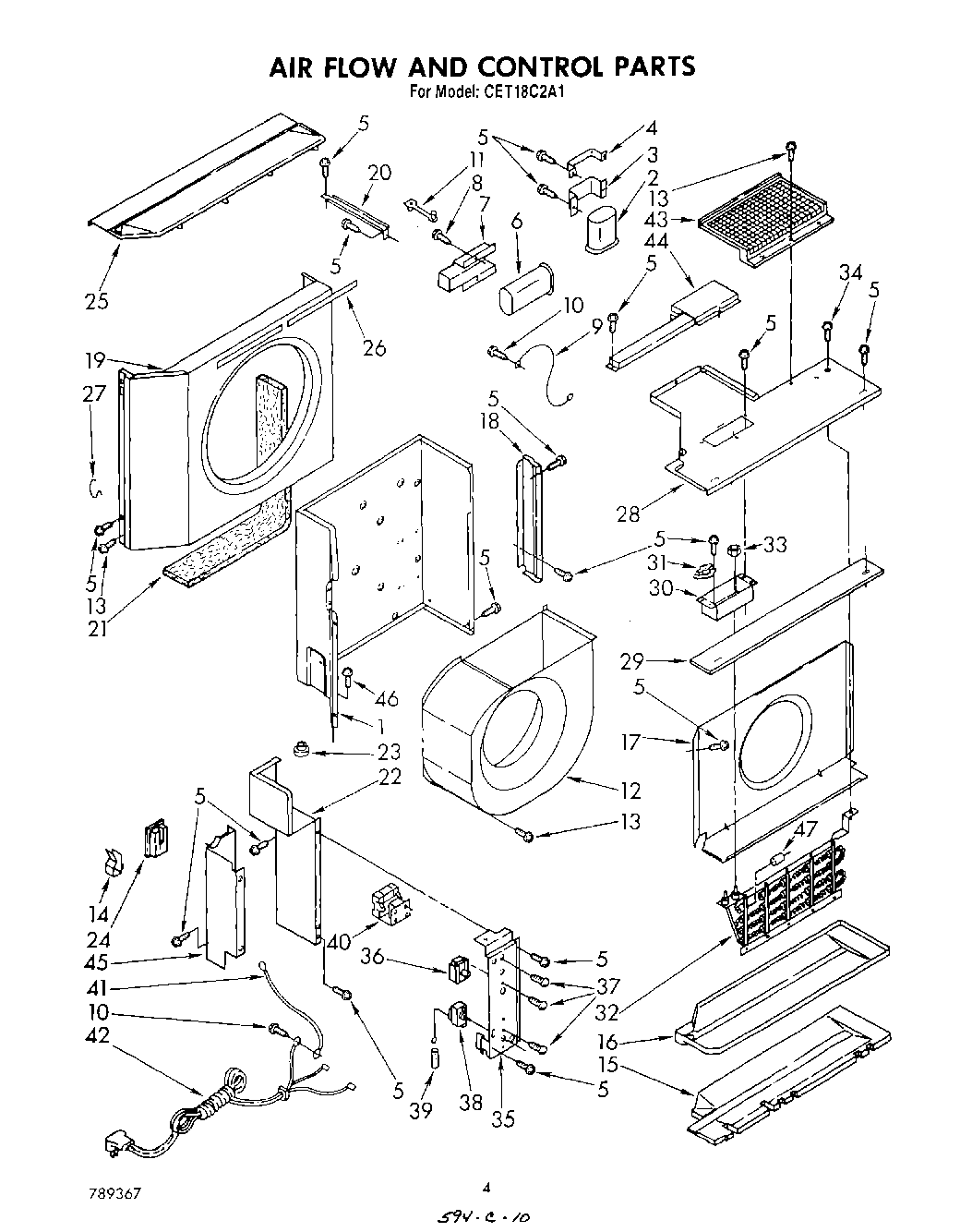

CET18C2A1 03 – AIR FLOW AND CONTROL , LIT/OPTIONAL

Products

Position	Product
1	Wall, Dividing (Requires 649939 Insulation)
2	WPL 951516
3	Bracket (Lower)
4	Bracket (Upper)
5	WP489069 Whirlpool Compactor Screw
5	WP308685 Whirlpool Microwave Screw
6	Capacitor, Fan Motor
7	Bracket, Fan Motor Capacitor
9	Wire, Ground (2)
10	WPW10141604 Whirlpool Screw
11	Clamp, Cable
12	Housing, Blower Wheel
13	WP488729 Whirlpool Refrigerator Door Screw
14	Clamp, Cable
15	Insulation, Pan
16	Pan, Condensate
17	Deflector, Heater
18	Plate, Adapter
19	Shroud, Condenser
20	support, unit (2)
21	Seal, Condenser Fin
22	Extension, Dividing Wall
23	Bushing
24	Seal, Tube
25	Cover, Condenser Shroud
26	WP854334 Whirlpool Air Conditioner Sealing Strip
26	seal, strip (shroud) (side)
27	Clip, Shroud (2)
28	Cover, Evaporator
29	Insulation, Cover
30	Bracket, Heater
31	Switch, Limit
32	Heater, Air
33	WP488826 Whirlpool Nut
34	WP488234 Whirlpool Air Conditioner Screw
35	Panel, Control
36	WPL 950526
37	Screw, 6-32 x .175
38	Control, Temperature
39	Sleeve, Insulator
40	Contactor
41	Wire, Ground
42	Cable, Appliance
43	Guard, Evaporator Impeller
44	Cover, Heater
45	Cover, Control Access
46	Screw, 8 x 3/8
47	212643 Whirlpool Refrigerator Permagum Sealer
47	Wire, 25“ Roll (White 12 GA.)
47	Wire, Red, (25 Ft.)
47	Lacquer, Starlight Gray (1/2 Pt. Uncut)
47	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
47	Cover, Winter (27 x 19 x 6 to 27“)
47	Retainer, Cord (Winter Cover)
47	Insulation, Base
47	Wire, 25“ Roll (Black 12 GA.)
47	WPL 855438
47	WPL 854937
47	Fuse, Heater
47	WPL 854938
