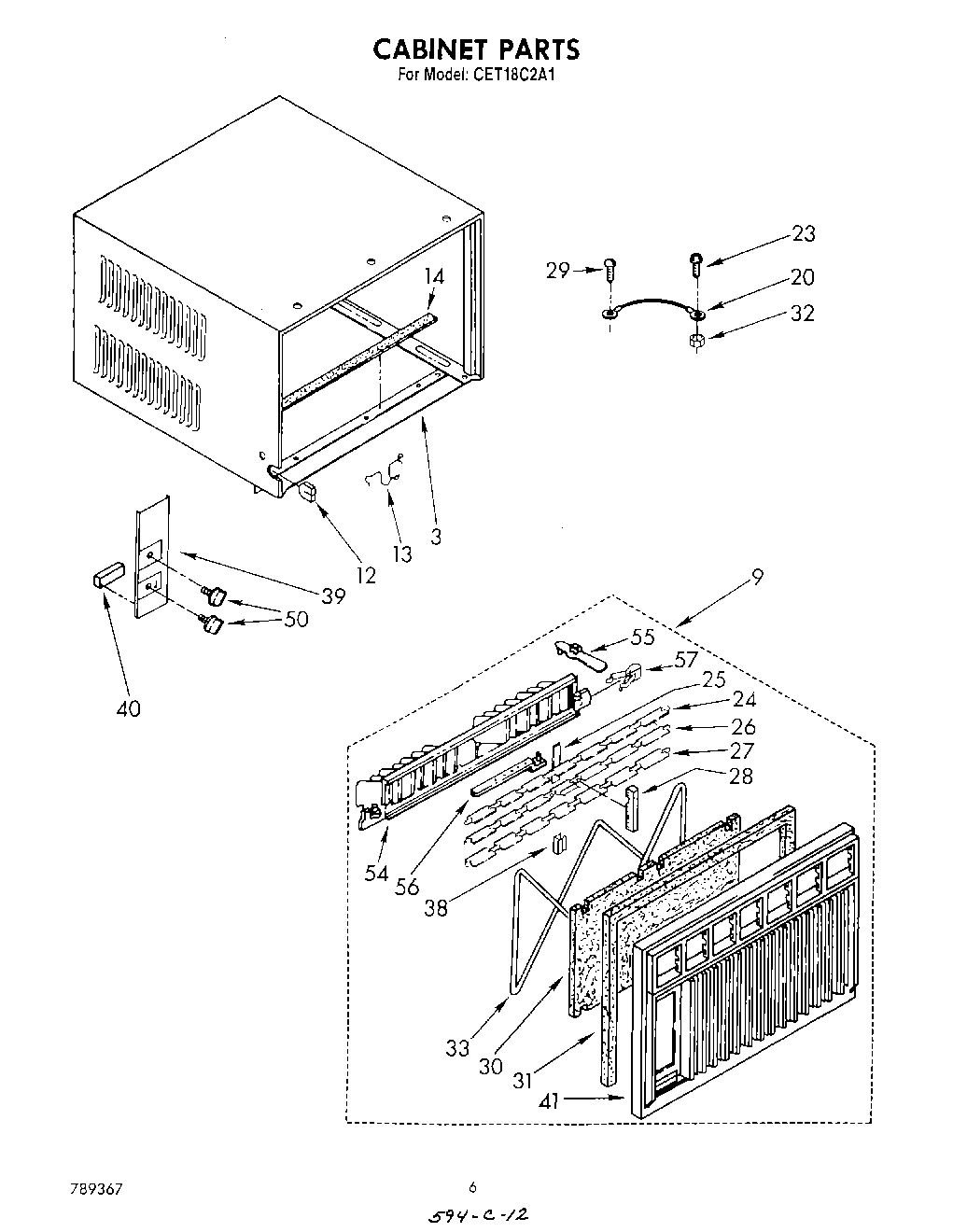

CET18C2A1 04 – CABINET

Products

Position	Product
3	Cabinet Also order Insulation NO.1157053 (3)
9	WPL 953024
9	(See Optional Parts)
12	Grommet, Appliance Cable
13	Clip, Mtg. (3)
14	Seal, Bottom
23	Screw, 8 x 3/8
24	Louver, Horizontal (4)
25	Retainer (4)
26	louver, horizontal (handle)
27	louver, horizontal (notched)
28	Rack, Louver (2)
29	Screw, 8 x 3/8
30	Filter, Air
31	Seal, Front (Bottom)
31	Seal, Front (Top & Sides)
32	WP486255 Whirlpool Air Conditioner Nut
33	Retainer, Filter
38	Clip, Retainer (4)
39	Escutcheon
40	Spacer, Escutcheon Plate (2)
41	WPL 953018
50	Knob, Control (3)
54	WPL 953064
55	Handle, Louver (2)
56	Link, Louver (2)
57	Detent Spring (2)
