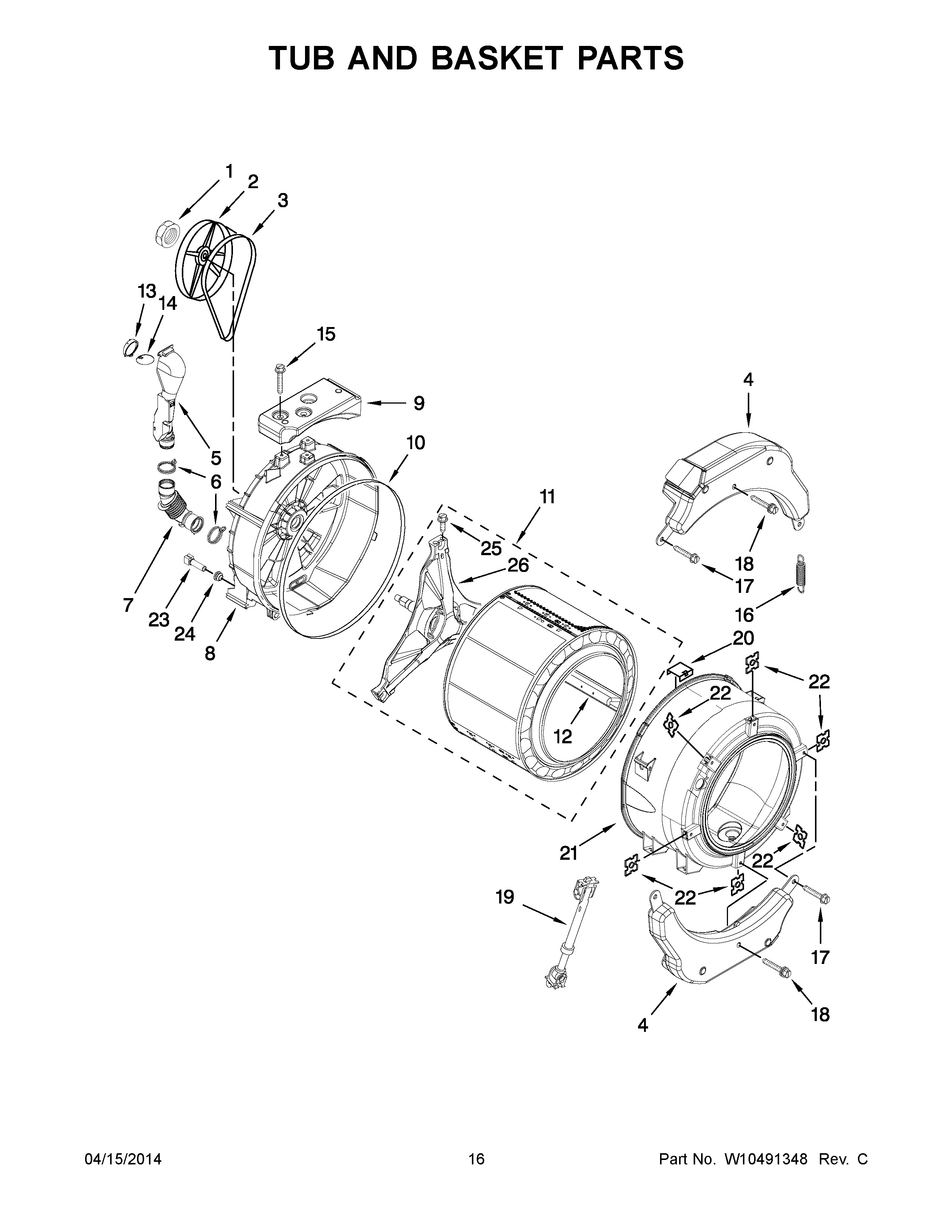

CET8000AQ0 09 – TUB AND BASKET PARTS

Products

Position	Product
1	WPW10283361 Whirlpool Nut
2	WP8540088C Whirlpool Pulley
3	WPW10260319 Whirlpool Drive Belt
4	WPW10223198 Whirlpool Counterweight
5	W10142720 Whirlpool Vent Pipe
6	8540010 Whirlpool Clamp
7	W11398765 Whirlpool Hose
9	WPW10200747 Whirlpool Counterweight
10	WPW10111158 Whirlpool Gasket Assembly
11	W11036325 Whirlpool Outer Tub Assembly
12	W11700547 Whirlpool Baffle Assembly
13	VENTILATION, CONNECTOR
14	W10142722 Whirlpool Flap Assembly
15	W11028021 Whirlpool Screw
16	280159 Whirlpool Spring Assembly
17	W11685857 Whirlpool Screw Assembly
18	WPW10259288 Whirlpool Screw
19	W10822553 Whirlpool Washer Shock Absorber
20	WP8540092 Whirlpool Clamp
21	W10312454 Whirlpool Outer Tub Assembly
22	WP8182512 Whirlpool Nut Assembly
23	WPW10467289 Whirlpool Sensor
24	W11590578 Whirlpool Seal
25	WP8540382 Whirlpool Screw
26	ASSEMBLY, CROSSPIECE
