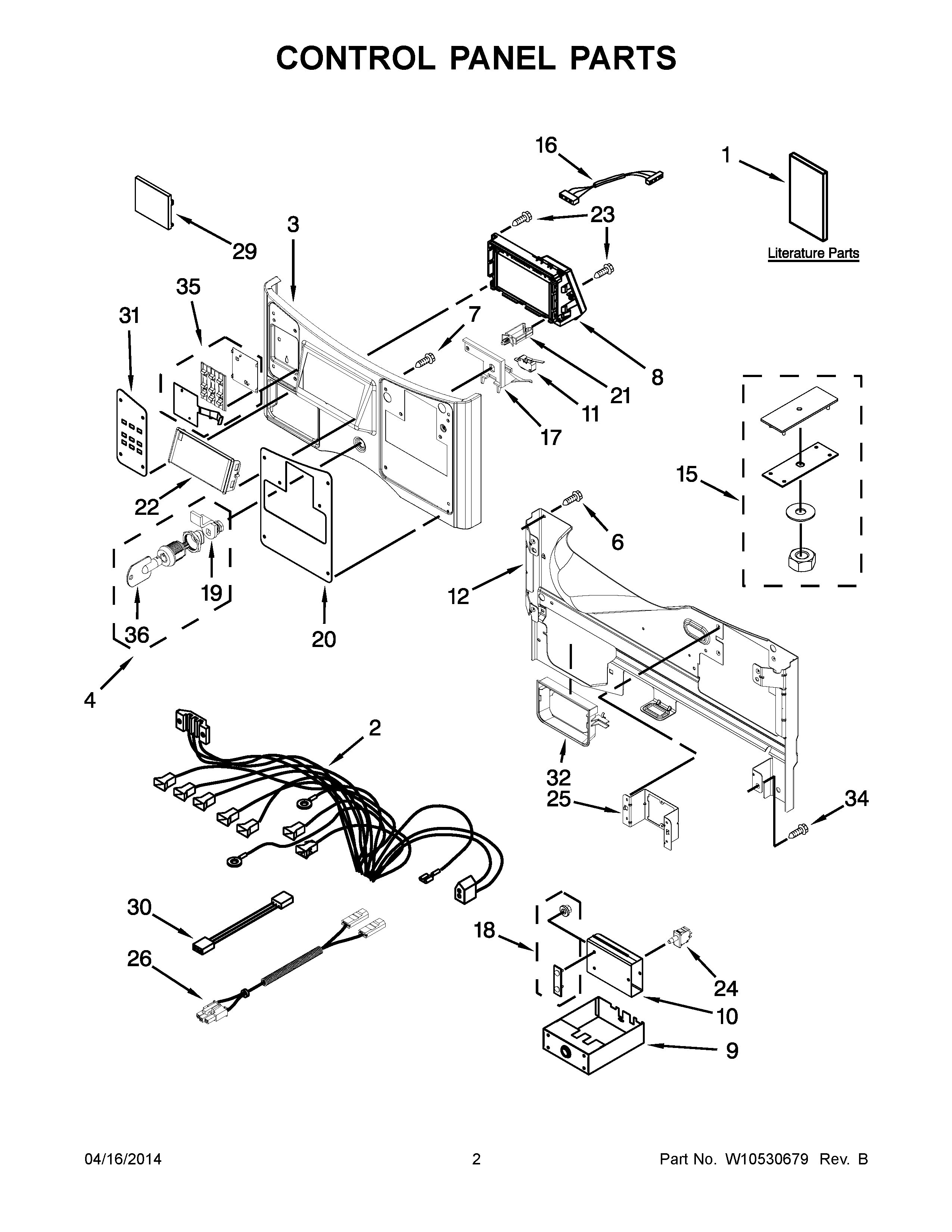

CET8000AQ1 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10198367 Whirlpool Bezel
NI	W10198451 Whirlpool Cover Reader
1	INSTRUCTIONS, INSTALLATION
1	SHEET, TECH
2	W10242900 Whirlpool Wire Harness
3	W11181684 Whirlpool Control Panel
4	W10198223 Whirlpool Cam Lock
6	WP488729 Whirlpool Refrigerator Door Screw
7	3400408 Whirlpool Screw
8	W10827641 Whirlpool Electronic Control Board
9	W11204019 Whirlpool Coin Box
10	W11204020 Whirlpool Box
11	WPW10447152 Whirlpool VLT Switch
12	BRACKET, CONSOLE
15	W11416034 Whirlpool Security Kit
16	W11700545 Whirlpool Wire Harness
17	W10198375 Whirlpool Support
18	W10159907 Whirlpool Bracket
19	W11165684 Whirlpool Cam
20	W10198335 Whirlpool Overlay
21	CLIP, TUBE
22	W10198390 Whirlpool Cover
23	WPW10273971 Whirlpool Screw
24	WPW10131838 Whirlpool Voltage Switch
25	W10198322 Whirlpool Bracket
26	W10300896 Whirlpool Wire Harness
29	COVER PD/PN
30	W10342214 Whirlpool Wire Harness
31	W10198331 Whirlpool Push Button
32	W10198345 Whirlpool Collar
34	WPW10131119 Whirlpool Screw
35	WPW10198199 Whirlpool Switch
36	KEY
