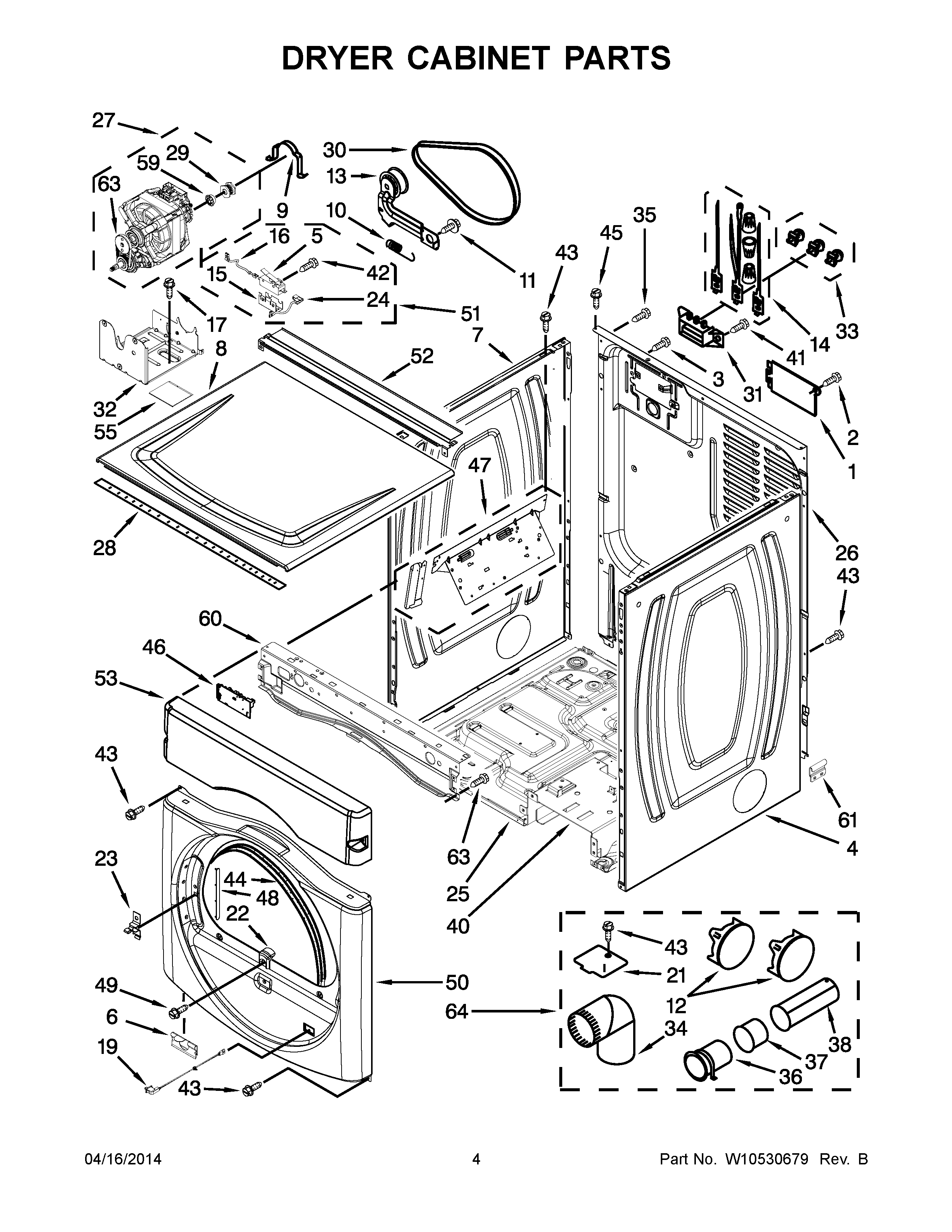

CET8000AQ1 03 – DRYER CABINET PARTS

Products

Position	Product
1	WPW10119283 Whirlpool Terminal Cover
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	W10542714 Whirlpool Panel
5	WP8564010 Whirlpool Plug Switch
6	W11295573 Whirlpool Clip
8	WPW10336080 Whirlpool Top Assembly
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
13	WPW10344192 Whirlpool Idler Pulley
14	279318 Whirlpool Terminal
15	8564011 Whirlpool Bracket
16	W10167613 Whirlpool Wire
17	SCREW
19	W10128087 Whirlpool Door Switch
21	WPW10354249 Whirlpool Cover
22	8580015 Whirlpool Ramp
23	WP8565122 Whirlpool Strike Assembly
24	WIRE, MOTOR TO BELT SWITCH
25	W11116960 Whirlpool Base Assembly
26	Panel, Rear
27	W11234001 Whirlpool Drive Motor
28	Seal, Foam
29	WP8066184 Whirlpool Dryer Motor Pulley
30	WPW10131172 Whirlpool Belt
31	WP3397659 Whirlpool Terminal Block
32	W11676491 Whirlpool Base
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WPW10416072 Whirlpool Elbow
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
40	VAULT SWITCH, BRACKET
42	W10002600 Whirlpool Screw
43	WP488729 Whirlpool Refrigerator Door Screw
44	WP3387242 Whirlpool Seal
46	WPW10376685 Whirlpool Electronic Control Board
47	WP8563727 Whirlpool Bracket
48	8565043 Whirlpool Plug
49	WP308685 Whirlpool Microwave Screw
50	WPW10117421 Whirlpool Panel
51	W11247665 Whirlpool Switch
52	BRACKET, WATER CHANNEL
53	W11674367 Whirlpool Console
55	W11113654 Whirlpool Pad
59	WP3393657 Whirlpool Belt Retainer
60	WP8565237 Whirlpool Bracket Assembly
61	BRACKET, STACK
63	WP3405160 Whirlpool Belt Assembly
64	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
