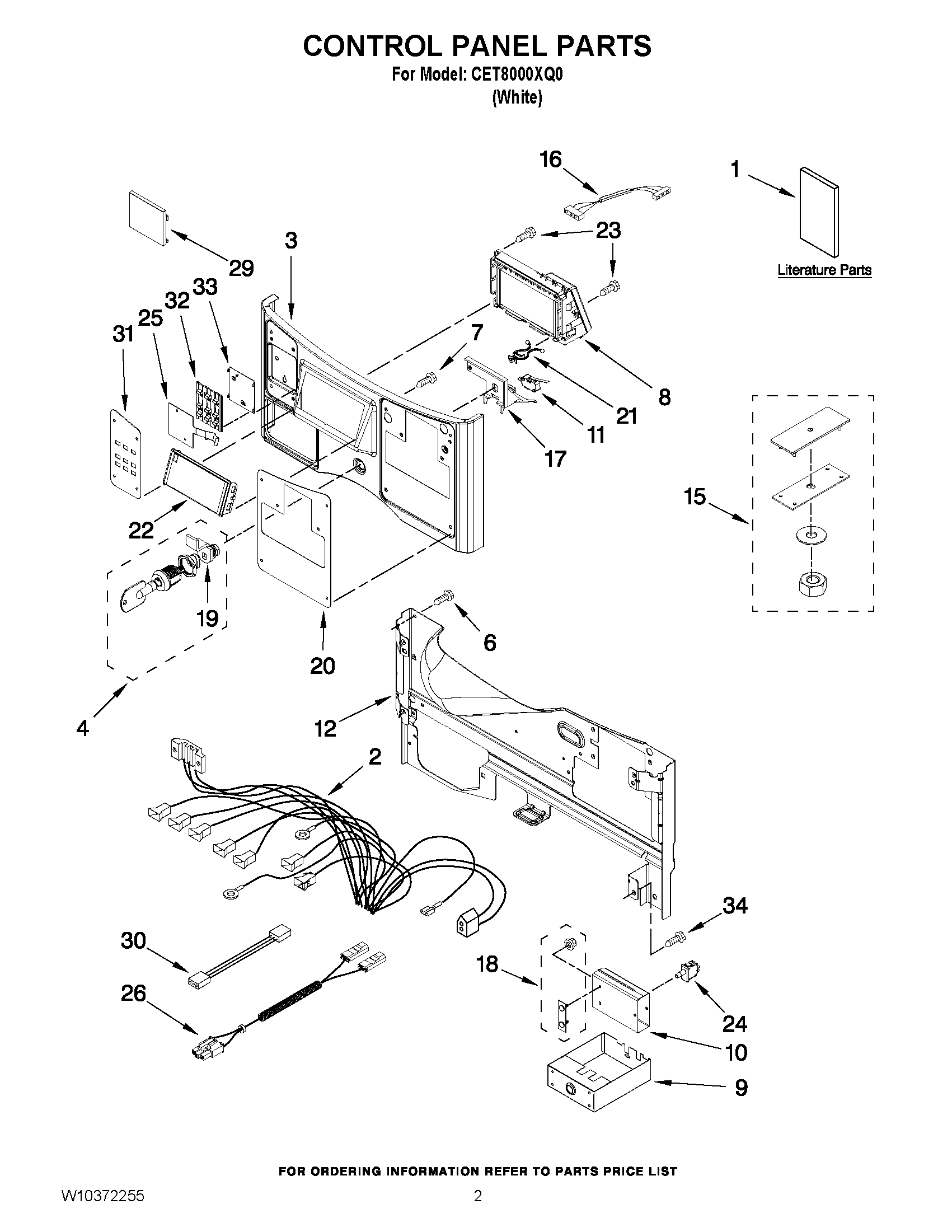

CET8000XQ0 01 – CONTROL PANEL PARTS

Products

Position	Product
1	TECH SHEET
1	INSTALLATION INSTRUCTION
1	MAY W10372255
2	MAY W10242900
3	PANEL ASSEMBLY
4	SERVICE & PROGRAMMING LOCK
6	SCREW
7	SCREW, 4-40 X 5/8
8	TECHBOX ASSEMBLY
9	COIN BOX
10	VAULT BODY, ASSEMBLY
11	MAY W10133280
12	MAY W10198303
15	MAY W10169579
16	MAY W10242897
17	SUPPORT-CONSOLE
18	MOUNTING STRAP, WELD ASSEMBLY
19	CAM-LOCK
20	MAY W10198335
21	Clip, Wire
22	WINDOW-DISPLAY
23	SCREW
24	MAY W10131838
25	MAY W10198342
26	MAY W10300896
29	MAY W10198366
30	MAY W10342214
31	MAY W10198331
32	MAY W10198311
33	MAY W10198383
34	SCREW
