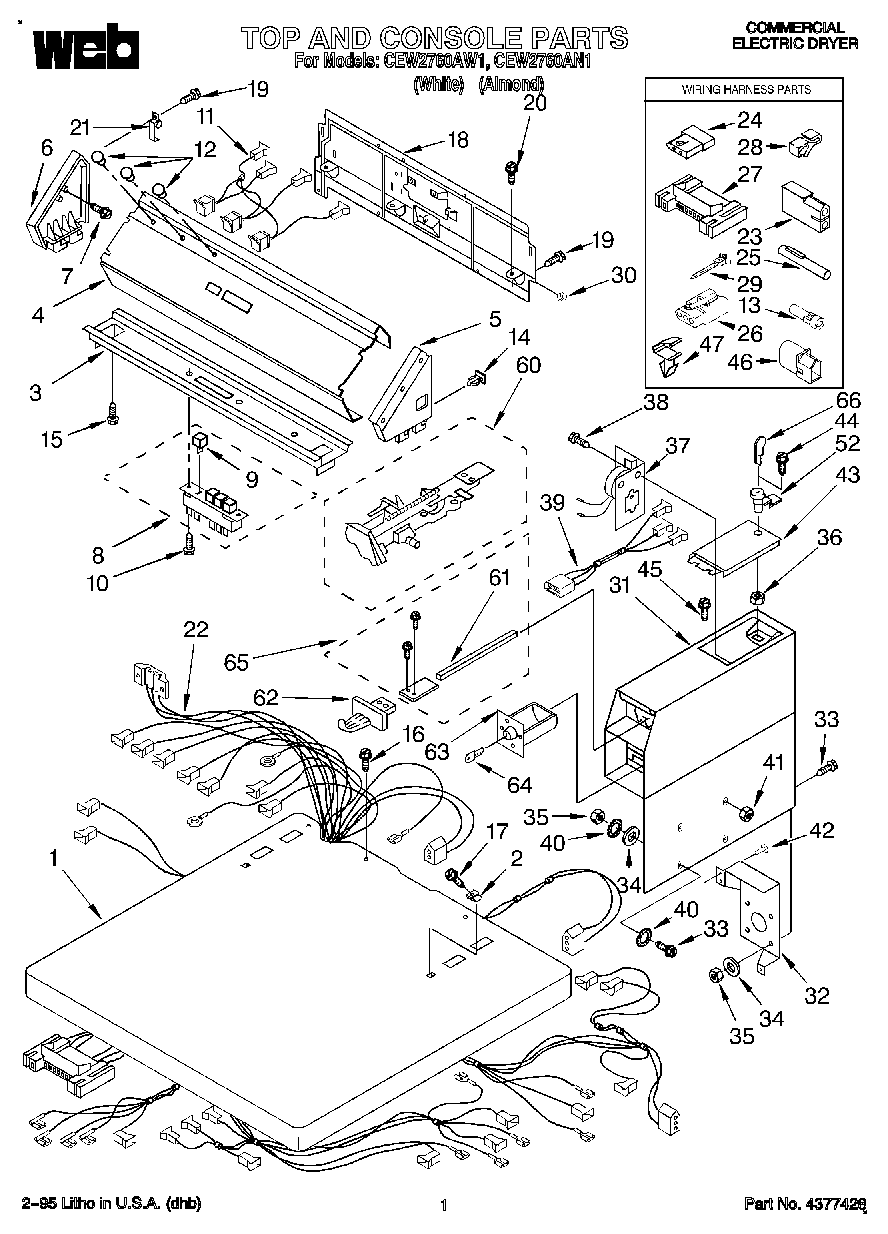

CEW2760AW1 01 – SECTION

CEW2760AW1 01 – SECTION

Written by

in

CEW2760AW1 01 – SECTION

Products

PositionProduct
1Top, Cabinet (Almond)
1Top, Cabinet (White)
2WP357213 Whirlpool Hinge Stopper
3Bracket, Control
4Panel, Control
5Cap, End (R.H.)
6Cap, End (L.H.)
7WPW10109200 Whirlpool Screw
8Switch, Pushbutton
9Button (4)
10WP965173 Whirlpool Dishwasher Screw
11Lights, Indicator (240 Volts)
12WP3348109 Whirlpool Light Lens
13Plug
14WP689559 Whirlpool Nut
15Wire, Ground
16SCREW
17WP388326 Whirlpool Screw
18Panel, Rear (Upper)
19WP488729 Whirlpool Refrigerator Door Screw
20WP489069 Whirlpool Compactor Screw
21Hinge, Console (2)
22Harness, Main
23Receptacle, Latching (2-Way) (Uses Terminal 94614)
24WP717253 Whirlpool Dishwasher Connector
25Receptacle
26Receptacle, 3-Way Terminal (Use W/94614)
273395683 Whirlpool Connector
28Clip, Ground
29WP3391018 Whirlpool Wire Tie
30Bushing, Snap
31Meter Case (For White Model)
31Meter Case (For Almond Model)
32Bracket, Meter Case (Almond)
32Bracket, Meter Case (White)
33Bolt, 5/16-18 x 3/4 (3)
34WP348197 Whirlpool Washer Assembly
3590984 Whirlpool Nut
36WP90406 Whirlpool Nut
37Timer
38Screw, 1/4 x 20 x 3/8
39Harness, Timer
40Washer
41Nut, Break- A-Way (2)
42Rivet (3)
43Door, Service (For Almond Model)
43W11283272 Whirlpool Washer Dryer Meter Case Access Door
44Screw & Washer
45Screw, No. 10
46353424 Whirlpool Connector
47WP3394427 Whirlpool Clip
