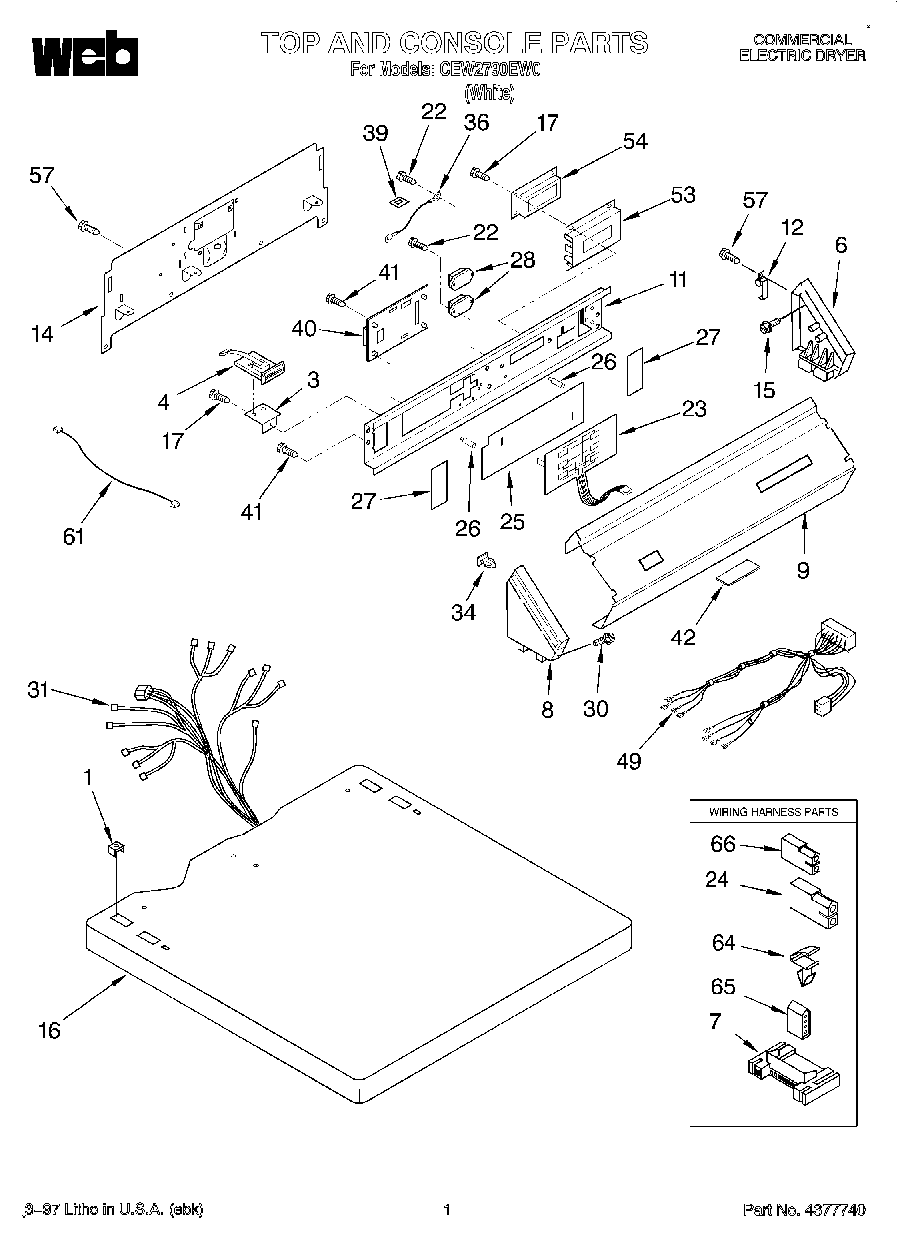

CEW2790EW0 01 – SECTION

Products

Position	Product
1	WP357213 Whirlpool Hinge Stopper
3	Bracket, Card Reader
4	3949598 Whirlpool CD Reader
6	Cap, End (R.H.)
7	3395683 Whirlpool Connector
8	W11686050 Whirlpool Drive Motor
9	Panel, Control
11	Bracket, Control
12	Hinge, Console (2)
14	Panel, Rear
15	WPW10109200 Whirlpool Screw
16	Top
17	WP90767 Whirlpool Screw
22	SCREW
23	Switch, Membrane
24	WP717253 Whirlpool Dishwasher Connector
25	Backer Plate
26	Mounting Stud
27	Backer Plate, Side (2)
28	WP8566493 Whirlpool Relay
30	WP388326 Whirlpool Screw
31	Harness, Wiring
34	WP689559 Whirlpool Nut
36	Wire, Ground
39	W10113937 Whirlpool Clamp
40	Board, Control
41	WPW10366705 Whirlpool Screw
42	686770 Whirlpool Support Bracket
49	Harness, Console
53	Bezel, Display
54	Display, Eletronic
57	WP488729 Whirlpool Refrigerator Door Screw
61	VFD Cable
64	WP3394427 Whirlpool Clip
65	Plug
66	Receptacle, Latching (2-Way) (Uses Terminal 94614)
