CEW2790EW0 03 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Label, Wiring Diagram
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun

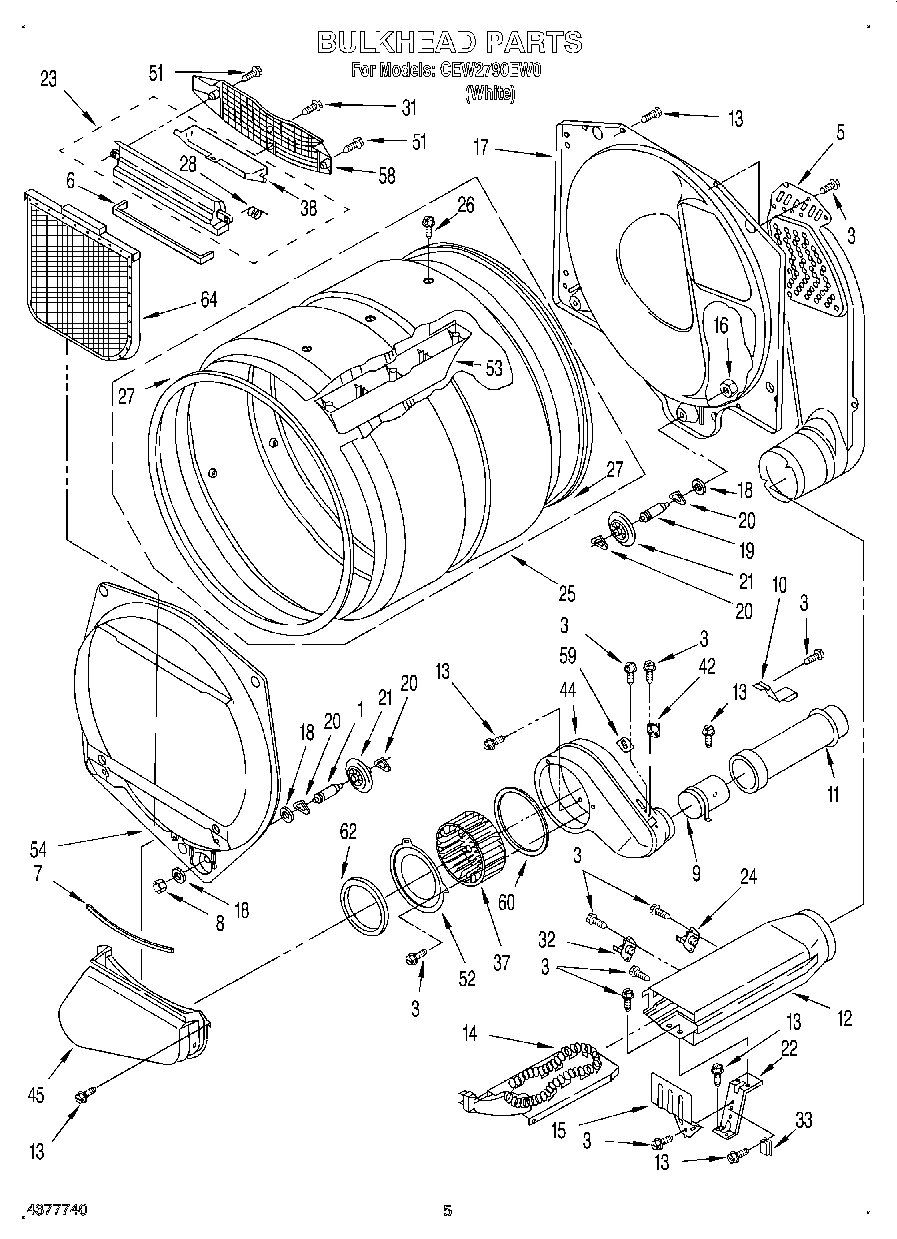

1	SHAFT
3	WPW10139210 Whirlpool Screw
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WP3359452 Whirlpool Nut
9	Exhaust Pipe Assembly
10	WP3395536 Whirlpool Clip Assembly
11	Extension, Exhaust Pipe
12	W10802681 Whirlpool Box Assembly
13	WP488729 Whirlpool Refrigerator Door Screw
14	W10864898 Whirlpool Dryer Heating Element
15	Shield, Heat
16	Nut, 3/8-16 (L.H.)
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	Bracket, Heater
23	W11129408 Whirlpool Out Housing
24	279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
25	W10518375 Whirlpool Drum Assembly
26	Screw
27	280114 Whirlpool Dryer Drum Seal
28	WP3394986 Whirlpool Spring
32	THRMST-FIX
33	WP8566493 Whirlpool Relay
37	WP697772 Whirlpool Dryer Blower Wheel
38	W11222846 Whirlpool Door
42	WP3387138 Whirlpool Cycling Thermostat
44	WP8544363 Whirlpool Housing
45	Lint Duct Assembly
51	WP179051 Whirlpool Screw
52	279780 Whirlpool Plate Cover
53	279982 Whirlpool Drum Baffle
54	WP697557 Whirlpool Bulkhead Assembly
58	Grill, Outlet
59	WP3390719 Whirlpool Dryer Thermal Fuse
60	WP697770 Whirlpool Blower Cover Plate Seal
62	WP8566209 Whirlpool Seal
64	W10120998 Whirlpool Dryer Lint Screen Filter
