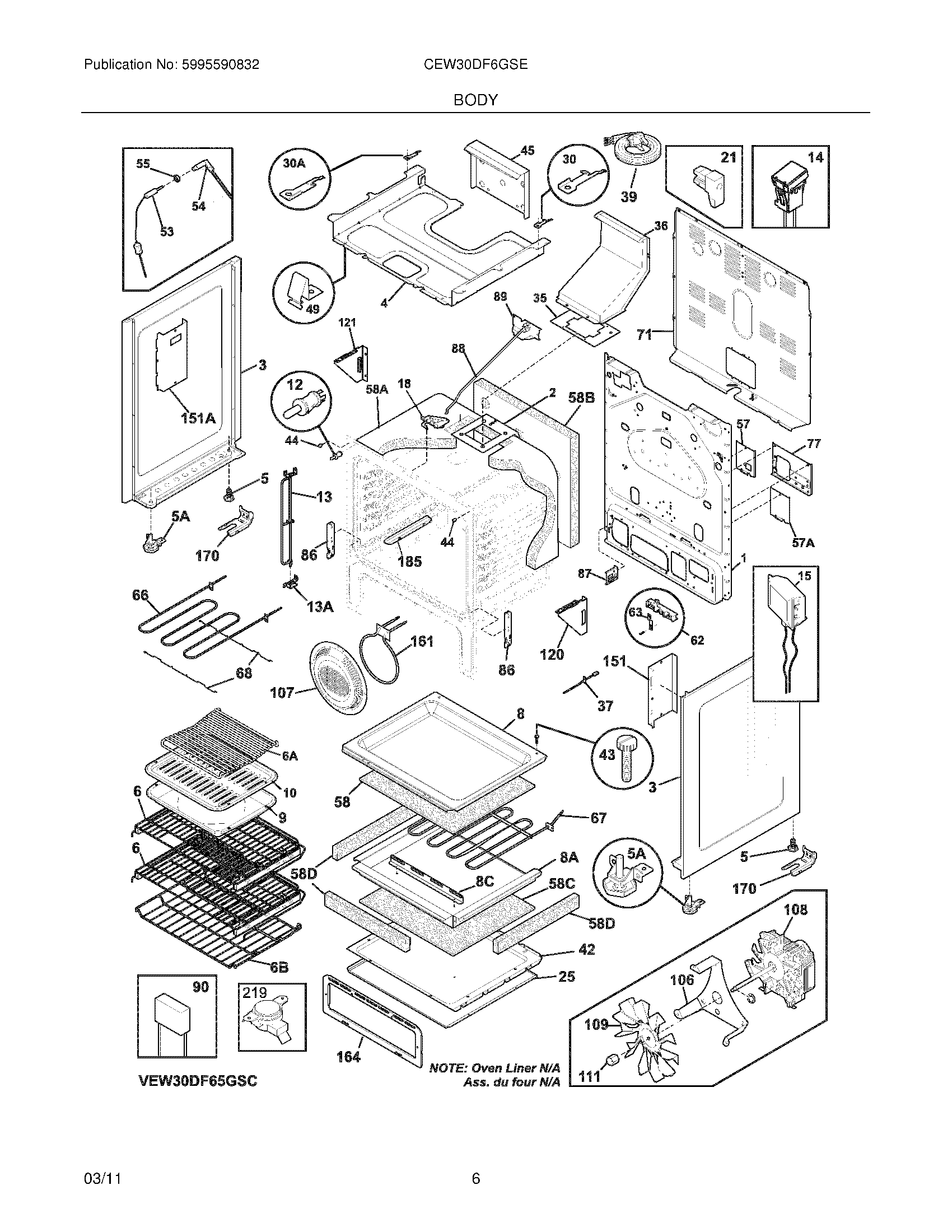

CEW30DF6GSE 07 – BODY

CEW30DF6GSE 07 – BODY

Written by

in

CEW30DF6GSE 07 – BODY

Products

PositionProduct
NI316205500 Frigidaire Oven Nut
NI316539800 Frigidaire Oven Retainer
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NIWCI 316512565
NI316008401 Frigidaire Washer P-1
NI316001017 Frigidaire Screw
NI316021105 Frigidaire Oven Screw
NI5303285179 Frigidaire Oven Door Screw
NI316534100 Frigidaire Oven Washer
1WCI 316504501
2WCI 316525800
3WCI 316400124
3WCI 316400125
4WCI 316505300
5A5304509869 Frigidaire Oven Leveling Leg Assembly
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
6316571800 Frigidaire Rack Assembly
6AWCI 318219500
6B316496205 Frigidaire Oven Rack
8C316505801 Frigidaire Oven Support
8WCI 316505602
8A316505701 Frigidaire Oven Base
9316081901 Frigidaire Oven Baking Pan
10316082001 Frigidaire Oven Insert
12316445500 Frigidaire Oven Switch
13AWCI 316543000
13WCI 316529004
14316508301 Frigidaire Switch Assembly Rack Sen
155304523863 Frigidaire Lamp Assembly
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
25WCI 316505900
30AWCI 316217701
30316217700 Frigidaire Oven Bracket
35316542102 Frigidaire Flue Gasket
36WCI 316507901
37316490000 Frigidaire Oven Range Temperature Sensor
39WCI 318113111
42316407700 Frigidaire Oven Shield
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
45WCI 316508501
49WCI 316540600
535304504202 Frigidaire Red Meat Temperature Probe
54WCI 316536902
55316247700 Frigidaire Oven Nut
57AWCI 316451101
57WCI 316451100
58A316403700 Frigidaire Insulation
58WCI 316509500
58C316509600 Frigidaire Insulation
58D316509700 Frigidaire Insulation
58BWCI 316403601
625304409888 Frigidaire Oven Terminal Block with Hardware
63316278800 Frigidaire Oven Plate
66BROIL ELEMENT
67316505500 Frigidaire Oven Element
68316404002 Frigidaire Support Assembly
71WCI 316422306
77WCI 316451201
86316580700 Frigidaire Door Hinge Receptacle
87WCI 316451001
88316232702 Frigidaire Rod
89MOTOR
90WCI 316539900
106316404100 Frigidaire Oven Bracket
107WCI 316026702
1085304467898 Frigidaire Oven Kit Assembly
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
120WCI 316279204
121WCI 316279205
151316404601 Frigidaire Oven Shield
151WCI 316404600
161316211603 Frigidaire Oven Element
164WCI 316450302
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316116000 Frigidaire Screw
185316112900 Frigidaire SHIELD
219WCI 318003602
