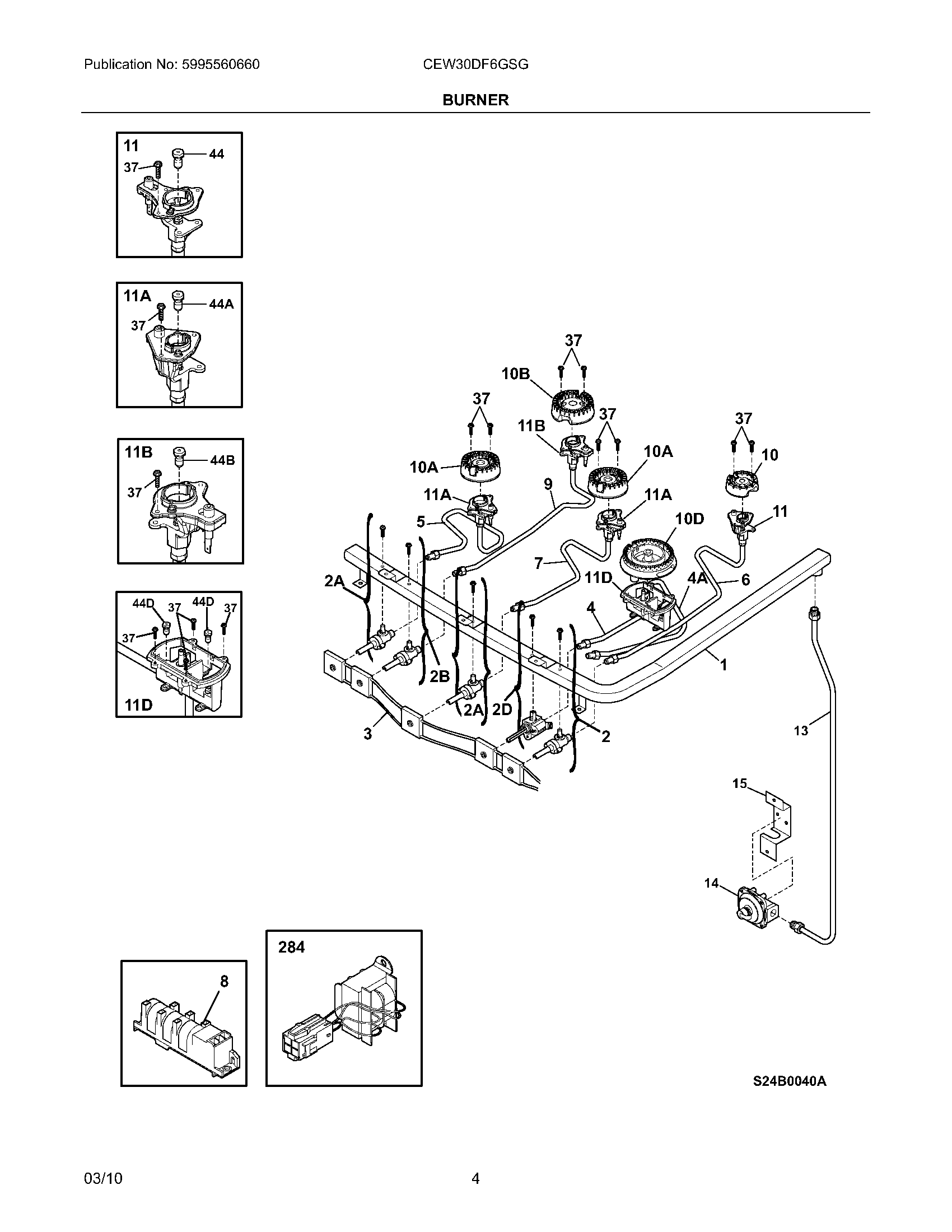

CEW30DF6GSG 05 – BURNER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	WCI 316434900
NI	WCI 316526900
NI	316001017 Frigidaire Screw
NI	WCI 316443200
NI	WCI 316064103
NI	316089500 Frigidaire Oven Screw
1	WCI 316505200
2A	316520701 Frigidaire Oven Valve Assembly
2	WCI 316520700
2B	WCI 316520703
2D	WCI 316574901
3	316518201 Frigidaire Assembly Harness
4	WCI 316509000
4A	WCI 316509100
5	WCI 316509300
6	WCI 316509200
7	WCI 316509400
8	SPARK MODULE
9	WCI 316526600
10A	316558300 Frigidaire Oven 9.5L Sealed Burner
10	316438200 Frigidaire Range Sealed Burner, 5K
10B	316438600 Frigidaire Range Sealed Burner, 14K
10D	WCI 316525401
11D	WCI 316525100
11A	316540700 Frigidaire Igniter/Orifice Assembly
11	316540800 Frigidaire Igniter/Orifice Assembly
11B	316543204 Frigidaire Igniter/Orifice Assembly
13	WCI 316545700
14	WCI 316470719
15	316091600 Frigidaire Oven Bracket
37	316540900 Frigidaire Oven Screw
44A	316527500 Frigidaire Oven Burner Orifice
44B	316527511 Frigidaire Oven Orifice
44	316527504 Frigidaire Oven Orifice
44D	WCI 316523508
284	316536100 Frigidaire Transformer
