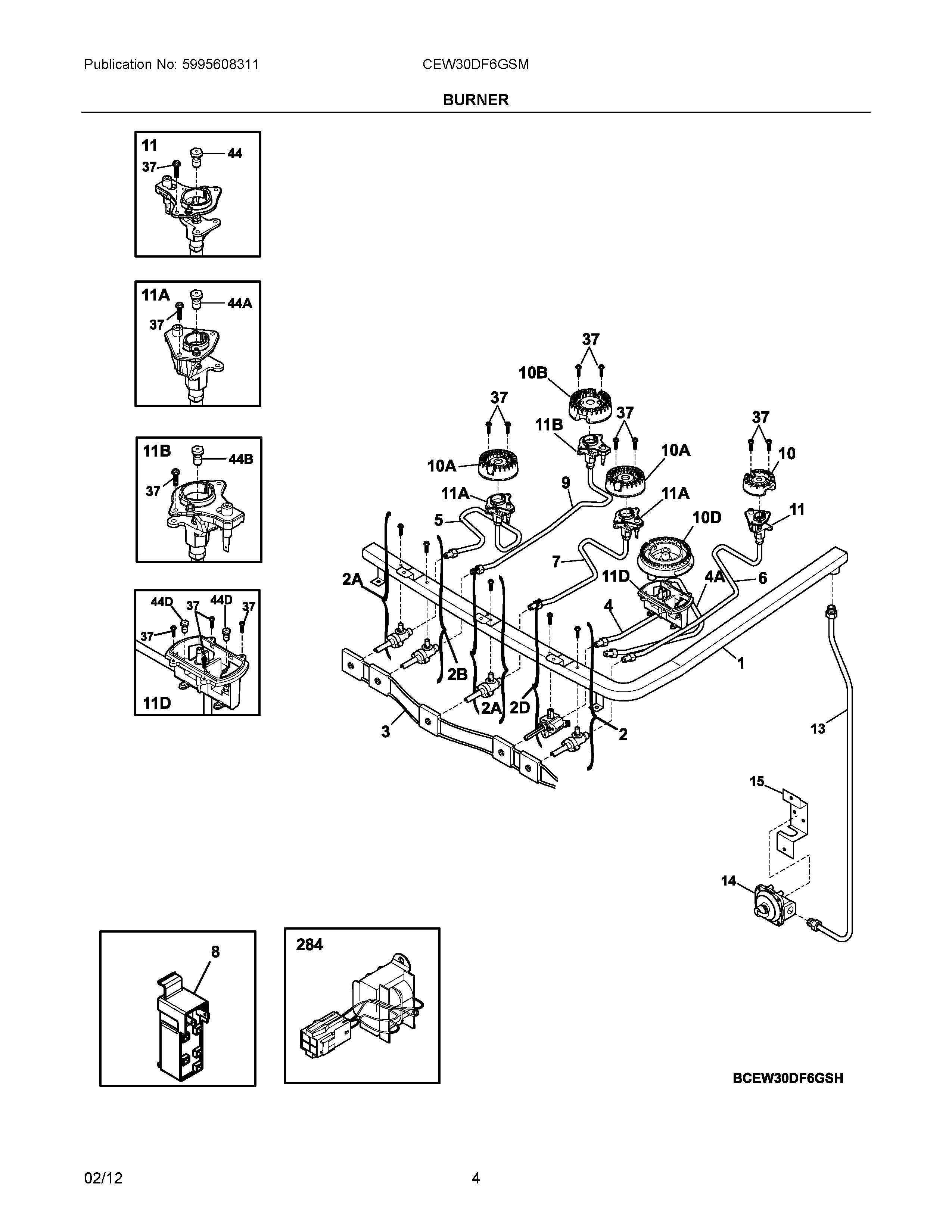

CEW30DF6GSM 03 – BURNER

CEW30DF6GSM 03 – BURNER

Written by

in

CEW30DF6GSM 03 – BURNER

Products

PositionProduct
NIA316021104 Frigidaire Oven Screw Assembly
NIWCI 316526900
NIDAWCI 316434900
NIWCI 316443201
NI316001017 Frigidaire Screw
NI316021105 Frigidaire Oven Screw
NI316215600 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
1WCI 316505200
2DVALVE, TOP BURNER, 18K
25303935308 Frigidaire Oven Valve
2A5303935305 Frigidaire Oven Valve
2B5303935307 Frigidaire Oven Valve
3WCI 316580622
4WCI 316509000
4AWCI 316509100
5WCI 316509300
6WCI 316509200
7WCI 316509400
85304508269 Frigidaire Oven Range Spark Module Kit
9WCI 316526600
10316438200 Frigidaire Range Sealed Burner, 5K
10DWCI 316525401
10B316438600 Frigidaire Range Sealed Burner, 14K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
11DWCI 316525100
11316540800 Frigidaire Igniter/Orifice Assembly
11B316543204 Frigidaire Igniter/Orifice Assembly
11A316540700 Frigidaire Igniter/Orifice Assembly
13WCI 316545700
14WCI 318122700
15316091600 Frigidaire Oven Bracket
37316540900 Frigidaire Oven Screw
44B316527511 Frigidaire Oven Orifice
44316527504 Frigidaire Oven Orifice
44A316527500 Frigidaire Oven Burner Orifice
44DWCI 316523508
284316536100 Frigidaire Transformer
