CEW30DF6GSM 05 – TOP/DRAWER – Aparts

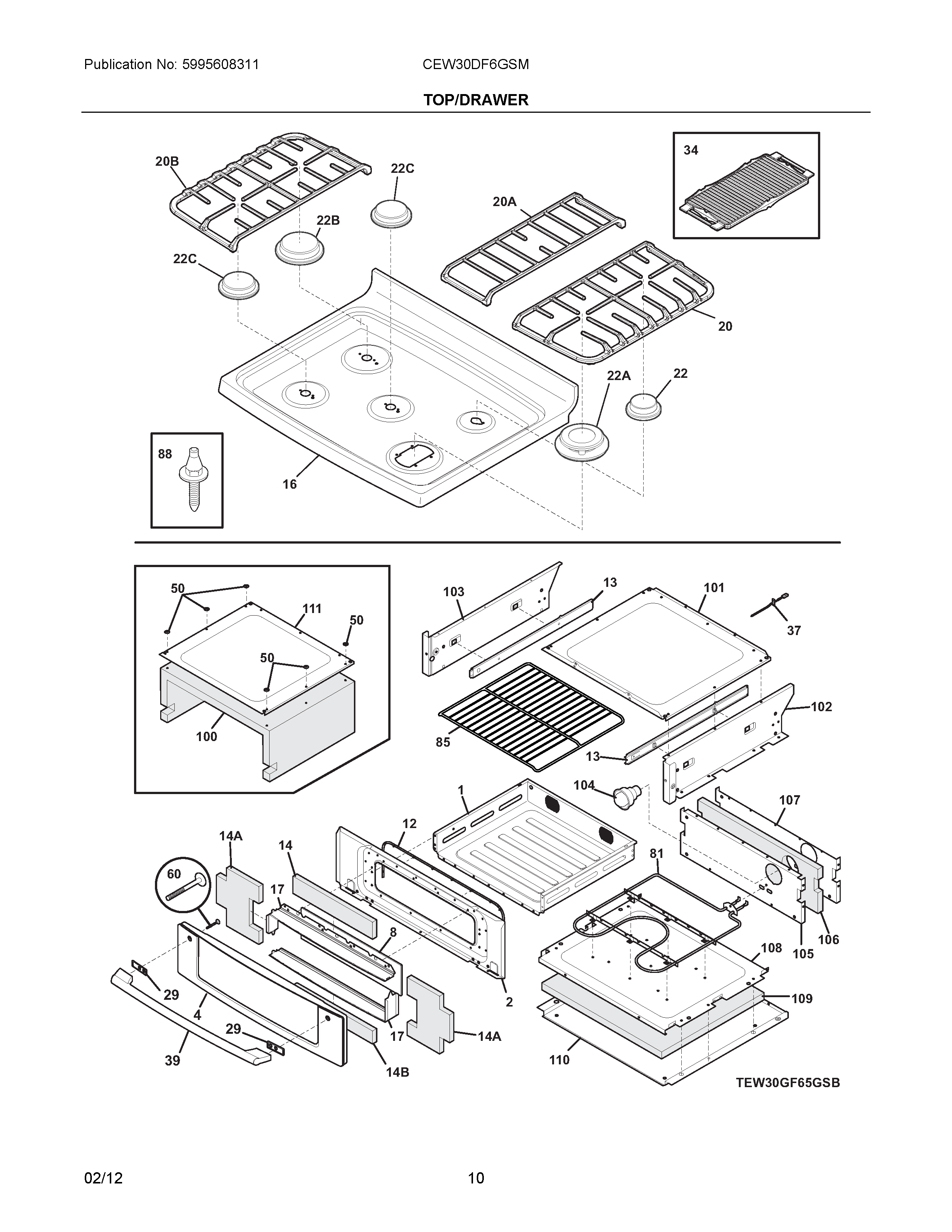

CEW30DF6GSM 05 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
1	WCI 316414107
2	WCI 316510301
4	WCI 316538207
8	WCI 316431902
12	WCI 316410702
13	WCI 316449801
14A	WCI 316451501
14	WCI 316451502
14B	WCI 316414203
16	WCI 316506823
17	WCI 316508001
20B	316538000 Frigidaire Oven Grate
20A	316537900 Frigidaire Oven Grate
20	316537800 Frigidaire Oven Grate
22A	WCI 316511502
22	316548600 Frigidaire Oven Cap
22C	316548700 Frigidaire Oven Cap
22B	Cap-burner,black ,large
29	WCI 316505401
34	5304495353 Frigidaire Oven Griddle
37	316217006 Frigidaire Oven Probe
39	HANDLE, DOOR, STAINLESS
49	WCI 316260000
50	WCI 316452100
60	5304507924 Frigidaire Oven Screw
81	WCI 316450903
85	WCI 316411000
88	316099500 Frigidaire Oven Pin
100	WCI 316451300
101	WCI 316410201
102	WCI 316450501
103	WCI 316450503
104	WCI 316431501
105	WCI 316450803
106	WCI 316451400
107	WCI 316451603
108	WCI 316410101
109	WCI 316410800
110	WCI 316410401
111	WCI 316450401
