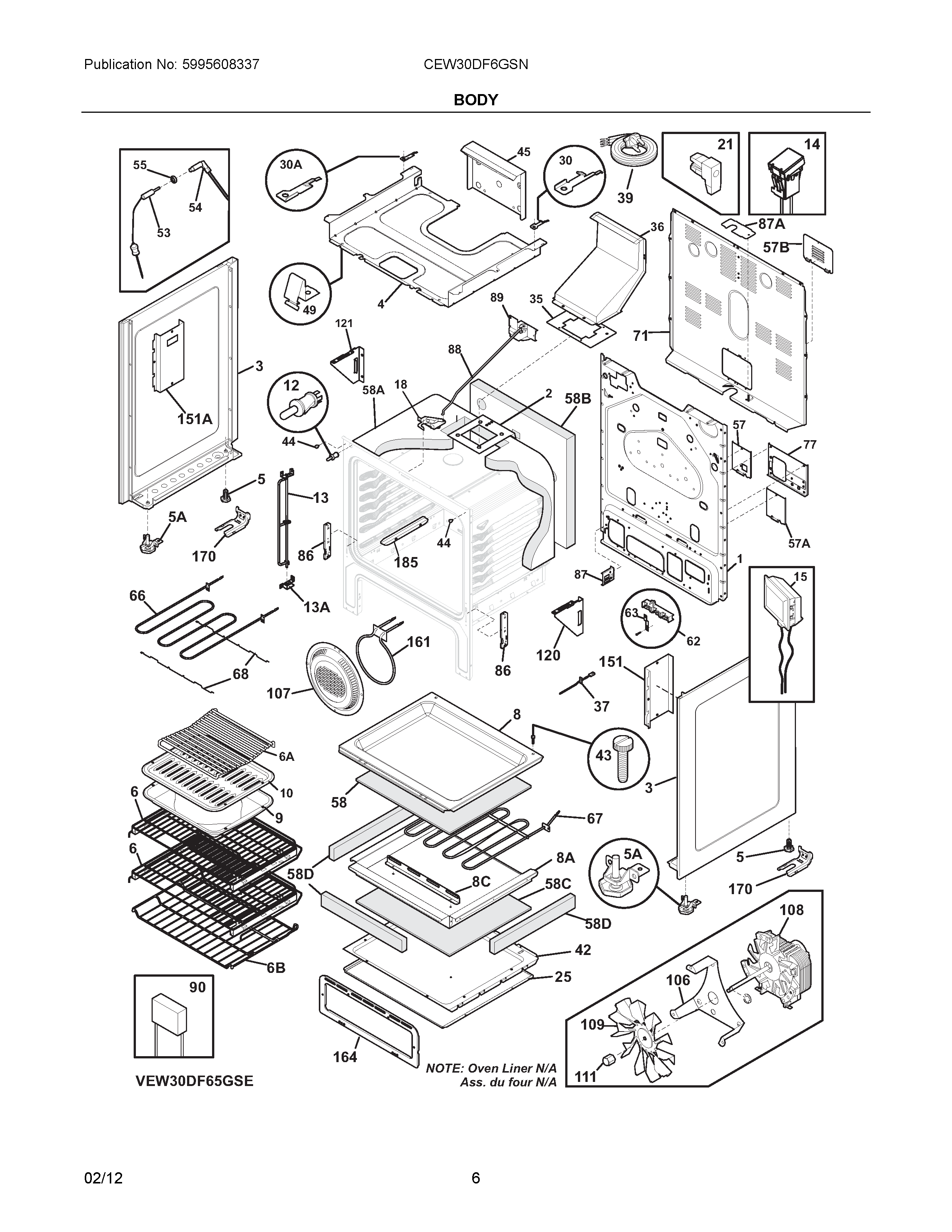

CEW30DF6GSN 04 – BODY

CEW30DF6GSN 04 – BODY

Written by

in

CEW30DF6GSN 04 – BODY

Products

PositionProduct
NI316279600 Frigidaire Screw
NI316021132 Frigidaire Screw
NIB316116000 Frigidaire Screw
NIA316534100 Frigidaire Oven Washer
NIWCI 316581300
NIA316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NIA316001017 Frigidaire Screw
NIB316205500 Frigidaire Oven Nut
NIWCI 316512569
NI316539800 Frigidaire Oven Retainer
NI316021109 Frigidaire Oven Screw
NI5303289910 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1WCI 316504503
2WCI 316525800
3WCI 316400124
3AWCI 316400125
4BOX, BURNER
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6316571800 Frigidaire Rack Assembly
6B316496205 Frigidaire Oven Rack
6AWCI 318219500
8WCI 316505602
8A316505701 Frigidaire Oven Base
8C316505801 Frigidaire Oven Support
9316081901 Frigidaire Oven Baking Pan
10316082001 Frigidaire Oven Insert
12316445500 Frigidaire Oven Switch
13WCI 316529005
13AWCI 316543000
14316508301 Frigidaire Switch Assembly Rack Sen
15WCI 316510701
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
25WCI 316505900
30316217700 Frigidaire Oven Bracket
30AWCI 316217701
35316542102 Frigidaire Flue Gasket
36WCI 316507901
37316490000 Frigidaire Oven Range Temperature Sensor
39WCI 318113111
42316407700 Frigidaire Oven Shield
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
45WCI 316508501
535304503737 Frigidaire Black Meat Temperature Probe
54WCI 316536902
55316247700 Frigidaire Oven Nut
57WCI 316451100
57B316283600 Frigidaire Oven Cover
57AWCI 316451101
58A316403700 Frigidaire Insulation
58WCI 316509500
58BWCI 316403601
58C316509600 Frigidaire Insulation
58D316509700 Frigidaire Insulation
625304409888 Frigidaire Oven Terminal Block with Hardware
63316278800 Frigidaire Oven Plate
66BROIL ELEMENT
67316505500 Frigidaire Oven Element
68316404002 Frigidaire Support Assembly
71316283202 Frigidaire Shield DSP
77WCI 316451201
86316580700 Frigidaire Door Hinge Receptacle
87WCI 316451001
87A316081202 Frigidaire Bracket
88316232702 Frigidaire Rod
89MOTOR
90WCI 316539900
106316404100 Frigidaire Oven Bracket
107WCI 316026702
108316256100 Frigidaire Oven Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
120WCI 316279204
121WCI 316279205
151A316404601 Frigidaire Oven Shield
151WCI 316404600
161316211603 Frigidaire Oven Element
164WCI 316450302
185316112900 Frigidaire SHIELD
