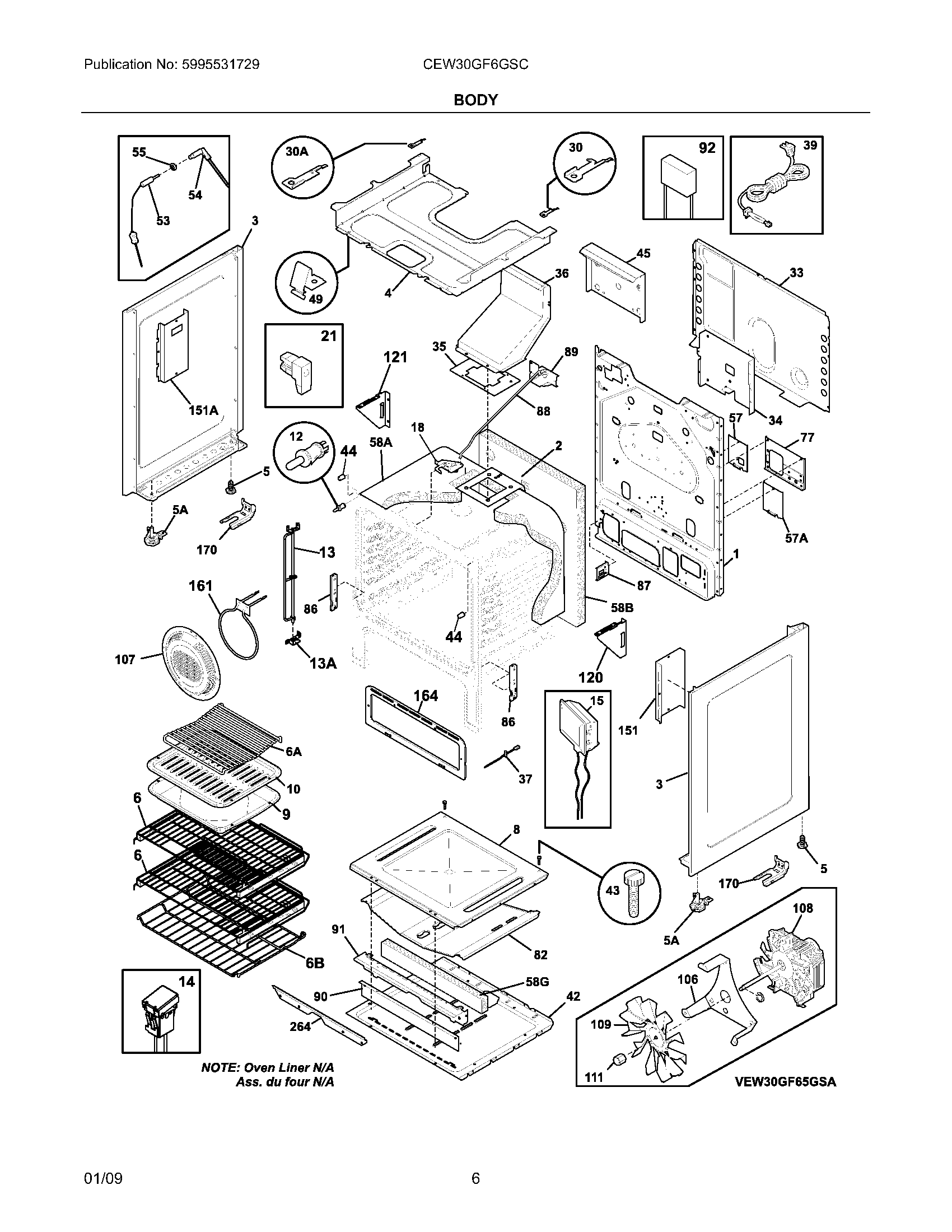

CEW30GF6GSC 07 – BODY

Products

Position	Product
NI	316247900 Frigidaire Oven Spacer
NI	316279600 Frigidaire Screw
NI	316418901 Frigidaire Oven Screw
NI	316432800 Frigidaire Clip
NI	WCI 7316512500
NI	316008401 Frigidaire Washer P-1
NI	316534100 Frigidaire Oven Washer
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	5303285179 Frigidaire Oven Door Screw
NI	5303271648 Frigidaire Oven Screw
NI	316021132 Frigidaire Screw
1	WCI 7316504501
2	WCI 7316525800
3	WCI 7316400125
3	WCI 7316400124
4	WCI 7316505300
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6A	WCI 7318219500
6B	316496205 Frigidaire Oven Rack
6	316571800 Frigidaire Rack Assembly
8	316400603 Frigidaire Oven Stove Bottom Panel
9	316081901 Frigidaire Oven Baking Pan
10	316082001 Frigidaire Oven Insert
12	316445500 Frigidaire Oven Switch
13	WCI 7316529004
13A	WCI 7316543000
14	316508301 Frigidaire Switch Assembly Rack Sen
15	5304523863 Frigidaire Lamp Assembly
18	316405800 Frigidaire Assembly Latch
21	316408000 Frigidaire Oven Clip Assembly
30A	WCI 7316217701
30	316217700 Frigidaire Oven Bracket
33	316402500 Frigidaire Oven Shield
34	WCI 7316404200
35	316542102 Frigidaire Flue Gasket
36	WCI 7316507901
37	316490000 Frigidaire Oven Range Temperature Sensor
39	5304534000 Frigidaire Cord
42	316400700 Frigidaire Shield
43	316282700 Frigidaire Oven Screw
44	316517600 Frigidaire Oven Spacer
45	WCI 7316508501
49	WCI 7316540600
53	5304504202 Frigidaire Red Meat Temperature Probe
54	WCI 7316536901
55	316247700 Frigidaire Oven Nut
57A	WCI 7316451101
57	WCI 7316451100
58B	WCI 7316403601
58G	08067973 Frigidaire 0 Insulation
58A	316403700 Frigidaire Insulation
77	WCI 7316451200
82	316400801 Frigidaire Oven Shield
86	316580700 Frigidaire Door Hinge Receptacle
87	WCI 7316451000
88	316232702 Frigidaire Rod
89	MOTOR
90	WCI 7316401100
91	WCI 7316401000
92	WCI 7316539900
106	316404100 Frigidaire Oven Bracket
107	WCI 7316026702
108	5304467897 Frigidaire Oven Kit
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
120	WCI 7316279202
121	WCI 7316279203
151	316404601 Frigidaire Oven Shield
151	WCI 7316404600
161	WCI 7316211604
164	WCI 7316450302
170	WCI 7316107200
170	WCI 7316541700
170	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170	316116000 Frigidaire Screw
264	316404700 Frigidaire Bracket
