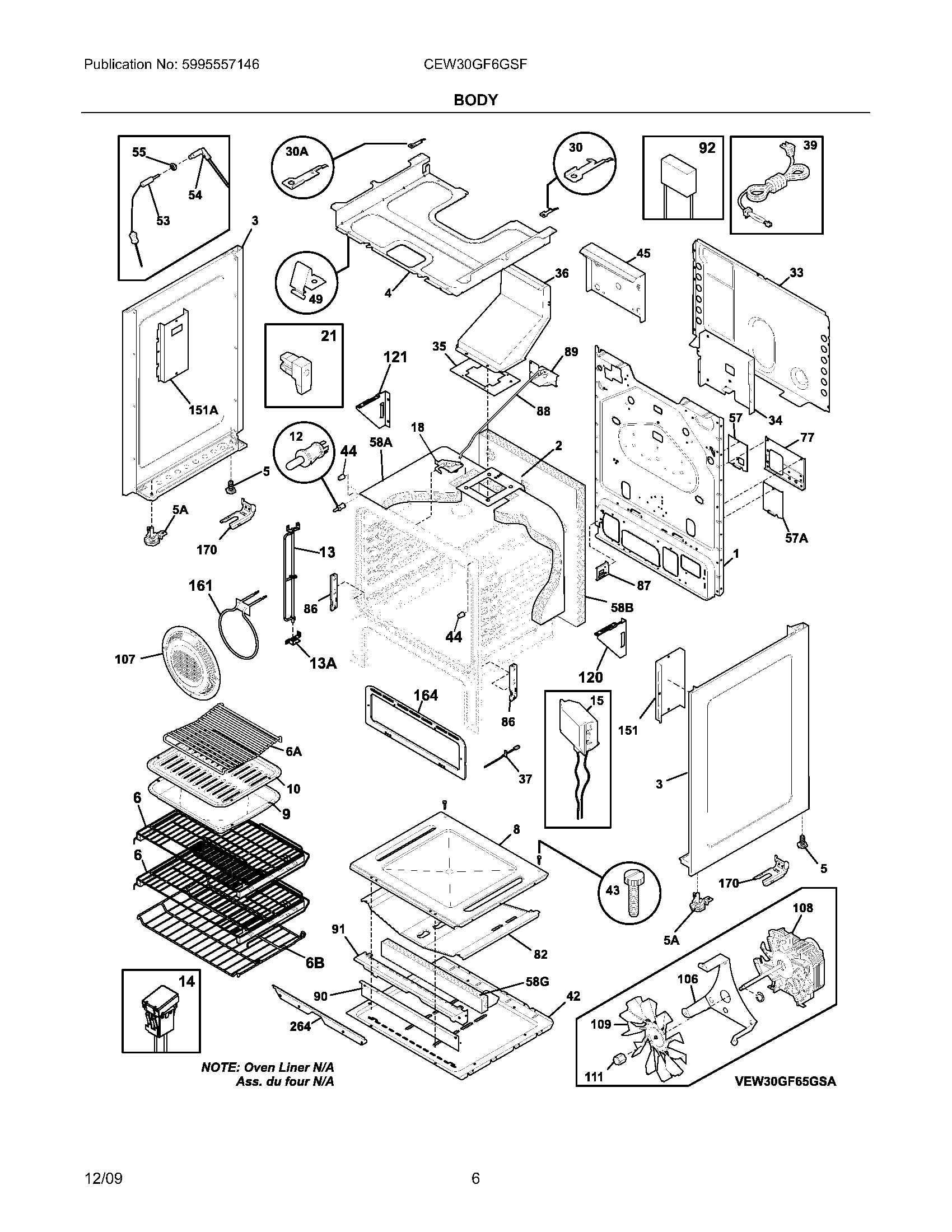

CEW30GF6GSF 07 – BODY

CEW30GF6GSF 07 – BODY

Written by

in

CEW30GF6GSF 07 – BODY

Products

Position	Product
NI	316089500 Frigidaire Oven Screw
NI	316279600 Frigidaire Screw
NI	316418901 Frigidaire Oven Screw
NI	316432800 Frigidaire Clip
NI	316534100 Frigidaire Oven Washer
NI	316021132 Frigidaire Screw
NI	WCI 316512527
NI	316001017 Frigidaire Screw
NI	316021109 Frigidaire Oven Screw
NI	5303285179 Frigidaire Oven Door Screw
NI	316021105 Frigidaire Oven Screw
NI	5303271648 Frigidaire Oven Screw
NI	OVEN RACK LUBRICANT
1	WCI 316504501
2	WCI 316525800
3	WCI 316400125
3	WCI 316400124
4	WCI 316505300
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
6	316571800 Frigidaire Rack Assembly
6A	WCI 318219500
6B	316496205 Frigidaire Oven Rack
8	316400603 Frigidaire Oven Stove Bottom Panel
9	316081901 Frigidaire Oven Baking Pan
10	316082001 Frigidaire Oven Insert
12	316445500 Frigidaire Oven Switch
13A	WCI 316543000
13	WCI 316529004
14	316508301 Frigidaire Switch Assembly Rack Sen
15	WCI 316510701
18	316405800 Frigidaire Assembly Latch
21	316408000 Frigidaire Oven Clip Assembly
30A	WCI 316217701
30	316217700 Frigidaire Oven Bracket
33	316402500 Frigidaire Oven Shield
34	WCI 316404200
35	316542102 Frigidaire Flue Gasket
36	WCI 316507901
37	316490000 Frigidaire Oven Range Temperature Sensor
39	5304534000 Frigidaire Cord
42	316400700 Frigidaire Shield
43	316282700 Frigidaire Oven Screw
44	316517600 Frigidaire Oven Spacer
45	WCI 316508501
49	WCI 316260000
53	5304504202 Frigidaire Red Meat Temperature Probe
54	WCI 316536902
55	316247700 Frigidaire Oven Nut
57A	WCI 316451101
57	WCI 316451100
58B	WCI 316403601
58A	316403700 Frigidaire Insulation
58G	08067973 Frigidaire 0 Insulation
77	WCI 316451200
82	316400801 Frigidaire Oven Shield
86	316580700 Frigidaire Door Hinge Receptacle
87	WCI 316451001
88	316232702 Frigidaire Rod
89	MOTOR
90	WCI 316401100
91	WCI 316401000
92	WCI 316539900
106	316404100 Frigidaire Oven Bracket
107	WCI 316026702
108	316256900 Frigidaire Oven Fan Motor
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
120	WCI 316279204
121	WCI 316279205
151	WCI 316404600
151	316404601 Frigidaire Oven Shield
161	WCI 316211604
164	WCI 316450302
170	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170	316116000 Frigidaire Screw
264	316404700 Frigidaire Bracket
