CEW3D5DLX 02 – CONTROL PANEL – Aparts

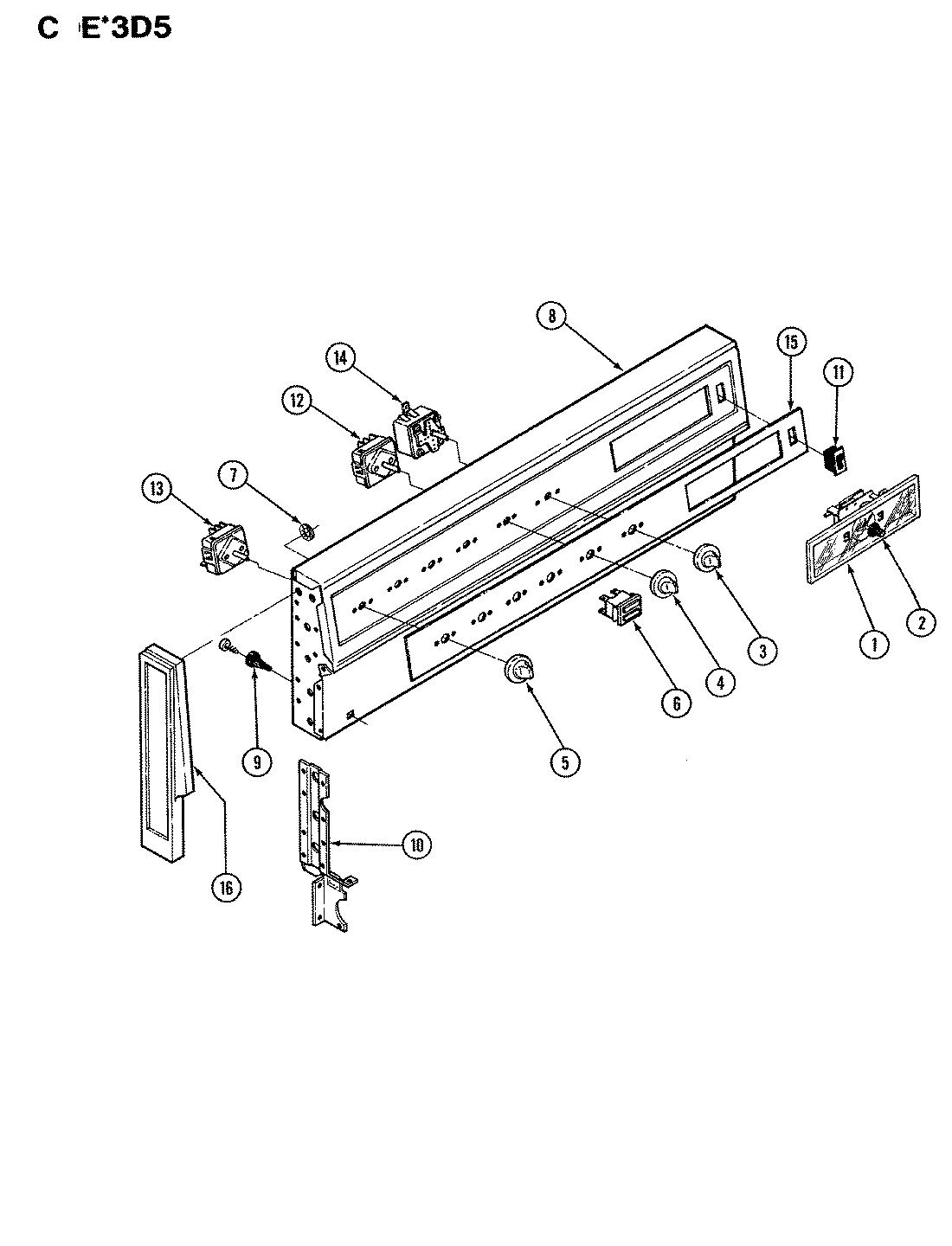

CEW3D5DLX 02 – CONTROL PANEL

Products

Position	Product
1	MAY 7902P108-60
1	MAY 4005F295-51
1	MAY 4005F296-51
1	MAY 4005F252-80
1	MAY 7602P085-60
2	MAY 7711P126-60
4	MAY 7711P320-60
5	MAY 7711P321-60
6	MAY 7407P068-60
7	WP4159193 Whirlpool Screw
8	MAY 7212P032-60
8	MAY 2601W258-81
8	MAY 2601W283-81
9	SPACER, HINGE (MAIN TOP)
10	MAY 3807F348-51
10	MAY 3807F349-51
11	7403P067-60 Whirlpool Light Switch
12	MAY 7403P031-60
13	W11122006 Whirlpool Infinite Switch
14	MAY 7404P029-60
15	MAY 7703P235-60
16	MAY 7726P021-60
16	MAY 7726P010-60
