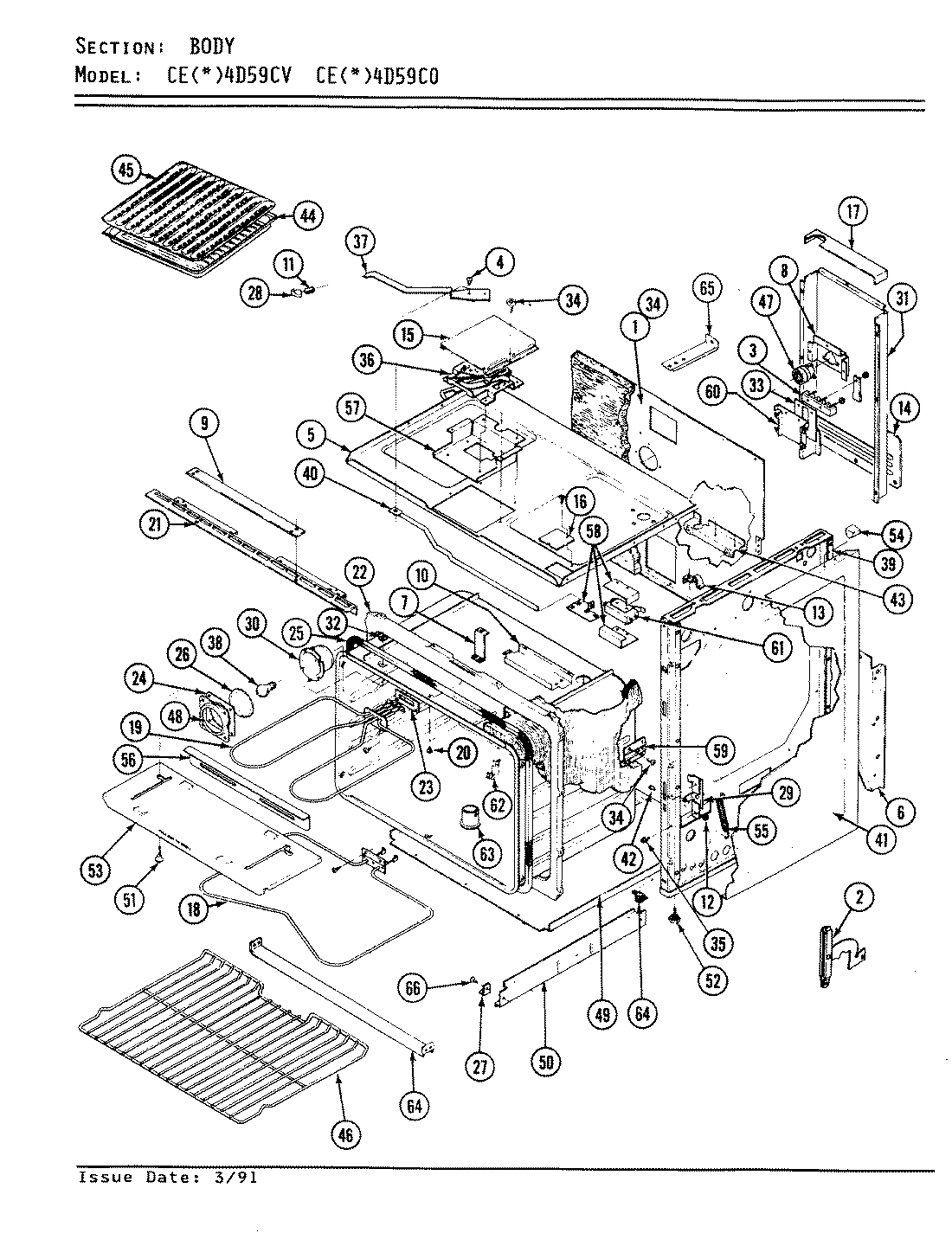

| 1 | MAY 4002F149-80 |
| 2 | MAY 3420A033-34 |
| 3 | MAY 7401P002-60 |
| 4 | MAY 7116P003-60 |
| 5 | MAY 4011F158-23 |
| 5 | MAY 4011F180-19 |
| 5 | MAY 4011F180-23 |
| 6 | MAY 3802F008-80 |
| 6 | MAY 3802F010-80 |
| 7 | MAY 3801F093-45 |
| 8 | MAY 3801F024-51 |
| 9 | MAY 3801F125-80 |
| 10 | MAY 3818F027-45 |
| 11 | MAY 7112P003-60 |
| 12 | MAY 7112P019-60 |
| 13 | MAY 7112P073-60 |
| 14 | MAY 4005F302-51 |
| 15 | MAY 4005F137-80 |
| 16 | MAY 4005F139-51 |
| 17 | MAY 4005F182-80 |
| 18 | MAY 7406P010-60 |
| 18 | MAY 7406P067-60 |
| 19 | MAY 7406P003-60 |
| 19 | MAY 8004P013-60 |
| 19 | MAY 7406P076-60 |
| 20 | WP74003976 Whirlpool Screw |
| 21 | MAY 4012F017-80 |
| 21 | WP98008545 Whirlpool Screw |
| 22 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 23 | MAY 7201P003-60 |
| 24 | MAY 7201P015-60 |
| 25 | MAY 7201P036-60 |
| 26 | MAY 7902P057-60 |
| 27 | MAY 8016P005-60 |
| 28 | MAY 7701P088-60 |
| 29 | MAY 3418A029-34 |
| 29 | MAY 8016P008-60 |
| 29 | MAY 3418A030-34 |
| 30 | MAY 4001F020-23 |
| 30 | MAY 7201P014-60 |
| 30 | MAY 4001F020-19 |
| 31 | MAY 4001F051-80 |
| 32 | MAY 7103P062-60 |
| 33 | MAY 7003P018-60 |
| 35 | WP4159193 Whirlpool Screw |
| 36 | MAY 8002P020-60 |
| 36 | MAY 7002P048-60 |
| 36 | MAY 3604F159-45 |
| 37 | MAY 8009P009-60 |
| 38 | MAY 7407P026-60 |
| 39 | MAY 7103P045-60 |
| 39 | MAY 4009W080-80 |
| 39 | MAY 7107P017-60 |
| 39 | MAY 4009W053-80 |
| 40 | MAY 7807P004-60 |
| 41 | MAY 2618F073-71 |
| 41 | MAY 2618F052-71 |
| 43 | PLATE, CONDUIT REINFORCEMENT |
| 44 | MAY 3401F004-23 |
| 45 | MAY 3413F002-23 |
| 46 | MAY 7801P030-60 |
| 47 | MAY 3604F007-80 |
| 47 | MAY 7408P002-60 |
| 48 | MAY 7101P064-60 |
| 48 | MAY 3804F012-45 |
| 49 | MAY 3804F102-80 |
| 49 | MAY 7101P061-60 |
| 49 | MAY 3804F093-80 |
| 50 | MAY 3406F052-70 |
| 50 | MAY 3406F027-51 |
| 51 | MAY 7118P001-60 |
| 52 | MAY Y7101P25460 |
| 53 | MAY 3604F092-45 |
| 54 | MAY 8010P048-60 |
| 54 | MAY 8003P011-60 |
| 55 | MAY 7803P055-60 |
| 56 | MAY 3807F176-15 |
| 57 | MAY 3807F1 |
