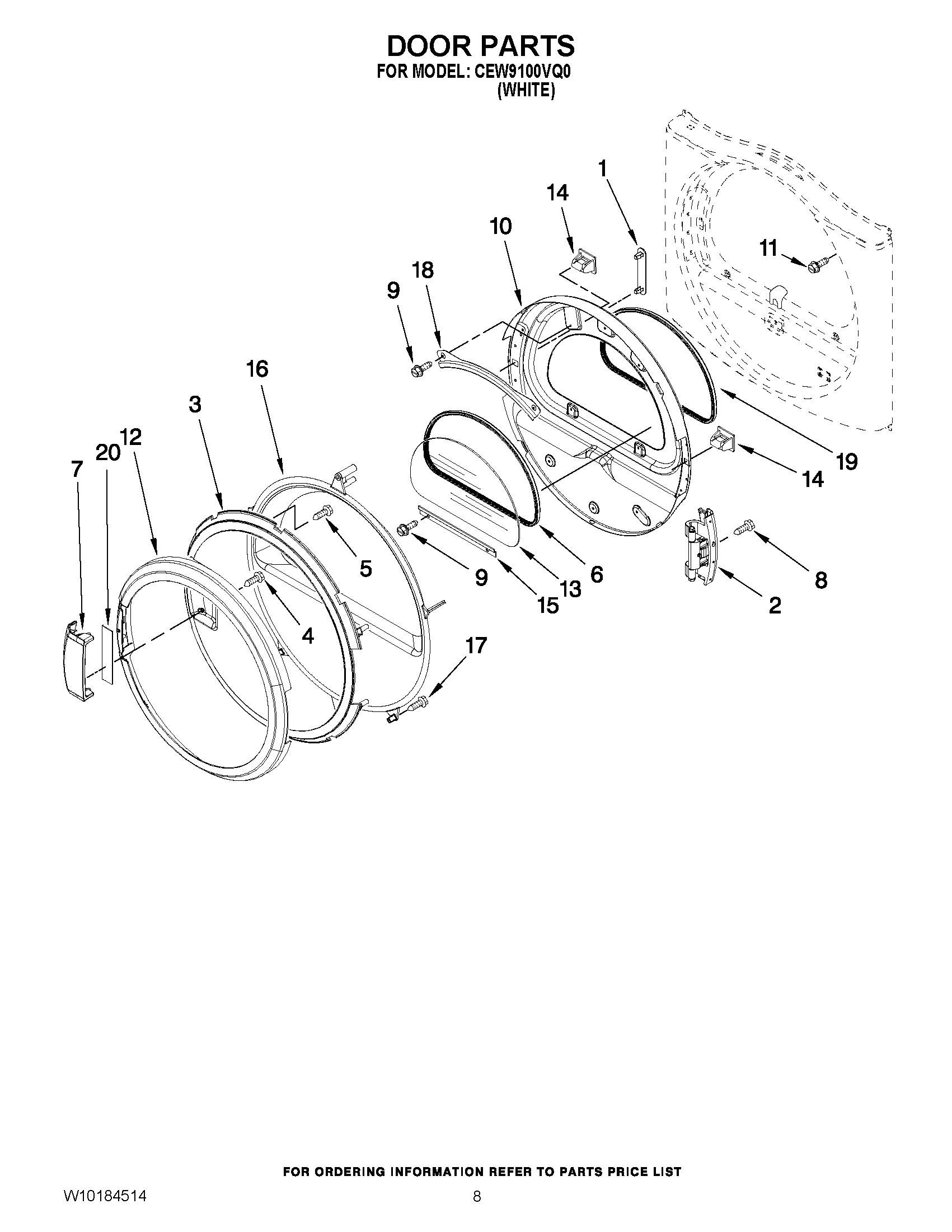

CEW9100VQ0 04 – DOOR PARTS

CEW9100VQ0 04 – DOOR PARTS

Written by

in

CEW9100VQ0 04 – DOOR PARTS

Products

PositionProduct
18565119 Whirlpool Plug
2Door, Hinge Assembly
3ASSEMBLY, DOOR INTERMEDIATE
4SCREW
53400618 Whirlpool Screw
6W11706993 Whirlpool Seal
8WPW10159996 Whirlpool Screw
9WP3373329 Whirlpool Dishwasher Screw
10WPW10164062 Whirlpool Door Assembly
11WP355515 Whirlpool Screw
12W11661105 Whirlpool Door Assembly
13WPW10286878 Whirlpool Window
14279570 Whirlpool Dryer Door Latch Kit
15W10822054 Whirlpool Retainer
16WINDOW
17WP8534022 Whirlpool Screw
188519356 Whirlpool Retainer
19CABINET (NOT A SERVICEABLE PART)
20WPW10112927 Whirlpool Control Pad
