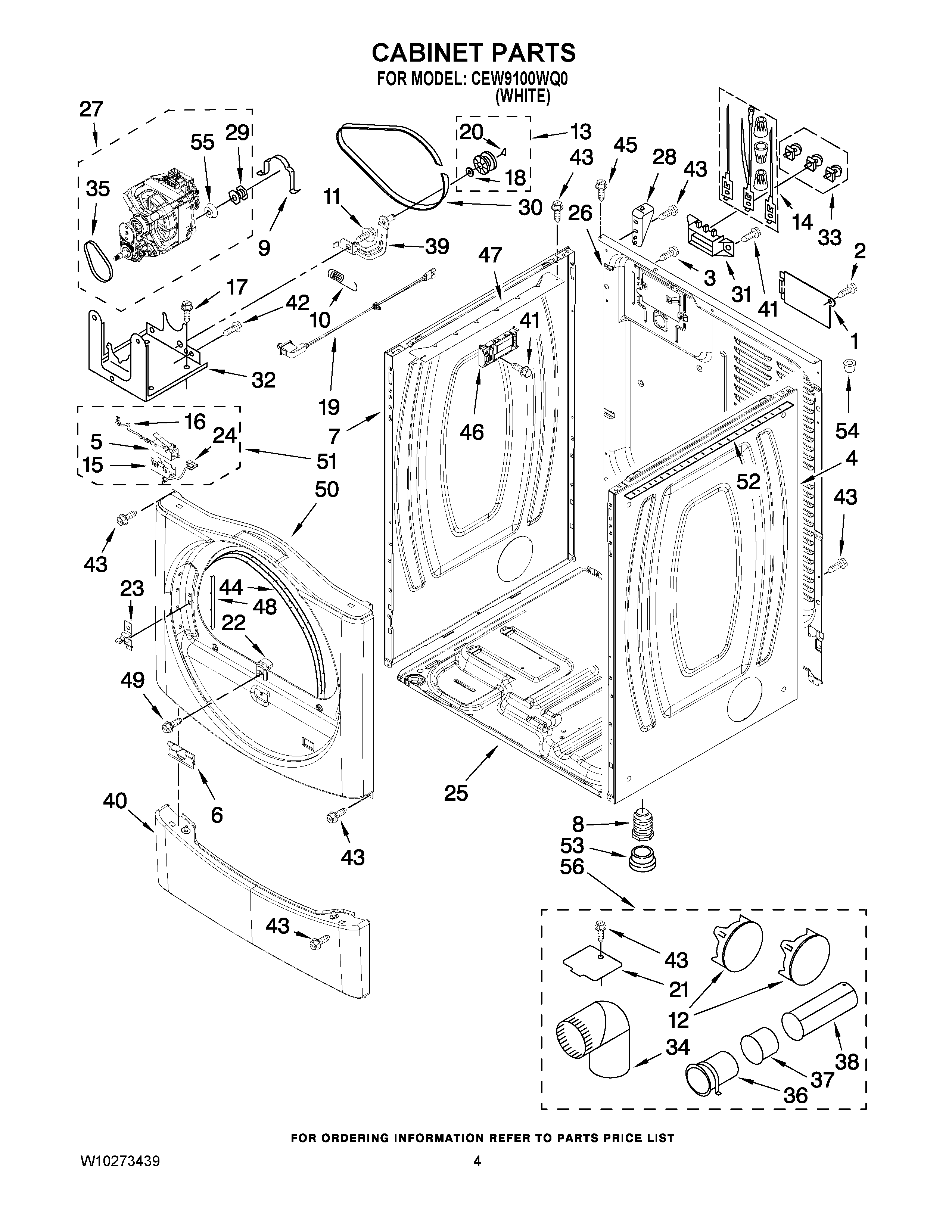

CEW9100WQ0 02 – CABINET PARTS

Products

Position	Product
1	WPW10119283 Whirlpool Terminal Cover
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	W10542714 Whirlpool Panel
5	WP8564010 Whirlpool Plug Switch
6	W11295573 Whirlpool Clip
8	49621 Whirlpool Leveling Feet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
15	8564011 Whirlpool Bracket
16	W10167613 Whirlpool Wire
17	SCREW
18	WPW10121334 Whirlpool Washer
19	W10128087 Whirlpool Door Switch
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10354249 Whirlpool Cover
22	8565083 Whirlpool Ramp Assembly
23	WP8565122 Whirlpool Strike Assembly
24	WIRE, MOTOR TO BELT SWITCH
25	W11215531 Whirlpool Base
26	Panel, Rear
27	W11234001 Whirlpool Drive Motor
28	W10137398 Whirlpool Block
29	WP8066184 Whirlpool Dryer Motor Pulley
30	WPW10131172 Whirlpool Belt
31	WP3397659 Whirlpool Terminal Block
32	W11676491 Whirlpool Base
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WPW10416072 Whirlpool Elbow
35	WP3405160 Whirlpool Belt Assembly
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	WPW10344192 Whirlpool Idler Pulley
40	WP8540621 Whirlpool Toe Panel
42	W10002600 Whirlpool Screw
43	WP488729 Whirlpool Refrigerator Door Screw
44	WP3387242 Whirlpool Seal
46	CONTROL BOARD
47	WP8563727 Whirlpool Bracket
48	8565043 Whirlpool Plug
49	WP308685 Whirlpool Microwave Screw
50	WPW10117421 Whirlpool Panel
51	W11247665 Whirlpool Switch
52	Seal, Foam
53	WP3391943 Whirlpool Foot Boot
54	WPL 356674
55	WP3393657 Whirlpool Belt Retainer
56	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
