CEX200VW1 01 – SECTION

CEX200VW1 01 – SECTION

Written by

in

CEX200VW1 01 – SECTION

Products

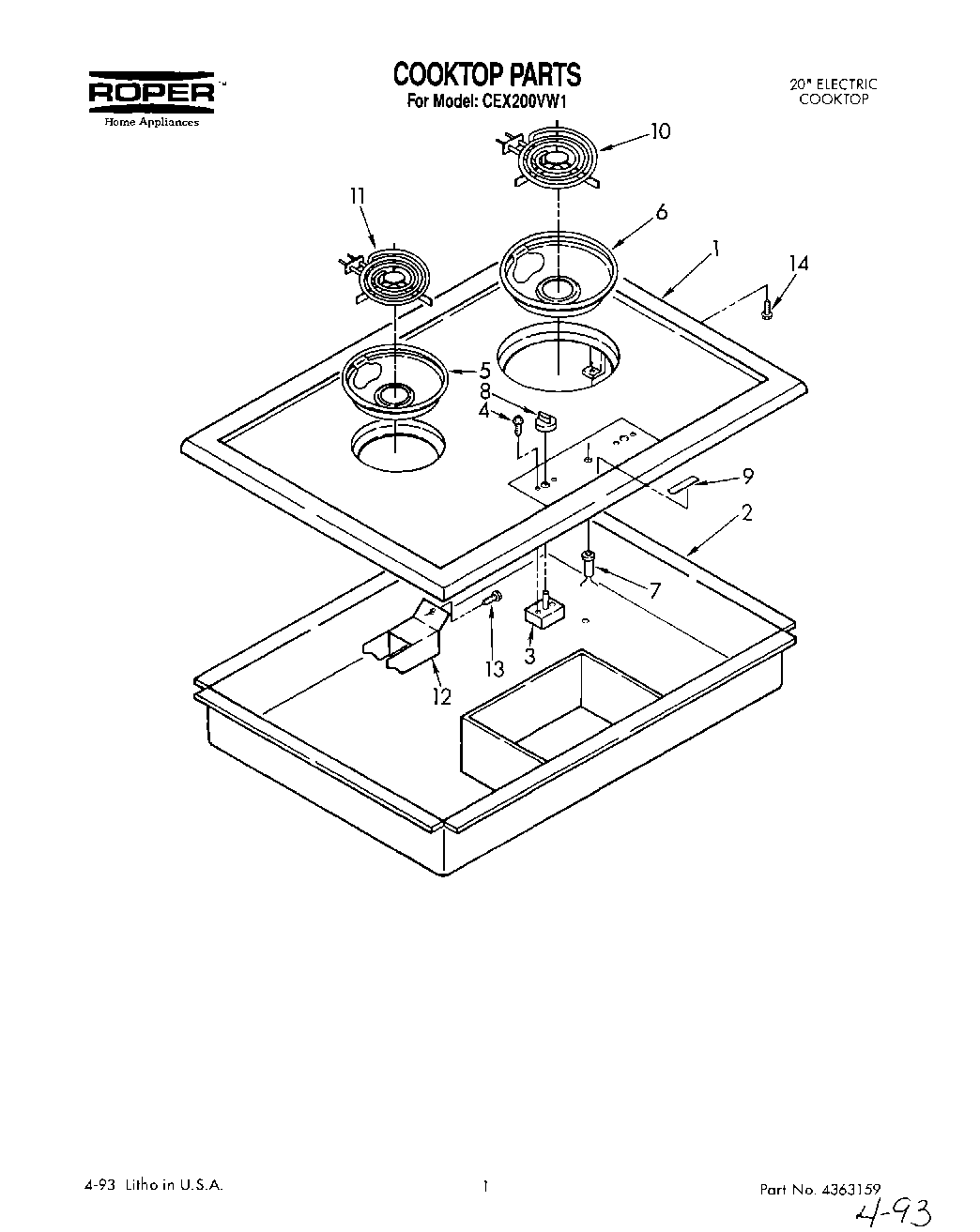

PositionProduct
List, Repair Parts
1Cooktop (Almond)
1Cooktop (Chrome)
1Cooktop (White)
2Burner Box
3Infinite Switch (2)
4Screw (4) No.8-32 x 3/18
5Drip Bowl, 6“
6DRIP BOWL 8" W/HOLE CHROME
7Indicator Light
8Knob, (2) Infinite Switch
9Nameplate – Roper
10Surface Element 8“ 120V
11Surface Element 6“ 120V
12BURNER RECEPTACLE KIT
13WP313808 Whirlpool Screw
14Guide, Use & Care
14Installation Guide
14Screw, 8-18 X 1/4 (2)
14Wiring Diagram
