CEX200VX0 02 – SECTION

CEX200VX0 02 – SECTION

Written by

in

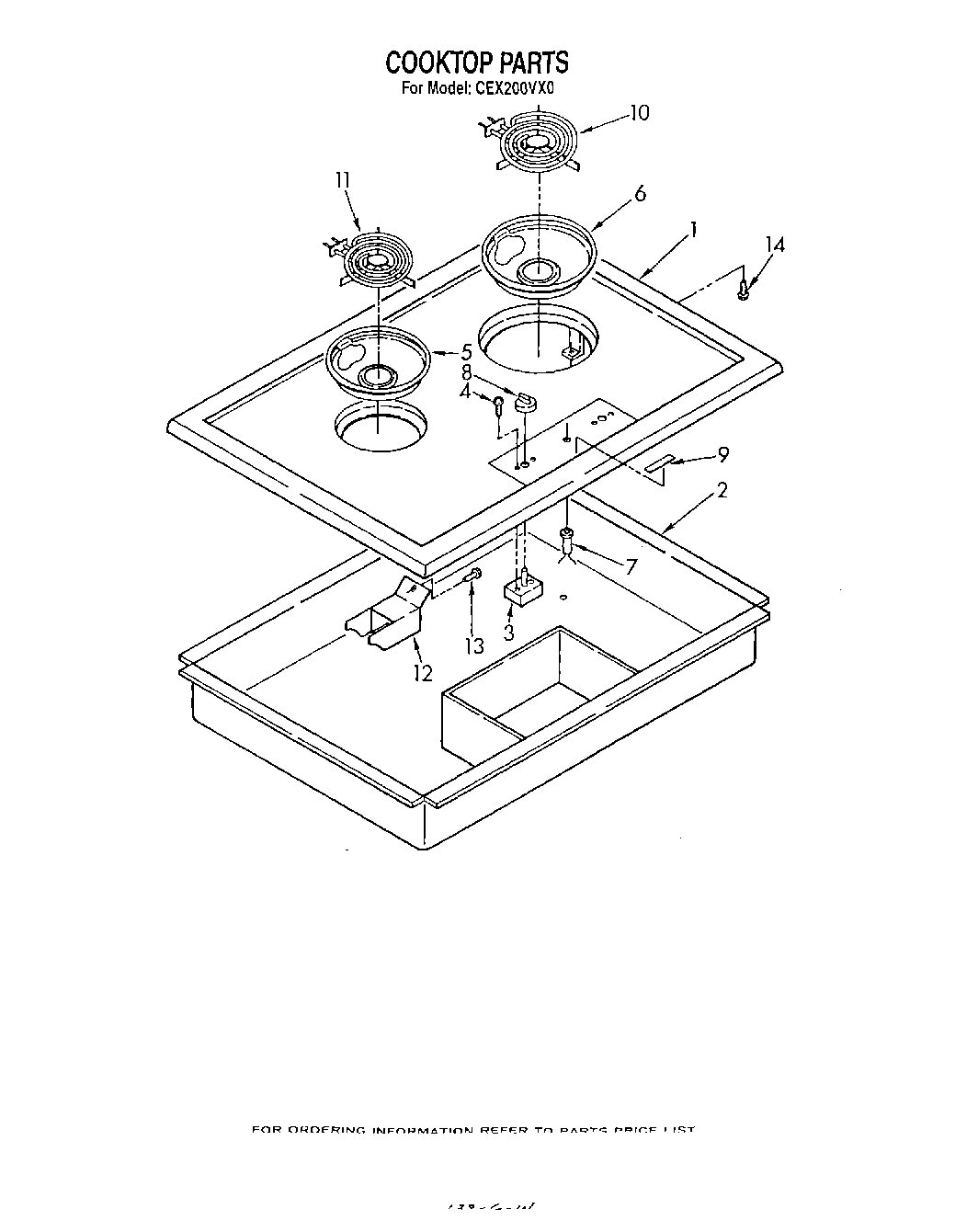

CEX200VX0 02 – SECTION

Products

PositionProduct
1Cooktop (Almond)
1Cooktop (Chrome)
1Cooktop (White)
2Burner Box
3Infinite Switch (2)
4Screw (4) No.8-32 x 3/18
5Drip Bowl, 6“
6DRIP BOWL 8" W/HOLE CHROME
7Indicator Light
8Knob, (2) Infinite Switch
9Nameplate – Roper
10Surface Element, 8“ 120 V
11Surface Element, 6“ 120V
12BURNER RECEPTACLE KIT
13WP313808 Whirlpool Screw
14Repair Parts List
14Screw, 8-18 X 1/4 (2)
14Installation Guide
14Guide, Use & Care
14Wiring Diagram
