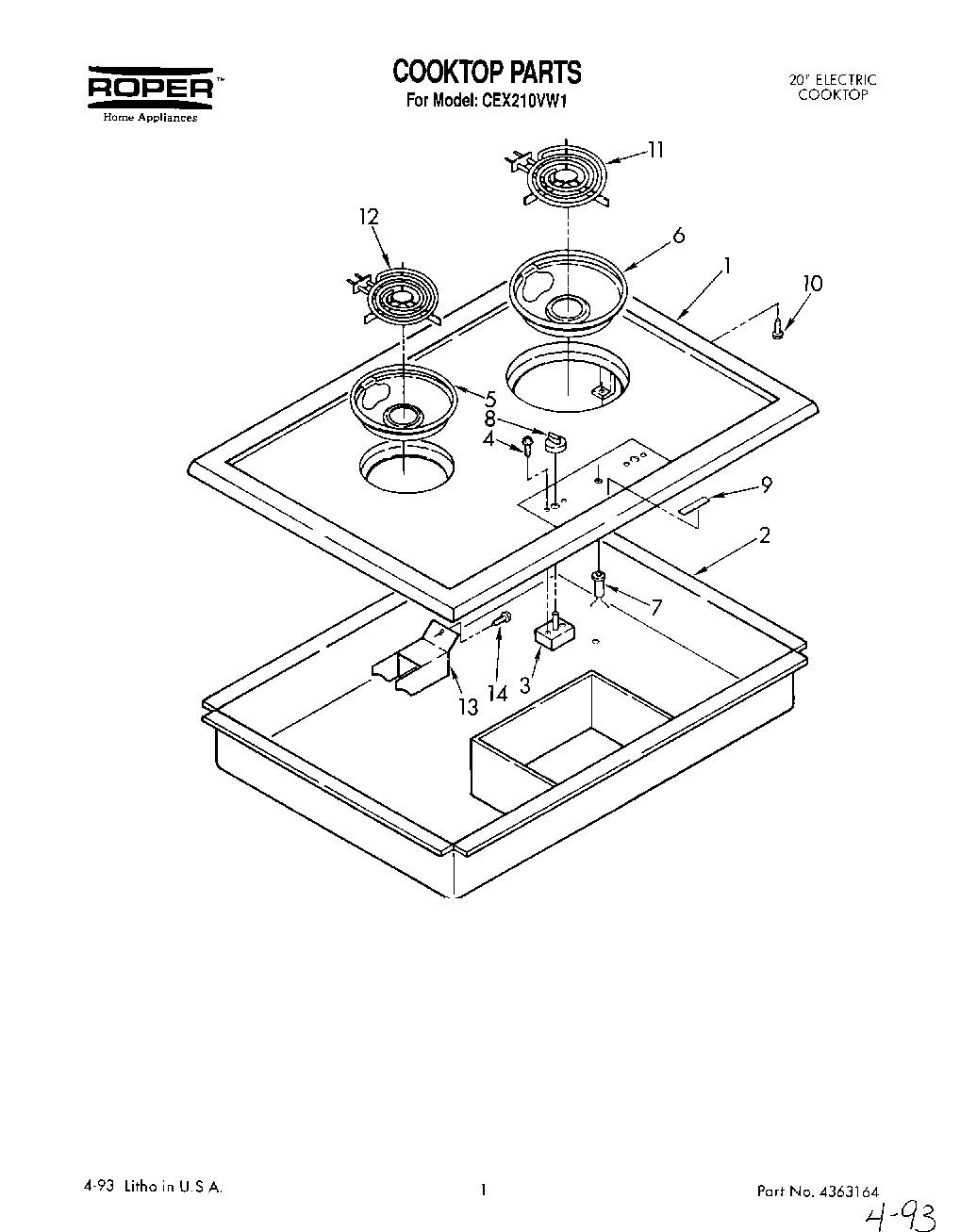

CEX210VW1 01 – SECTION

Products

Position	Product
	List, Repair Parts
1	Cooktop (White)
1	Cooktop (Almond)
1	Cooktop (Chrome)
2	Burner Box
3	W10900107 Whirlpool Oven Surface Element Switch
4	Screw (4) No.8-32 x 3/18
5	Drip Bowl, 6“
6	DRIP BOWL 8" W/HOLE CHROME
7	Indicator Light
8	Knob, (2) Infinite Switch
9	Nameplate – Roper
10	WP313808 Whirlpool Screw
11	WP660533 Whirlpool Oven 8" Surface Element
12	WP660532 Whirlpool Oven Surface Element
13	BURNER RECEPTACLE KIT
14	Screw, 8-18 X 1/4 (2)
14	Guide, Use & Care
14	Installation Guide
14	Wiring Diagram
