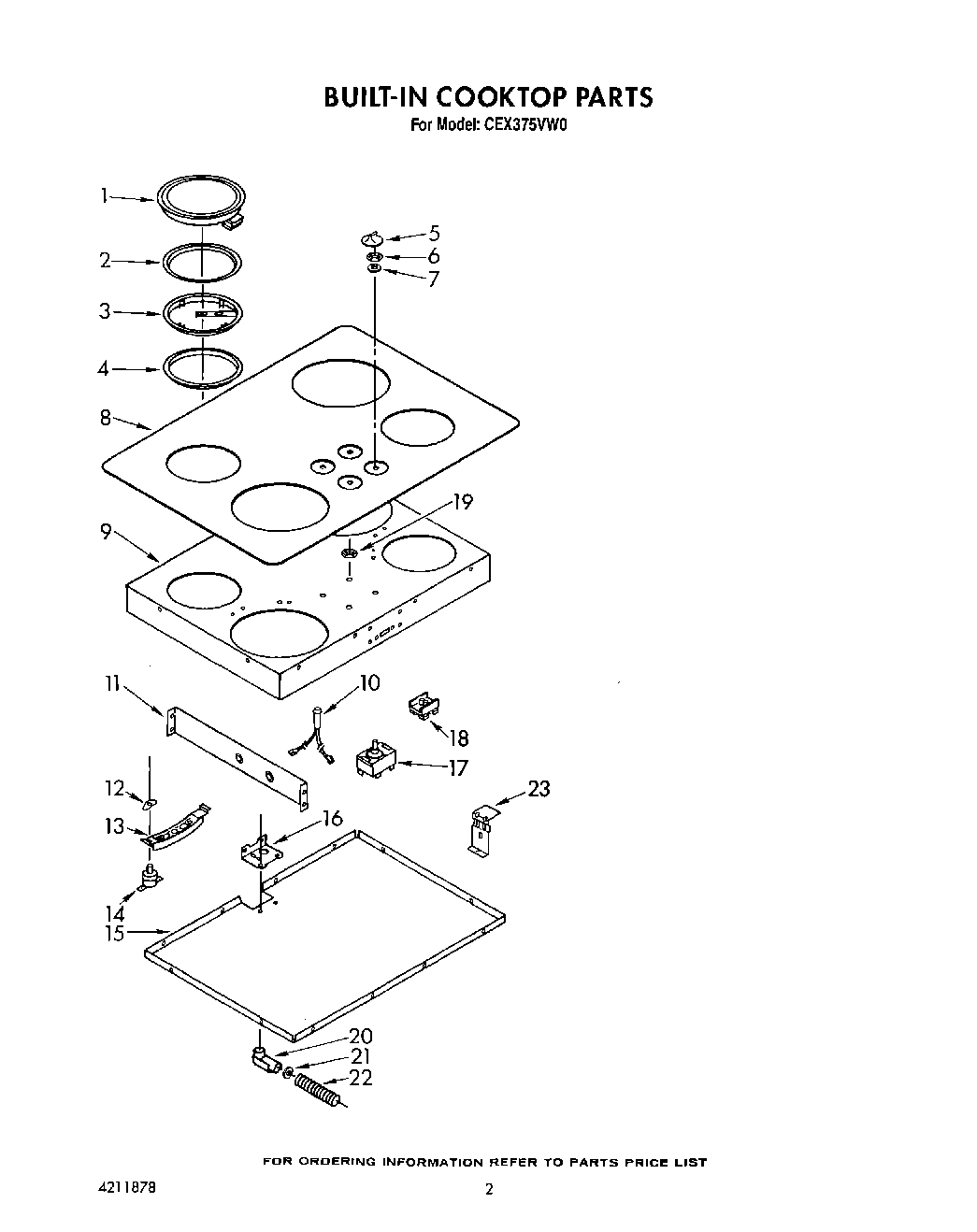

CEX375VW0 02 – SECTION

Products

Position	Product
	WPL LIT4211866
	WPL LIT4211867
	WPL LIT4211878
1	WP3147131 Whirlpool Surface Element
1	Surface Unit (Nut (4))
1	WP3147132 Whirlpool Surface Element
2	Ring, Trim (Black-6“(2))
2	Ring, Trim (Black – 8“ (2))
2	Ring, Trim (White – 8“ (2))
2	Ring, Trim (White-6“(2))
3	Collar, Intermediate (8“ (2))
3	Collar, Intermediate (6“(2))
4	Gasket (6“(2))
4	Gasket (8“ (2))
5	Knob, Control (White)
5	Knob, Control (Black)
6	Nut, Mounting (Single Element)
7	Seal, Shaft (4)
8	Cooktop, Glass (Black)
8	Cooktop, Glass (White)
9	Screw, 10-24 X 1/2
9	Washer
9	Burner Box
9	W10080180 Whirlpool Nut
10	Indicator Light (4)
11	Shield, Infinite Switch (2)
12	Spring, Leaf (4)
13	Bracket, Mounting (8“ (2))
13	Bracket, Mounting (6“(2))
13	Bracket, Mounting (Nut (4))
14	Protector, Thermal Switch (4)
15	Screw, 10-3/8 (14)
15	Cover, Burner Box
16	Bracket, Cable
16	Screw, (2) 10 x 3/8
17	Infinite Switch (4)
18	Terminal Block
18	Screw, (4) 10 x 3/4
19	Nut
20	90~ Connector
21	Bushing
22	Flex Cable
23	242831 Whirlpool Oven Wire
23	Wire (14 Ga. 200 c Brown)
23	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
23	Wire, 25“ Roll (White 14 GA.)
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25` Roll (Black 14 Ga.)
23	1
23	Wire (14 Ga. 150 c Blue)
23	WPL 4211858
23	Wire (14 Ga. 150 c Brown)
23	WPL 4211856
23	WPL 261961
23	Wire (14 Ga. 150 c Green)
23	18 Ga. 80~c Rating (Red)
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
