CEX630VL0 02 – SECTION

Products

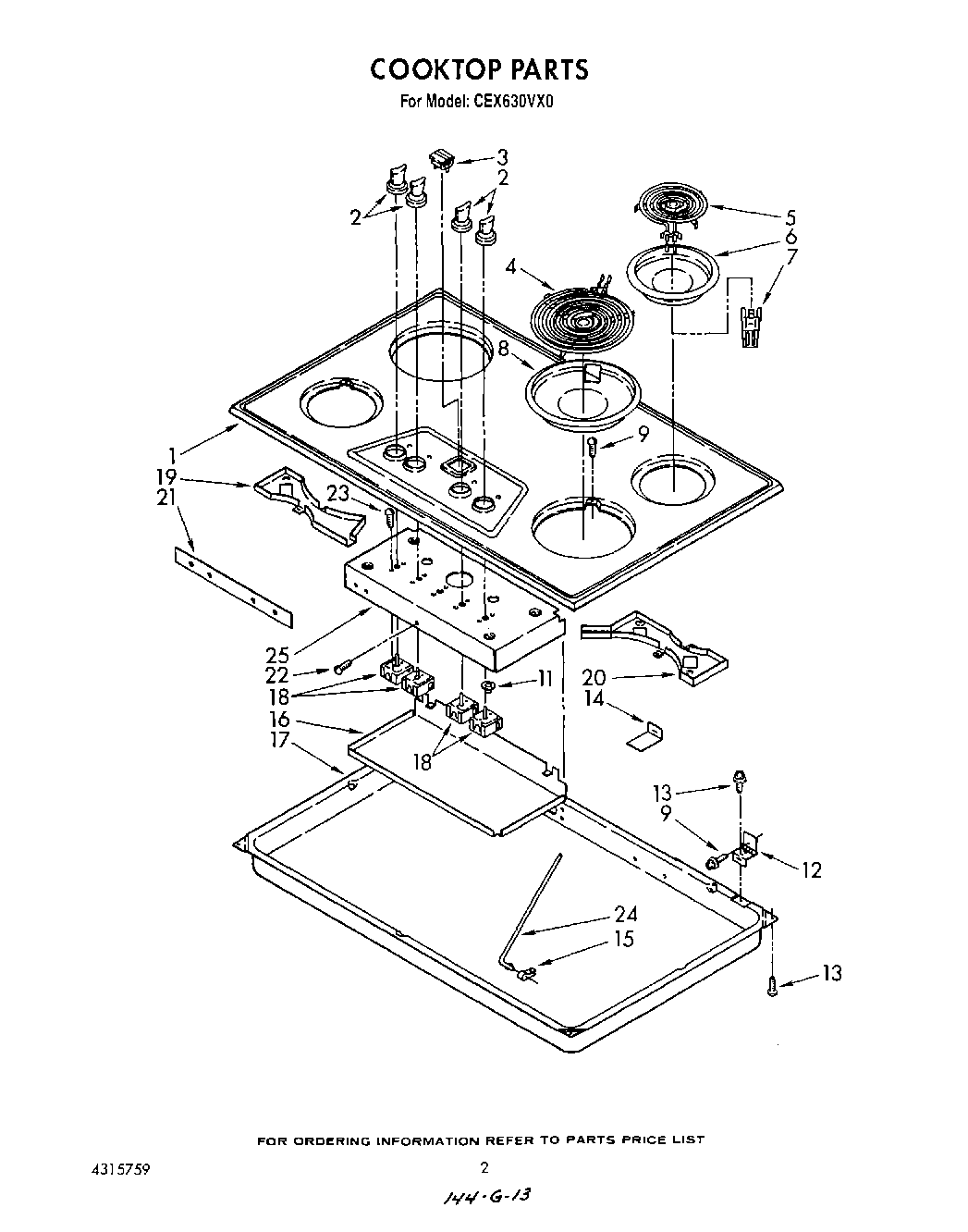

PositionProduct
1Cooktop (White)
1Cooktop (Almond)
1Cooktop (Chrome)
2Knob, (5) Infinite Switch
3Indicator Light
4WP660533 Whirlpool Oven 8" Surface Element
5WP660532 Whirlpool Oven Surface Element
6WPW10196406 Whirlpool 6" Chrome Drip Bowl
7BURNER RECEPTACLE KIT
8DRIP BOWL 8" W/HOLE CHROME
9WP313808 Whirlpool Screw
11Nut
12Hinge (2)
13WP965173 Whirlpool Dishwasher Screw
14Gasket, Switch
15WP488366 Whirlpool Refrigerator Clamp
16Cover, Switch Box
17Burner Box
18W10900107 Whirlpool Oven Surface Element Switch
19Wire Cover, Left
20Wire Cover, Right
21Nameplate
22WP308685 Whirlpool Microwave Screw
23Screw (4) No.8-32 x 3/18
24Rod, Support
25Guide, Use & Care
25Installation Guide
25Wiring Diagram
25Box, Control
25Repair Parts List
