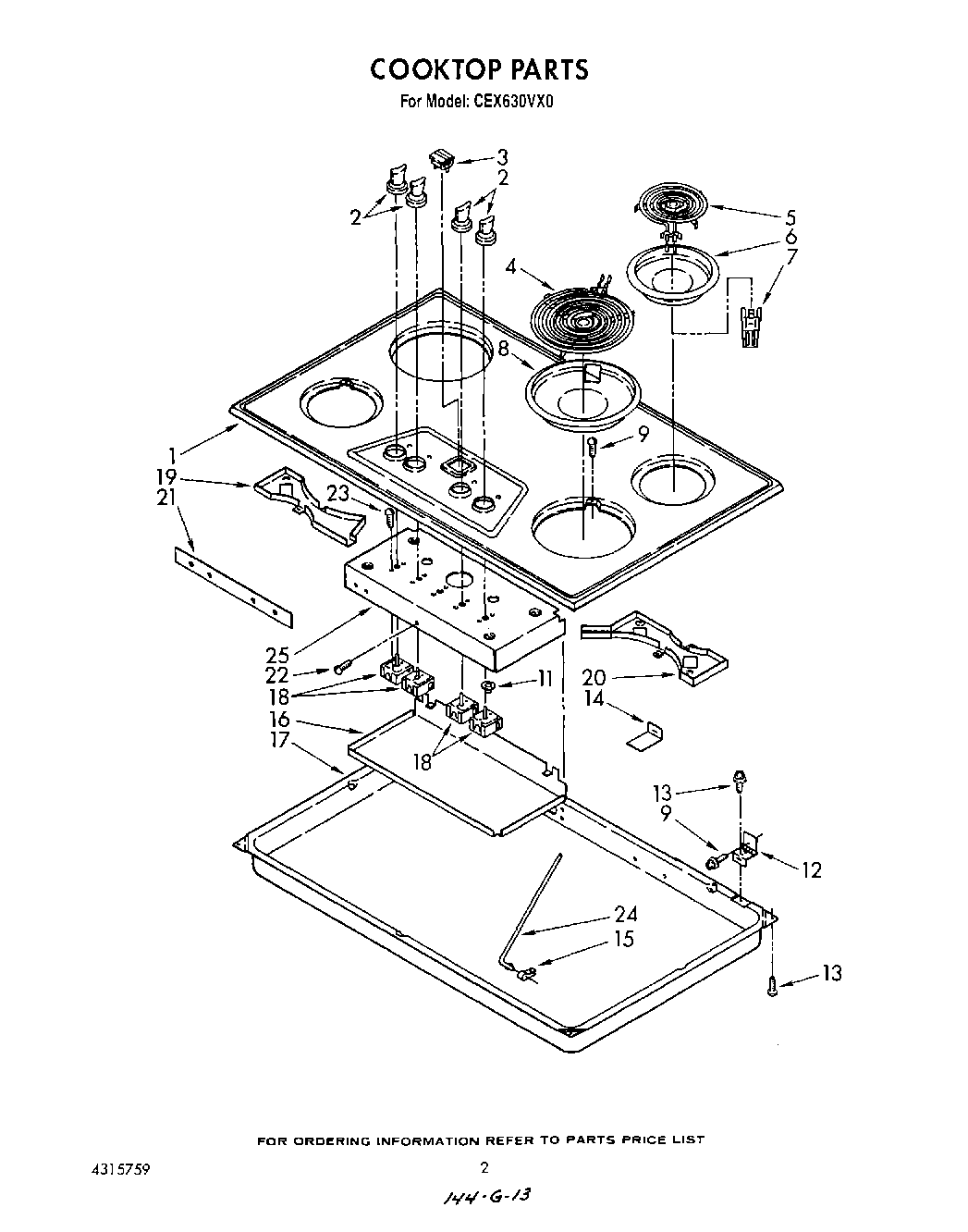

CEX630VX0 02 – SECTION

Products

Position	Product
1	Cooktop (White)
1	Cooktop (Almond)
1	Cooktop (Chrome)
2	Knob, (5) Infinite Switch
3	Indicator Light
4	WP660533 Whirlpool Oven 8" Surface Element
5	WP660532 Whirlpool Oven Surface Element
6	WPW10196406 Whirlpool 6" Chrome Drip Bowl
7	BURNER RECEPTACLE KIT
8	DRIP BOWL 8" W/HOLE CHROME
9	WP313808 Whirlpool Screw
11	Nut
12	Hinge (2)
13	WP965173 Whirlpool Dishwasher Screw
14	Gasket, Switch
15	WP488366 Whirlpool Refrigerator Clamp
16	Cover, Switch Box
17	Burner Box
18	W10900107 Whirlpool Oven Surface Element Switch
19	Wire Cover, Left
20	Wire Cover, Right
21	Nameplate
22	WP308685 Whirlpool Microwave Screw
23	Screw (4) No.8-32 x 3/18
24	Rod, Support
25	Guide, Use & Care
25	Installation Guide
25	Wiring Diagram
25	Box, Control
25	Repair Parts List
