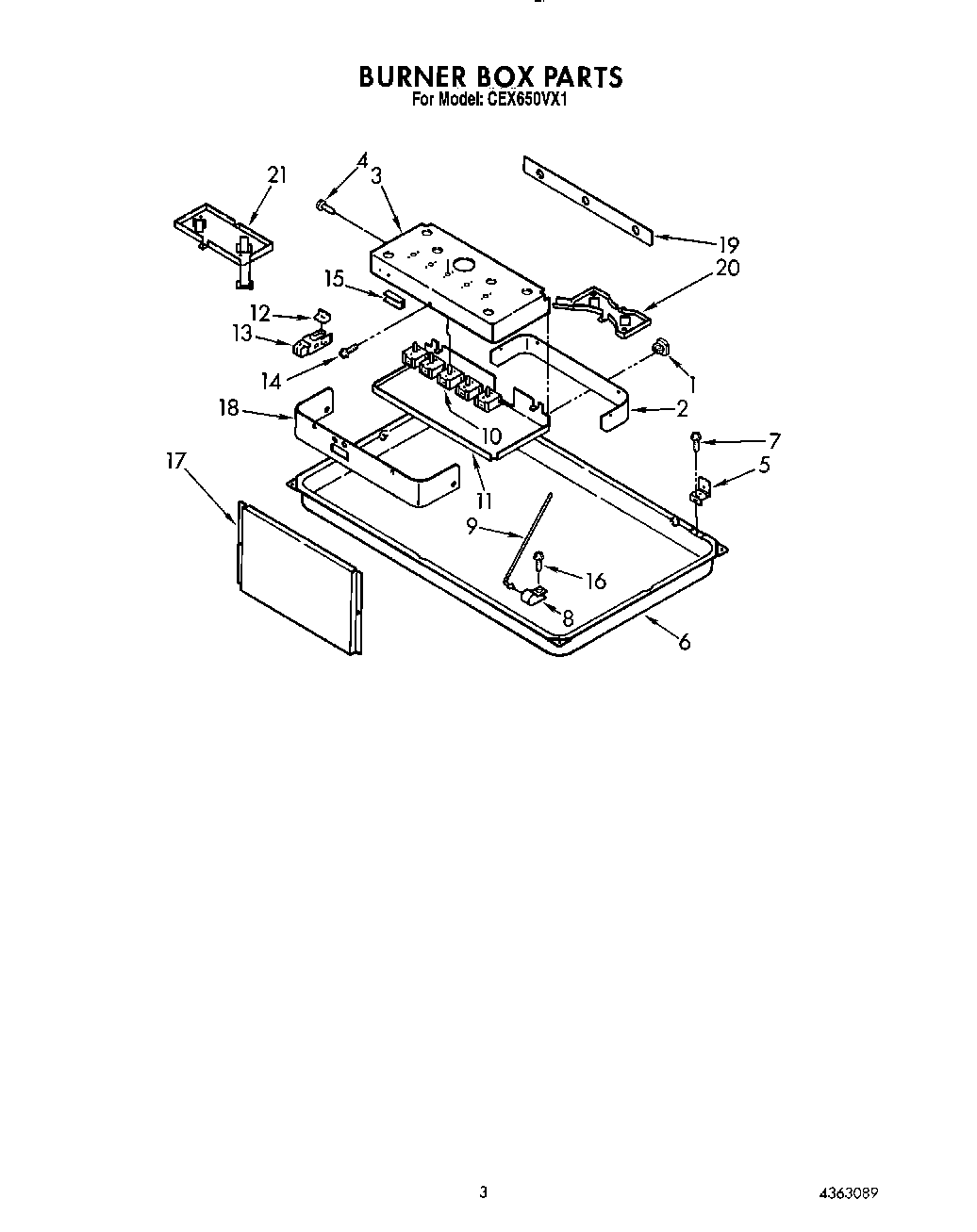

CEX650VX1 03 – SECTION

Products

Position	Product
1	Bushing, Snap
2	Heat Shield
3	Cover, Switch Box
4	Screw, 8-18 X 1/4 (2)
5	Hinge (2)
6	Burner Box
7	WP90767 Whirlpool Screw
8	WP488366 Whirlpool Refrigerator Clamp
9	Rod, Support
10	W10900107 Whirlpool Oven Surface Element Switch
11	Switch Box
12	Bracket, Griddle Terminal Block
13	BURNER RECEPTACLE KIT
14	WP965173 Whirlpool Dishwasher Screw
15	Block, Terminal
16	Screw (4) No.8-32 x 3/18
17	Heat Shield, Burner Box
18	Heat Shield, Front
19	Baffle, Heat
20	Wire Cover, Right
21	Wire Cover, Left
