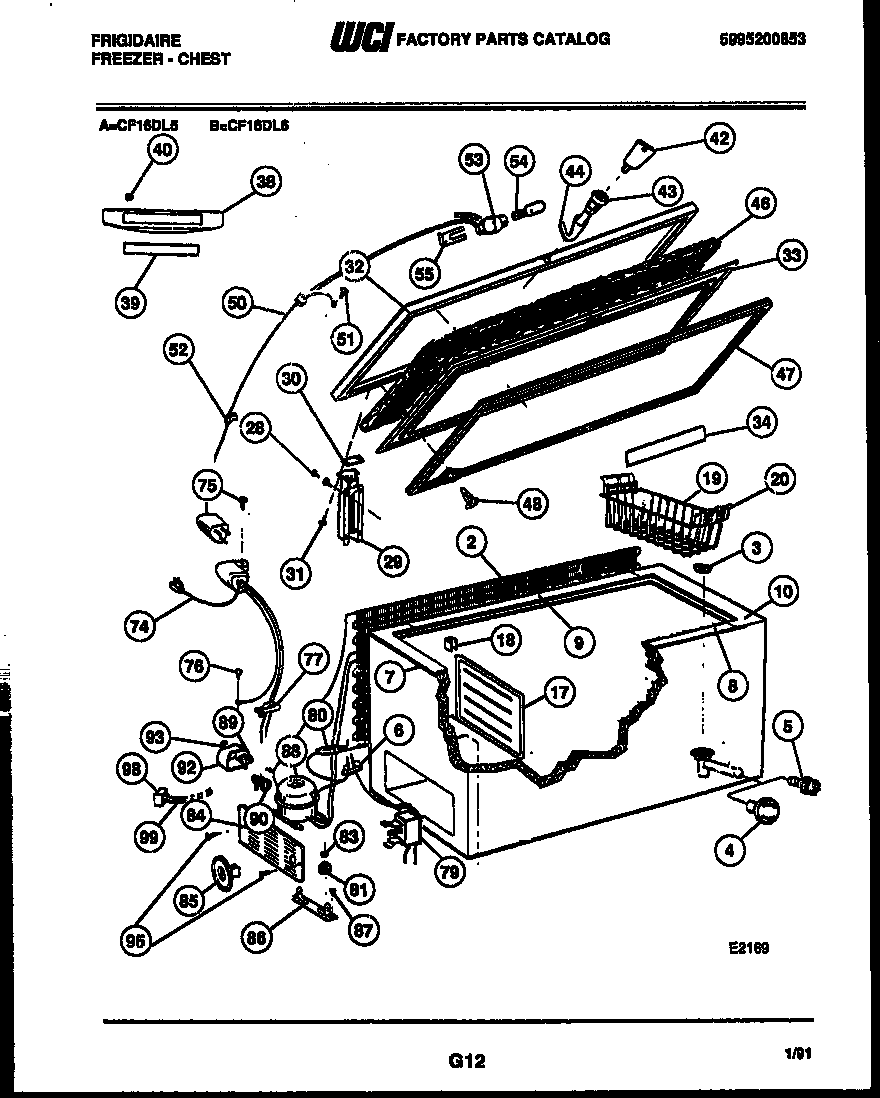

CF16DL6 02 – CHEST FREEZER PARTS

Products

PositionProduct
25303925238 Frigidaire Refrigerator Primary Condenser (O/S1)
3PLUG, DRAIN, LINER
4WCI 5306599932
5WCI 06594053
6GROMMET-CONTROL TUBE
7WCI 5303211221
9BREAKER REAR
10WCI 5303211222
17WCI 5308016784
18WCI 5306594584
19BASKET
20HANDLE BASKET-YELLOW
28SCREW HINGE BASE
29297321900 Frigidaire Refrigerator Hinge Assembly
30WCI 08037853
31WCI 5309950602
32WCI 3017738
33WCI 08016794
34LIGHT SHIELD
38WCI 5309950054
39WCI 08013602
40WCI 5309948647
42297147700 Frigidaire Freezer Plastic Door Key
43WCI 5300190358
44BLATCH CATCH SUPPORT
44ALATCH CATCH
44WCI 5300300791
46INSULATION
47WCI 5308037863
485303212828 Frigidaire Refrigerator Primary Clip
50HARNESS LID
51WCI 08037851
52WCI 09950610
53WCI 5306599955
545304517886 Frigidaire Refrigerator Light
55PLATE, BACKUP, LIGHT SWITCH
74WCI 5303212612
76216036601 Frigidaire Refrigerator Screw
775303212614 Frigidaire Refrigerator Clip
805303305677 Frigidaire Replacement Filter Dryer Filters
81218513300 Frigidaire Refrigerator Compressor Mount Grommet
83CLIP (3)
84ACCESS PANEL-ALMOND
85WCI 5303270367
86SUPPORT (2)
87SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88COMPRESSOR WITH ELECTRICALS
89WCI 5303017753
90WCI 5303212643
92WCI 08016583
93STRAP-BALE
95216858001 Frigidaire Refrigerator Screw
95ARETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
985304464438 Frigidaire Compressor Run Capacitor
99HARNESS CAPACITOR
