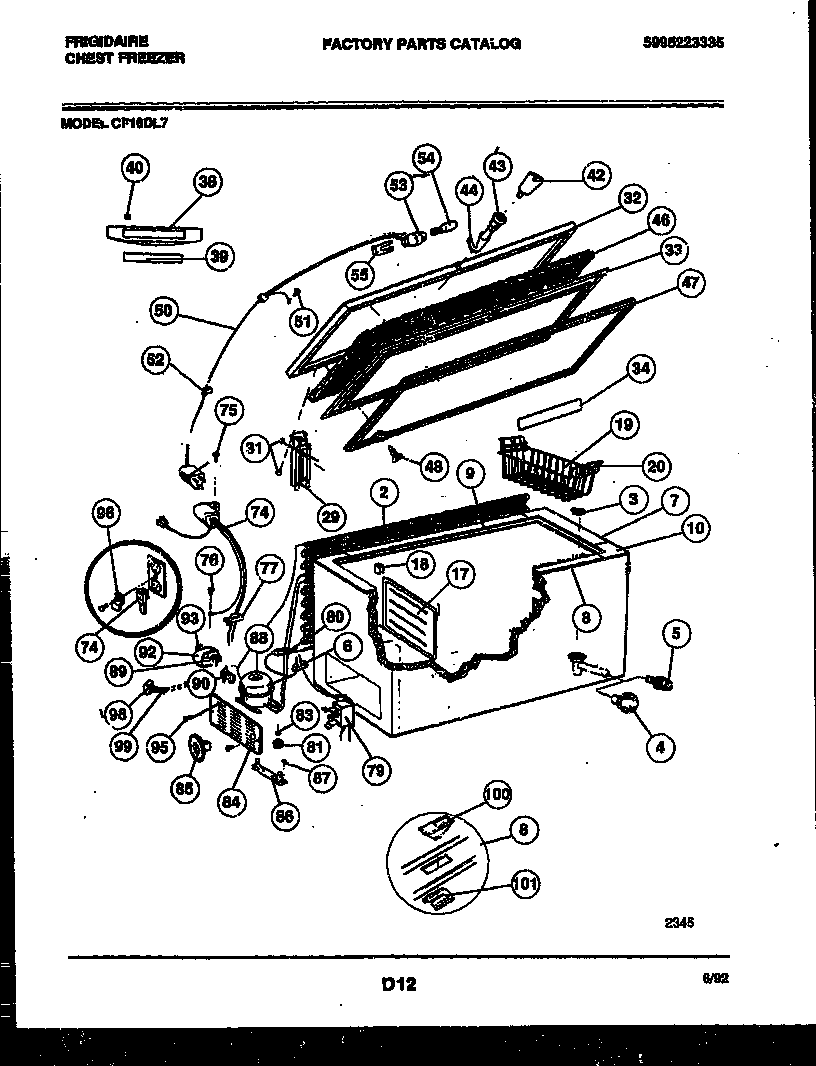

CF16DL7 02 – CHEST FREEZER PARTS

Products

Position	Product
2	WCI 5300300171
3	PLUG, DRAIN, LINER
4	WCI 5306599932
5	WCI 06594053
6	GROMMET-CONTROL TUBE
7	WCI 5303211221
9	BREAKER REAR
10	WCI 5303211222
17	WCI 216034600
18	WCI 5306594584
19	BASKET
20	HANDLE BASKET-YELLOW
29	297321900 Frigidaire Refrigerator Hinge Assembly
31	WCI 5309950602
32	WCI 216032007
33	WCI 08016794
34	LIGHT SHIELD
38	WCI 5309950054
39	WCI 08013602
40	WCI 5309948647
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI 5303925107
44	WCI 5300300791
46	INSULATION
47	WCI 5308037863
48	5303212828 Frigidaire Refrigerator Primary Clip
50	WCI 216040000
51	WCI 08037851
52	WCI 09950610
53	WCI 216039700
54	5304517886 Frigidaire Refrigerator Light
55	PLATE, BACKUP, LIGHT SWITCH
74	WCI 5303212612
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
79	5304496560 Frigidaire Refrigerator Cold Control Kit
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP, SPRING MTG
84	ACCESS PANEL-ALMOND
85	KNOB CONTROL
86	WCI 5303212615
87	SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88	COMPRESSOR WITH ELECTRICALS
89	WCI 5303017753
90	WCI 5308037789
93	5303006412 Frigidaire Refrigerator Cover Mounting Strap
95	216858001 Frigidaire Refrigerator Screw
96	RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
98	CAPACITOR
99	WCI 5303280303
100	LATCH CATCH
101	LATCH CATCH SUPPORT
