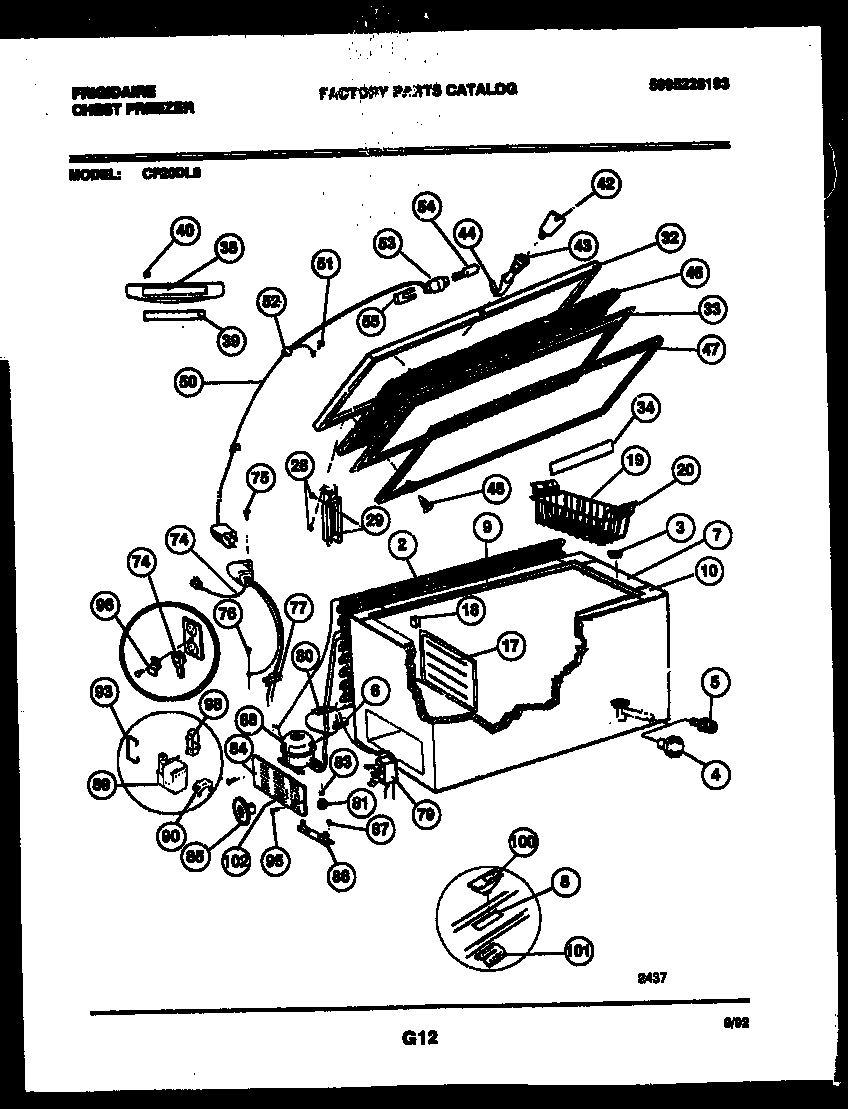

CF20DL6 02 – CHEST FREEZER PARTS

Products

Position	Product
3	PLUG, DRAIN, LINER
4	WCI 530659932
5	WCI 06594053
6	GROMMET-CONTROL TUBE
7	WCI 5303211221
9	BREAKER REAR (KIT INCLUDES BOTH FRONT & REAR BREAKERS.)
10	WCI 5303211222
17	WCI 216034600
18	WCI 5306594584
19	BASKET
20	HANDLE BASKET-YELLOW
28	WCI 5309950602
29	297321900 Frigidaire Refrigerator Hinge Assembly
32	WCI 216032200
33	WCI 216033400
34	LIGHT SHIELD
38	WCI 5309950054
39	WCI 08013602
40	WCI 5309948647
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI 5303925107
44	WCI 5300300791
46	WCI 5300128901
47	GASKET LID BROWN
48	5303212828 Frigidaire Refrigerator Primary Clip
50	WCI 216040000
51	WCI 08037851
52	WCI 09950610
53	WCI 2160397000
54	5304517886 Frigidaire Refrigerator Light
55	PLATE, BACKUP, LIGHT SWITCH
74	WCI 216089500
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
79	5304496560 Frigidaire Refrigerator Cold Control Kit
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP, SPRING MTG
84	ACCESS PANEL-ALMOND
85	KNOB CONTROL
86	WCI 5303212615
87	SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88	WCI 5303925125
89	WCI 216008900
90	WCI 5303206836
93	WCI 215012000
95	216858001 Frigidaire Refrigerator Screw
96	RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
98	CAPACITOR
100	LATCH CATCH
101	LATCH CATCH SUPPORT
102	PLUG-INDICATOR
