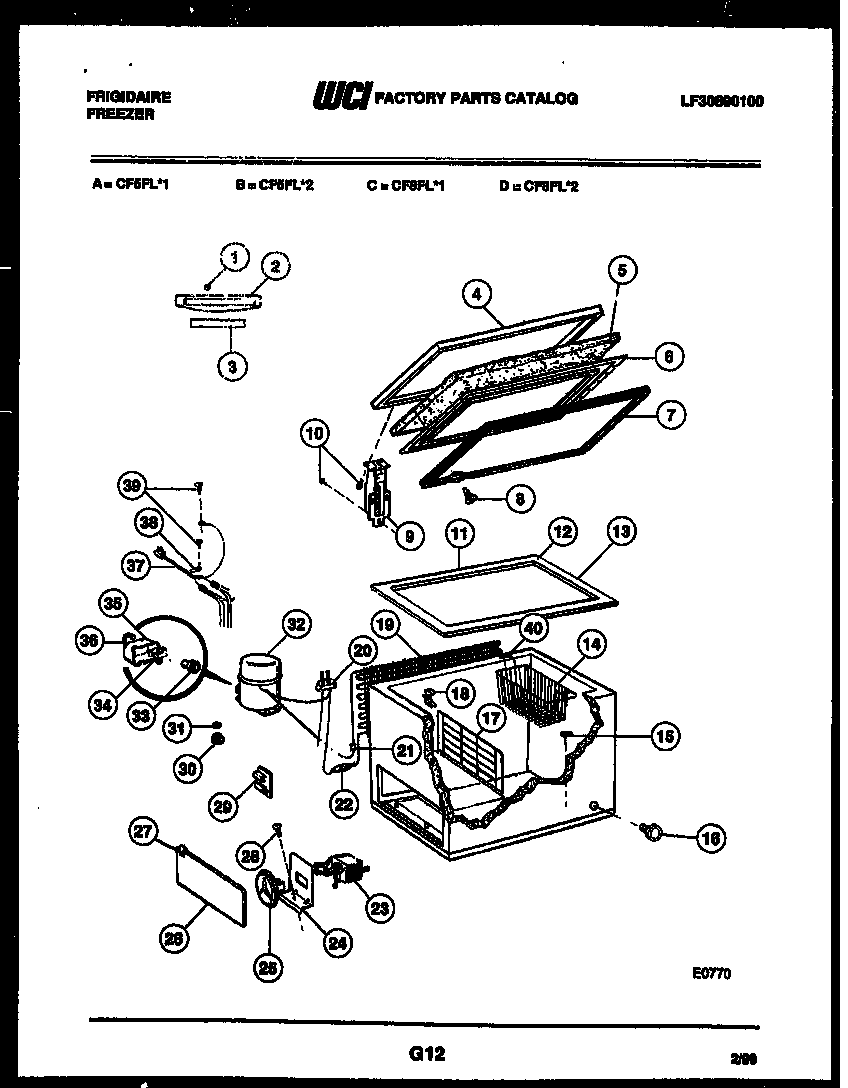

CF8FL1 02 – CHEST FREEZER PARTS

Products

Position	Product
1	FASTENER
2	WCI 09948646
3	WCI 08013602
4	WCI 3018265
5	INSULATION
6	INNER PANEL
7	216480911 Frigidaire Gasket
8	5303212828 Frigidaire Refrigerator Primary Clip
9	WCI 09948660
10	SCREW
11	WCI 3018321
12	WCI 3018271
13	WCI 3018274
14	WCI 3018277
16	WCI 06599932
17	WCI 3018263
18	SUPPORT (4)
19	WCI 09950875
21	5305878546 Frigidaire Refrigerator Bumper-Basket
22	WCI 08000127
23	5304496560 Frigidaire Refrigerator Cold Control Kit
24	WCI 09948640
25	WCI 08011881
26	WCI 08016336
27	RETAINER
28	WCI 07626998
29	WCI 06599553
30	GROMMET (4)
31	CLIP (3)
32	COMPRESSOR W/ ELECTRICALS
34	RELAY (RELAY-OVERLOAD COMBINATION.)
35	WCI 08016583
36	STRAP-BALE
37	WIRING HARNESS
38	5304455846 Frigidaire Refrigerator Clamp
39	WCI 08037851
40	WCI 08016799
