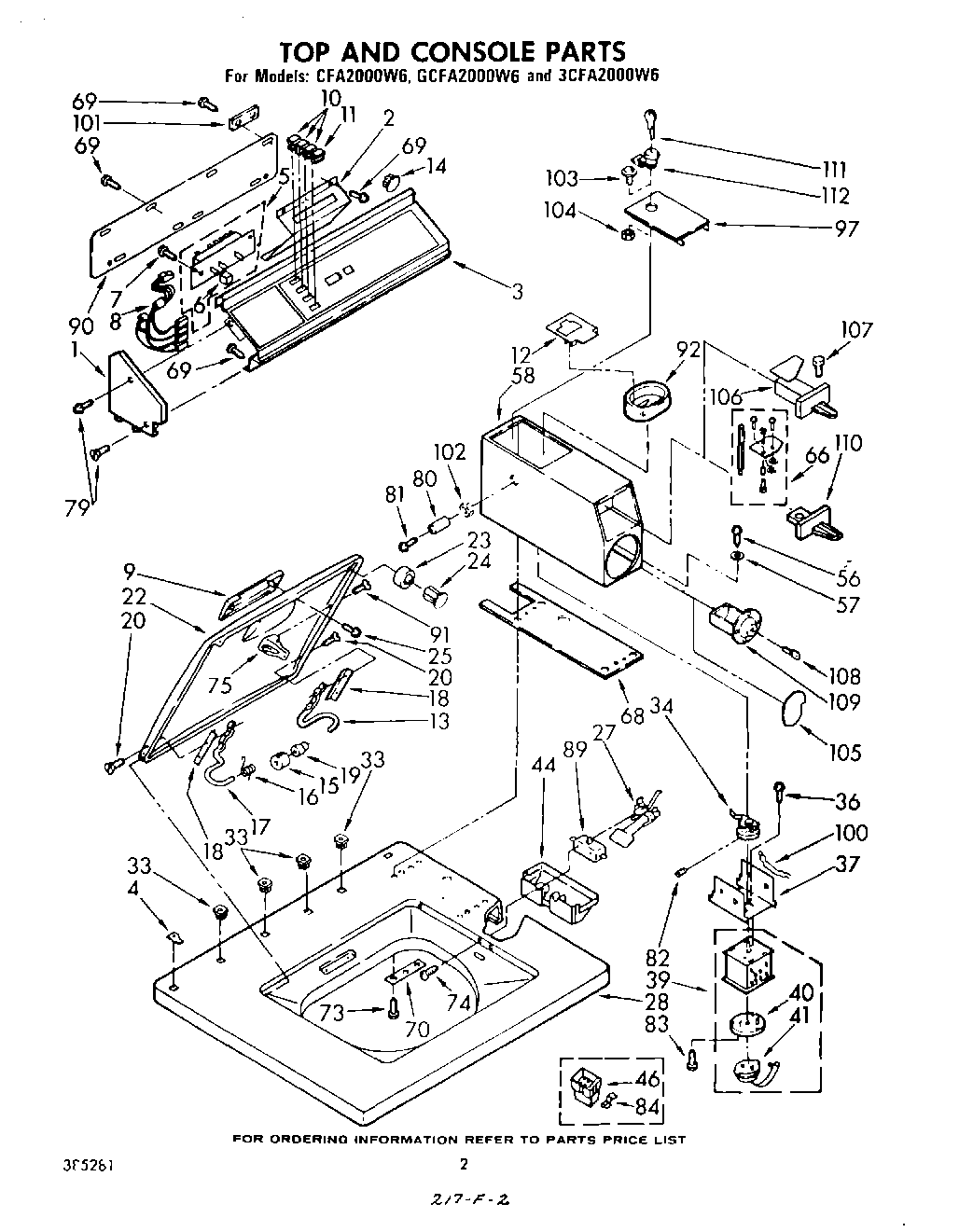

CFA2000W6 02 – TOP AND CONSOLE

CFA2000W6 02 – TOP AND CONSOLE

Written by

in

CFA2000W6 02 – TOP AND CONSOLE

Products

PositionProduct
WPL ARI21388A8
1Cap, End (L.H.)
2Bracket, Control
3Billboard, Console
4Nut, Push-In (1)
5Switch, Cycle Selector
6Pushbutton (5)
7WP965173 Whirlpool Dishwasher Screw
8Indicator Lights Assembly
8Indicator Lights Assembly (250 Volts) (Use W/3CFA2000W6)
9Handle, Lid
10Lens, Amber (3)
11Lens, Yellow (1)
12Shield, Coin Funnel
13WP91770 Whirlpool Hinge
14Plug, Button
15Bumper, Lid Hinge
16Spring, Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
22Lid (New Avocado)
22Lid (Almond)
22Lid (Golden Harvest)
22Lid (White)
23BUMPER
24WP356907 Whirlpool Rivet
25WP355214 Whirlpool Screw
27Switch Actuator Assembly
28Top (Golden Harvest)
28Top (New Avocado)
28Top (White)
28Top (Almond)
33Nut, Push-In (2)
34Clutch, Timer
36WP356418 Whirlpool Screw
37Bracket, Timer
39Timer, 60 Hz. (Use W/CFA2000W6 & GCFA2000W6)
39Timer, 50 Hz. (240 Volts) (Use W/3CFA2000W6)
40Escapement
41Motor, Timer (Used W/380081 Timer)
41Motor, Timer
44WP359231 Whirlpool Shield
46Cap, Terminal
56Bolt, 5/16-24 x 3/4 (4)
57Lockwasher, 5/16
58Meter Case Assembly (Almond)
58Meter Case Assembly (White)
58Meter Case Assembly (Golden Harvest)
58Meter Case Assembly (New Avocado)
66Slide Extension Bag Assembly
68WP3954812 Whirlpool Cushion
69SCREW
70Plate & Nut Assembly
73Screw
74Screw & Washer, Lid Switch (2)
75Strike, Lid Switch
79WP355515 Whirlpool Screw
80Stop, Lid
81Screw, 10-24 x 1-1/4
82Setscrew, 10-32
83WP90767 Whirlpool Screw
84WP90016 Whirlpool Clip
89W10820036 Whirlpool Door Switch Kit
90WPL 356441
91Screw & Washer
92WPL 355446
97W11283272 Whirlpool Washer Dryer Meter Case Access Door
97WPL 377868
97WPL 377867
97WPL 359501
100WPL 355635
101WPL 357856
102W10080180 Whirlpool Nut
103Screw & Washer
104WP90406 Whirlpool Nut
105WPL 376429
106WPL 358444
107WP8576635 Whirlpool Bolt
108WPL ARI21389A4
108WPL ARI21391A7
109WPL 37557
109WPL ARI21390A6
109WPL 814005
109WPW10208653 Whirlpool Insulation
109WPL 814004
109WPL 814006
109WPL 37559
109WPL 37560
109WPL 37737
109WPL 37803
109WPL 814001
109WPL 814002
110WPL 121212
110WPL 121010
110WPL 111115
110WPL 121030
110WPL 111111
110WPL 111010
110WPL ARI21392A1
111WPL ARI21393A1
111WPL 820
112WPL 681124
112WPL 20198
