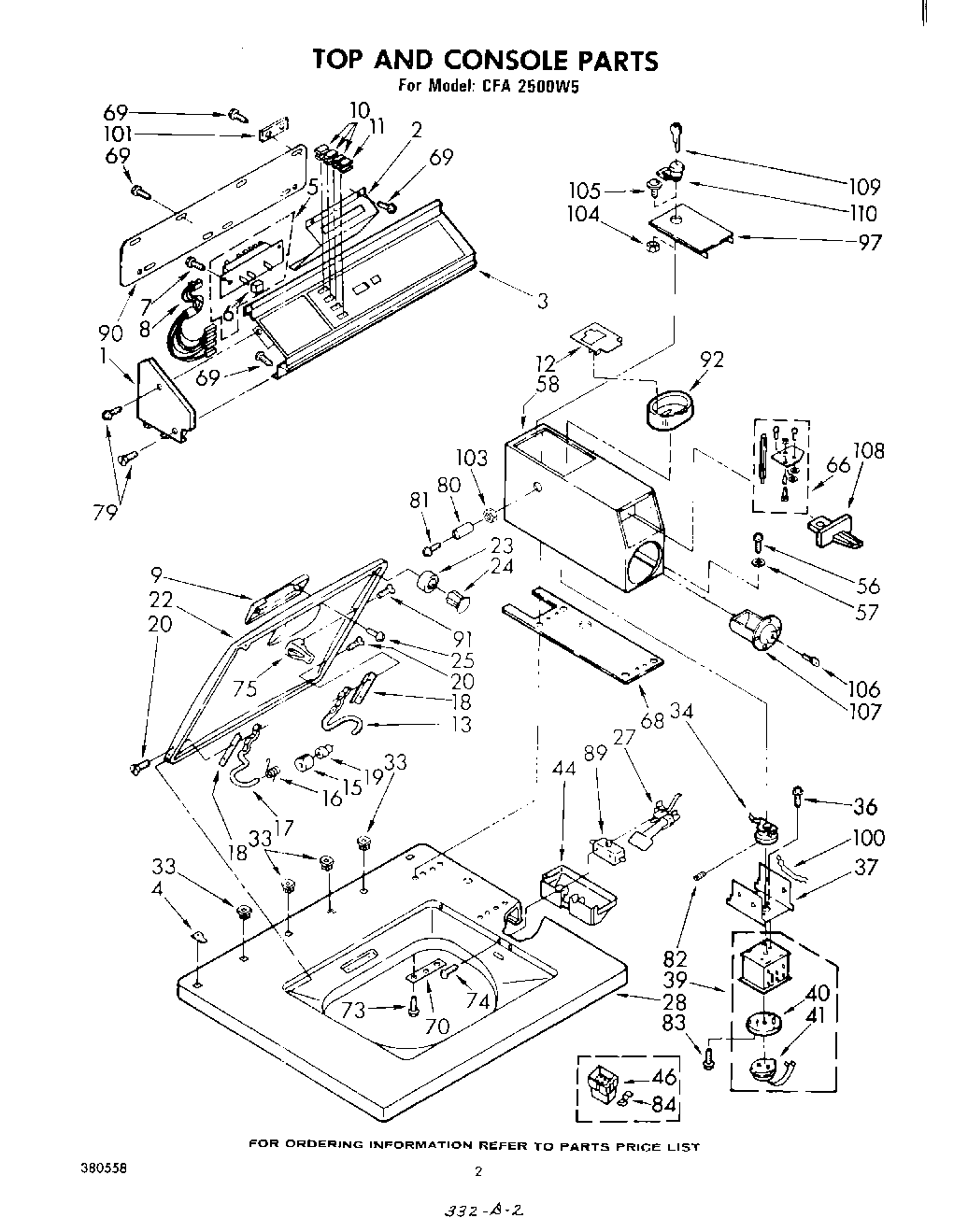

CFA2500W5 02 – TOP AND CONSOLE

CFA2500W5 02 – TOP AND CONSOLE

Written by

in

CFA2500W5 02 – TOP AND CONSOLE

Products

PositionProduct
1Cap, End (L.H.)
2Bracket, Control
3Billboard, Console
4Nut, Push-In (1)
5Switch, Cycle Selector
6Pushbutton (5)
7WP965173 Whirlpool Dishwasher Screw
8Indicator Lights Assembly
9Handle, Lid
10Lens, Amber (3)
11Lens, Yellow (1)
12Shield, Coin Funnel
13WP91770 Whirlpool Hinge
15Bumper, Lid Hinge
16Spring, Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
22Lid (Almond)
22Lid (Golden Harvest)
22Lid (New Avocado)
22Lid (White)
23BUMPER
24WP356907 Whirlpool Rivet
25WP355214 Whirlpool Screw
27Switch Actuator Assembly
28Top (New Avocado)
28Top (Almond)
28Top (White)
28Top (Golden Harvest)
33Nut, Push-In (2)
34Clutch, Timer
36WP356418 Whirlpool Screw
37Bracket, Timer
39Timer, 60 Hz.
40Escapement
41Motor, Timer
44WP359231 Whirlpool Shield
46Cap, Terminal
56Bolt, 5/16-24 x 3/4 (4)
57Lockwasher, 5/16
58Meter Case Assembly (New Avocado)
58Meter Case Assembly (Golden Harvest)
58Meter Case Assembly (White)
58Meter Case Assembly (Almond)
66Slide Extension Bag Assembly
68WP3954812 Whirlpool Cushion
69SCREW
70Plate & Nut Assembly
73Screw
74Screw & Washer, Lid Switch (2)
75Strike, Lid Switch
79WP355515 Whirlpool Screw
80Stop, Lid
81Screw, 10-24 x 1-1/4
82Setscrew, 10-32
83WP90767 Whirlpool Screw
84WP90016 Whirlpool Clip
89W10820036 Whirlpool Door Switch Kit
90WPL 356441
91Screw & Washer
92WPL 355446
97WPL 377868
97W11283272 Whirlpool Washer Dryer Meter Case Access Door
97WPL 377867
97WPL 359501
100WPL 355635
101WPL 357856
103W10080180 Whirlpool Nut
104WP90406 Whirlpool Nut
105Screw & Washer
106WPL ARI21394A5
106WPL ARI21397A5
107WPL 814004
107WPL 814002
107WPL 814001
107WPL 37803
107WPL 37737
107WPL 37560
107WPL 37559
107WPL 37557
107WPW10208653 Whirlpool Insulation
107WPL 814005
107WPL 814006
107WPL ARI21395A1
108WPL ARI21398A9
108WPL ARI21396A9
108WPL 121212
108WPL 121030
108WPL 121010
108WPL 111115
108WPL 111111
108WPL 111010
109WPL 820
109WPL ARI21399A8
110WPL 20198
110WPL 681124
