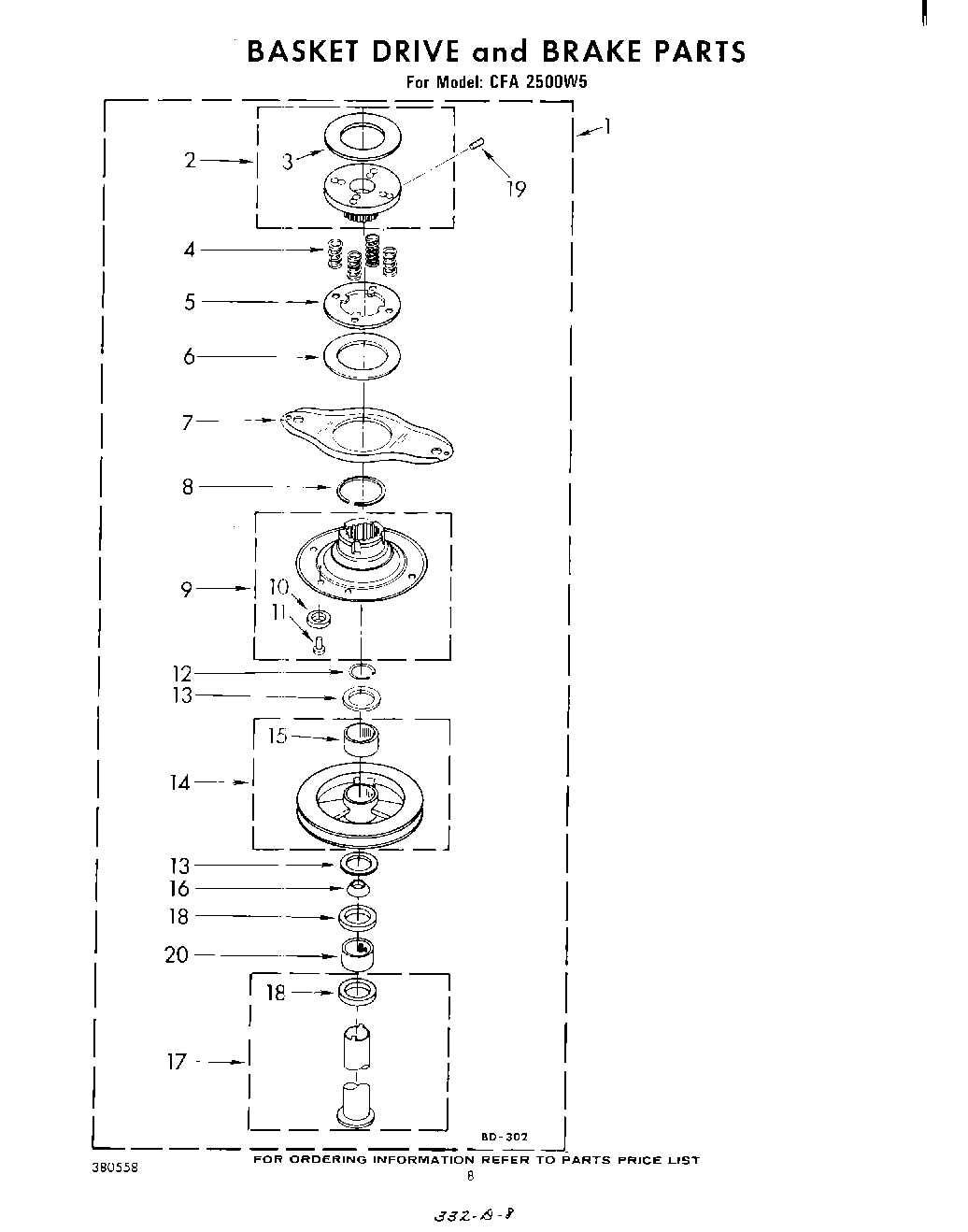

CFA2500W5 07 – BASKET DRIVE

Products

Position	Product
1	Basket Drive & Brake (Refer To Page 9 For Further Breakdown)
2	Drum, Brake (Upper)
3	Lining, Basket Brake (Upper)
4	Spring, Basket Drive (Orange) (4)
5	Drum, Brake (Lower)
6	Lining, Basket Brake (Lower)
7	Yoke, Brake
8	Ring, Snap
9	Plate & Lining, Basket Drive
10	Lining, Basket Drive (Set of 3)
11	Eyelet (3)
12	WPW10083200 Whirlpool Wire Ring
13	Washer, Thrust (2)
14	Pulley, Basket Drive
15	Bearing, Drive Pulley
16	WP91939 Whirlpool Shaft Seal
17	Drive Tube & Bearing, Basket
18	WP356427 Whirlpool Shaft Seal
19	Set Screw, 5/16-18X 13/16
20	Spacer, Drive Tube
